Description

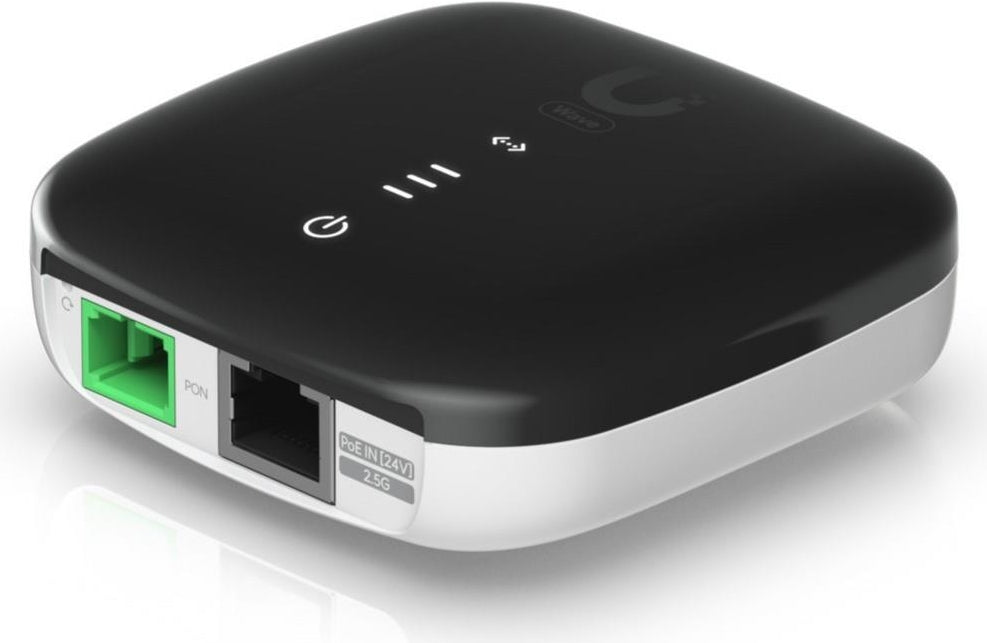

The Ubiquiti WaveFiber ONU is an optical network unit engineered for long-range fiber connections up to 20 km at a 1490 nm wavelength. It delivers a maximum downlink speed of 2488 Mbit/s over fiber and supports 1000 and 2500 Mbit/s Ethernet LAN via an RJ-45 port. The unit accepts 24 V DC input or Power over Ethernet with a maximum power consumption of 5 W and provides VLAN functionality for network segmentation. Its compact black and white polycarbonate housing weighs only 78 g, includes SC/APC and LAN ports, a reset button, and LED indicators for LAN, dust and status, and operates between −15 °C and 45 °C under CE, FCC and IC certifications.
Key Features
- 2488 Mbit/s fiber downlink speed
- 1000 & 2500 Mbit/s Ethernet LAN support
- 20 km maximum transmission range
- 1490 nm operating wavelength
- 24 V DC input and PoE support
- 5 W power consumption
Specifications
Brand: Ubiquiti
Product Type: optical network unit
Color: Black and white
Power Source: 24 V DC / PoE
Power (W): 5
Weight (g): 78
Length (mm): 76.5
Ports: SC/APC, RJ-45
Vlan Support: true
Max Transmission Distance Km: 20
Wavelength Nm: 1490
Downlink Speed Mbit S: 2488
Lan Speeds Mbit S: 1000, 2500
Operating Temperature Min C: -15
Operating Temperature Max C: 45
Certifications: CE, FCC, IC
LED Indicators: LAN, Dust, Status
€87,00
