Description

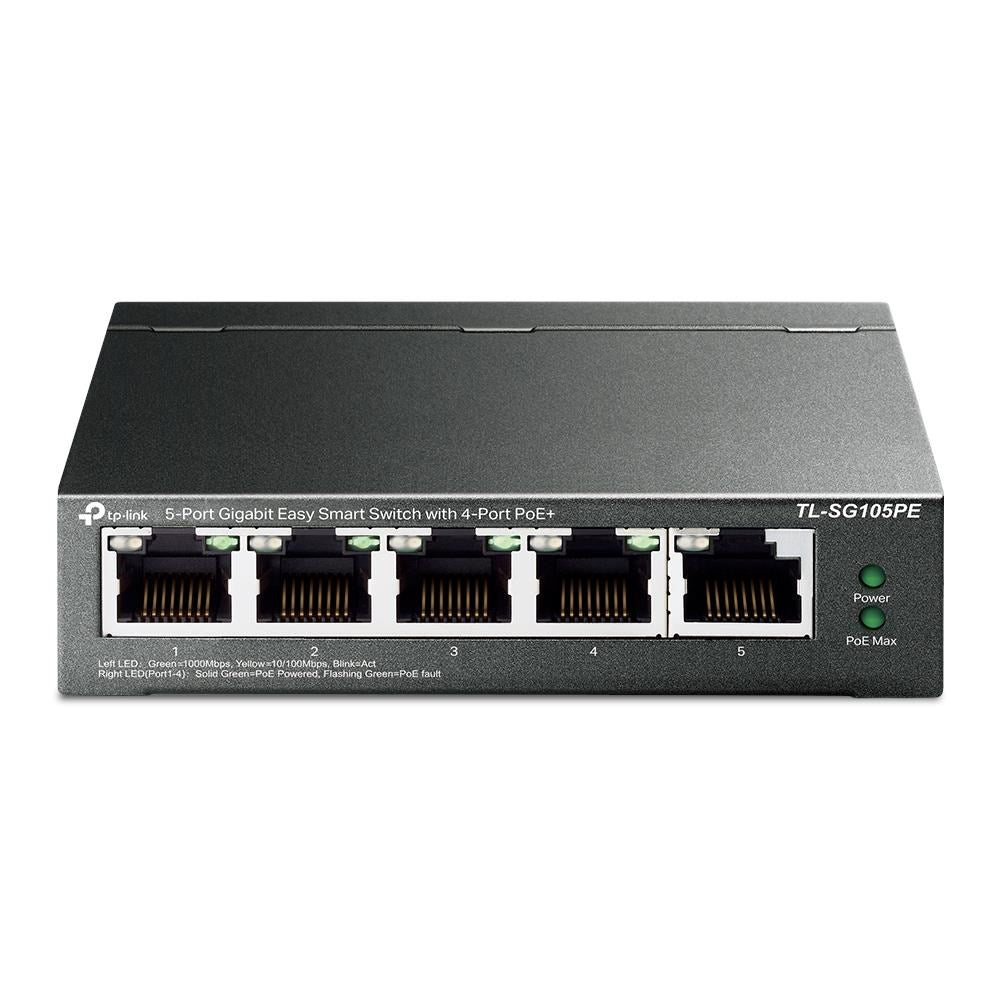

The TP-Link TL-SG105PE is a 5-Port Gigabit Easy Smart PoE Switch that includes 4 PoE+ ports, providing an efficient solution for powering devices such as IP cameras and wireless access points. With a maximum power consumption of 75.16 W, this switch supports a total power over Ethernet (PoE) budget of 65 W, allowing each of the 4 PoE+ ports to deliver up to 30 W. It features advanced management capabilities, including IGMP snooping, loop protection, broadcast storm control, and VLAN support, accommodating complex network architectures. Designed with a fanless operation, it operates silently while efficiently dissipating heat at 256.3 BTU/h. This switch also supports a range of networking standards, including IEEE 802.3af and IEEE 802.3at. The device dimensions are 130 mm in length, 120 mm in width, and 195 mm in height, with a weight of 770 g.
Key Features
- 5 Gigabit Ethernet ports
- 4 PoE+ ports with 30 W power per port
- Maximum power consumption of 75.16 W
- Managed switch with advanced features
- Fanless design for silent operation
- Supports IEEE 802.3af and IEEE 802.3at standards
Specifications
Brand: TP-LINK
Model Number: TL-SG105PE
Product Type: Switch
Weight (g): 770
Width (mm): 120
Height (mm): 195
Depth (mm): 130
Power Source: DC
Input Voltage: 53.5
Input Current: 1.31
Power Consumption Max: 75.16
Igmp Snooping: true
Loop Protection: true
Operating Relative Humidity H H: 10 - 90%
Storage Relative Humidity H H: 5 - 95%
Operating Temperature T T: 0 - 40 °C
Storage Temperature T T: -40 - 70 °C
Switch Type: Managed
Switch Layer: L2
Web Based Management: true
Quality Of Service Qos Support: true
Basic Switching Rj 45 Ethernet Ports Quantity: 5
Switching Capacity: 10 Gbit/s
Packet Buffer Memory: 1 MB
Mac Address Table: 2000 entries
Jumbo Frames Support: true
Forwarding Rate: 7.44 Mpps
Number Of Queues: 4
Store And Forward: true
Vlan Support: true
Auto Mdi Mdi X: true
Link Aggregation: true
Copper Ethernet Cabling Technology: 1000BASE-T, 100BASE-TX, 10BASE-T, 100BASE-FX
HS Code: 85176990
€72,88
