Description

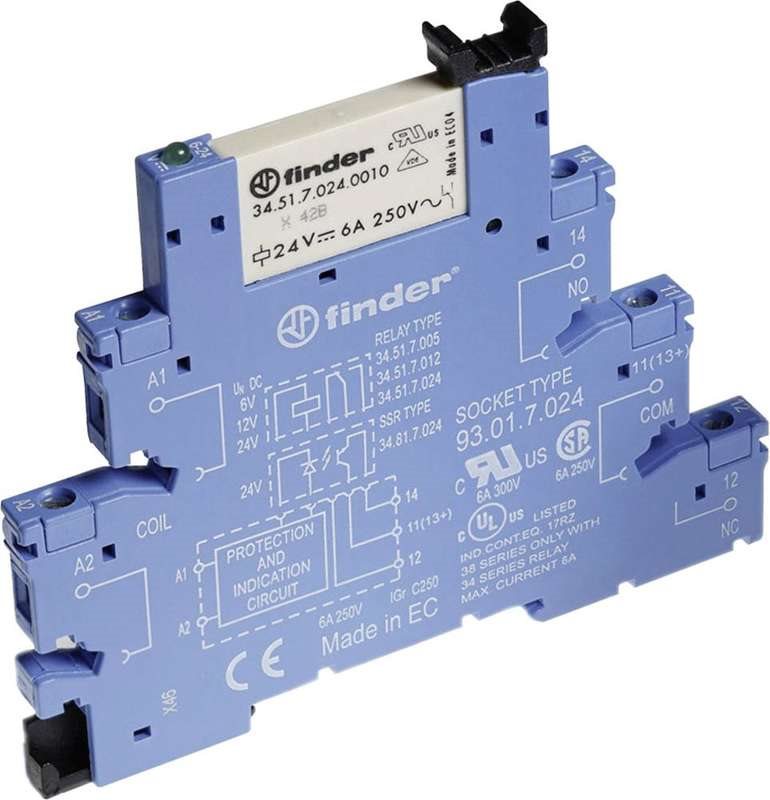

The Finder 38.61.7.024.0050 relay module is a 24 V DC block relay featuring a single changeover (RT) contact rated for 6 A and a switching capacity of 1500 VA. It uses traction spring terminals for secure connections and mounts on standard DIN rails. With IP20 protection and a mechanical life of 10 million cycles, it complies with VDE 0160/EN 50178 safety standards. The compact unit measures 76 mm high, 6.2 mm wide and 93.6 mm deep.
Key Features
- 24 V DC nominal voltage
- 6 A max switching current
- 1500 VA switching capacity
- Traction spring terminal connection
- IP20 protection rating
- 10 000 000 mechanical life cycles
Specifications
Brand: FINDER
Model Number: 38.61.7.024.0050
Product Type: Block relais
Nominal Voltage Dc: 24
Switching Current A: 6
Switching Capacity Va: 1500
Connection: traction spring terminals
IP Rating: IP20
Height (mm): 76
Width (mm): 6.2
Length (mm): 93.6
Mechanical Life Cycles: 10000000
Temperature Max C: 70
Temperature Min C: -40
Switching Voltage Max V: 400
Protection Relay: RT II
Contact Material: silver alloy
€61,81
