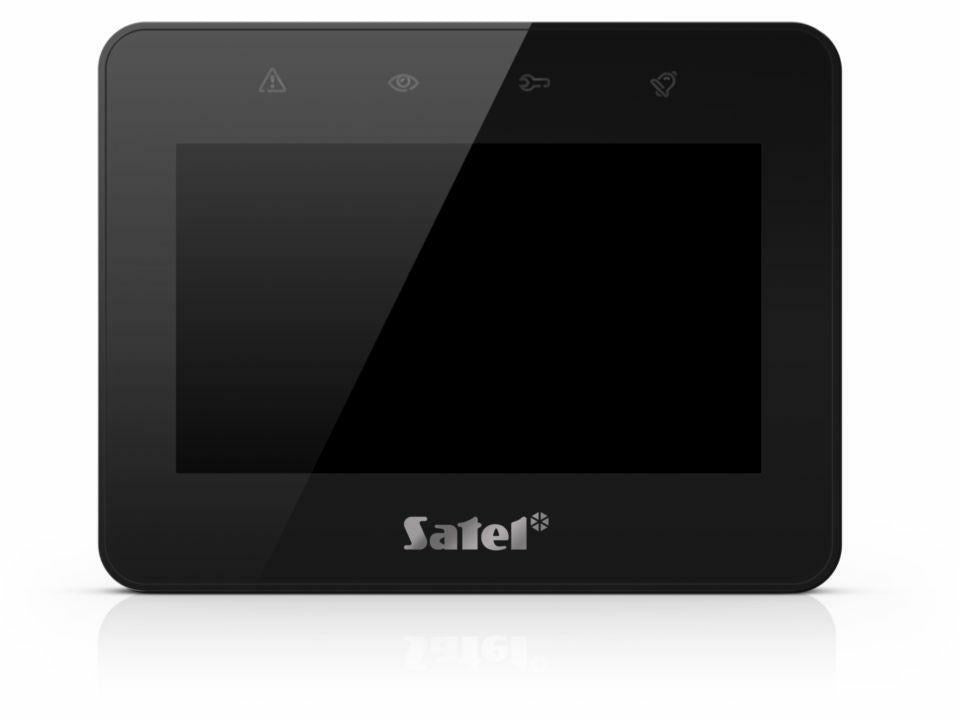

4.3" black touchscreen keypad INT-TSG2R-B Satel Product code: INT-TSG2R-B. The INT-TSG2R keypad is used to operate and program INTEGRA, INTEGRA Plus, VERSA and PERFECTA 64 M control panels. It is an ideal solution for people who expect convenience during everyday control of the alarm system and building automation elements - including the KNX system. The combination of small size and universal design makes this device fit perfectly into both modern and traditionally arranged interiors. Features: 4.3" capacitive glass touchscreen with gesture support; 480x272 resolution, displaying 16.7 million colors (true color); multi-level graphic interface adapted to the user's needs; up to 24 additional screens; possibility of configuring and adapting interface screens to the user's needs; over 20 ready-made graphic themes with the option of creating your own composition; widgets enabling keypad operation, control of the alarm system and automation devices connected to the alarm control panel; system control using MACRO commands that trigger a number of various functions in the control panel (including building automation); ability to quickly trigger PANIC, FIRE, HELP alarms; compatibility with INTEGRA, INTEGRA Plus (INTEGRA Firmware 1.21 or newer), VERSA (VERSA Firmware 1.10 or newer) and PERFECTA 64 M control panels; screen saver with the option of displaying the clock, date, status of system components (partitions, zones, outputs), temperature (INTEGRA, INTEGRA Plus, PERFECTA 64 M); ability to display a slide show (photo frame function); LEDs indicating the current system status placed above the screen; built-in MIFARE 13.56 MHz proximity card reader (supported only by INTEGRA and INTEGRA Plus control panels): ; Ultralight CSN/SSN; Classic CSN/SSN/MSN; DESFire (EV1 / EV2 / EV3) CSN/MSN; 2 programmable wired zones (supported only by INTEGRA and INTEGRA Plus control panels); support for NO and NC type detectors as well as roller shutter and vibration detectors; support for EOL, 2EOL and 3EOL configurations (3EOL when used with INTEGRA Plus control panels); programming of EOL resistor values; built-in piezoelectric transducer for audible signaling; adjustable signal volume; adjustable screen backlight with day/night division; built-in microSD memory card reader (storing photos for photo frames, additional screen tapes); tamper contact reacts to opening the housing and tearing it off the wall; available in white (INT-TSG2R-W) and black (INT-TSG2R-B); Technical data. Supply voltage (15%) 12 V DC; Operating temperature range -10C+55C; Standby current consumption 115 mA; Maximum current consumption 165 mA; Weight 165 g; Maximum humidity 933%; Environmental class according to EN50130-5 II; Security level according to EN 50131 Grade 3; Supported memory cards microSD, micro SDHC; Housing dimensions (width x height x thickness) 120 x 92 x 14 mm; Reader operating frequency 13.553..13.567 MHz; Reading range for MC-DF3-2 encrypted cards up to 20 mm; .
€292,21
