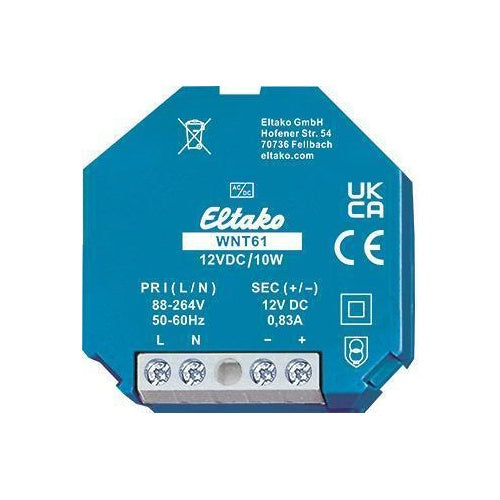

Wide-range switching power supplies WNT61, rated power 10 W, standby loss only 0.1 watts. For panel mounting. 45 mm long, 45 mm wide, 33 mm deep. Wide-range input voltage 88-264 V AC (110 V -20% to 240 V +10%). Efficiency 86%. Stabilized output voltage 1%, low ripple. Short-circuit proof. Overload and overtemperature protection by shutdown with automatic restart after fault clearance (auto-recovery function). Supply voltage type AC 1. Output voltage 12 - 12 V Max. output current 1 1 A Adjustable output voltage no Nominal output voltage 1 12 V Nominal output current 1 1 A Short-circuit proof yes Rated supply voltage AC 50 Hz 110 - 240 V Regulated output voltage yes Power output 10 W Stabilized yes Electrical connection type Screw terminal DIN rail mounting possible no Wall mounting possible yes Suitable for DIN rail installation no Installation width 45 - Installation material Meter screw/distribution DIN rail installation device - Eltako WNT61-12VDC/10W Wide range switching power supply 61000264.
€65,55
