Description

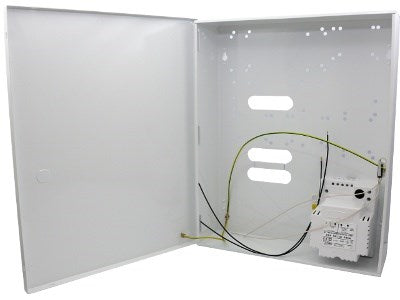

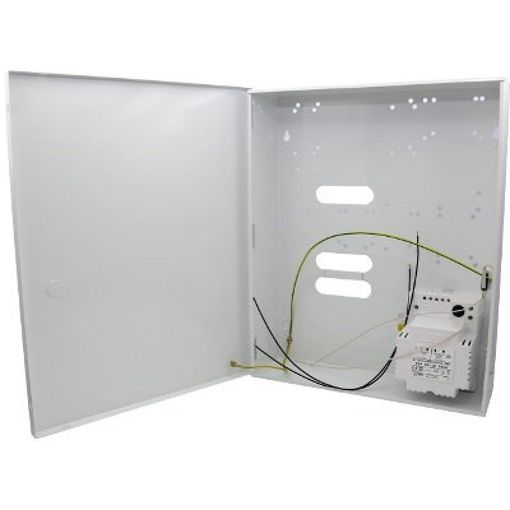

The Pulsar AWO256/INTEGRA (model 4061) is a robust alarm enclosure manufactured in Poland with CE and RoHS certification. It measures 325×400×98 mm and weighs 3.65 kg, providing space for lead-acid dry batteries up to 17 Ah/12 V or 7 Ah/12 V. A microswitch offers tamper protection, while a built-in AC power supply delivers 20 V AC at up to 2.8 A. The steel housing installs easily with four screws and an 8 mm wall clearance, and it is compatible with CA-64 and INTEGRA series control panels.
Key Features
- Dimensions 325×400×98 mm
- Weight 3.65 kg
- Supports 17 Ah/12 V and 7 Ah/12 V batteries
- Tamper protection via microswitch
- 20 V AC output at 2.8 A max
- Compatible with CA-64 and INTEGRA series
Specifications
Brand: Pulsar
Model Number: AWO256/INTEGRA (4061)
Product Type: alarm enclosure
Width (mm): 400
Height (mm): 325
Depth (mm): 98
Weight (g): 3650
Ce Certified: true
Rohs Compliant: true
Tamper Protection: microswitch
Power Output V Ac: 20
Power Output Current A: 2.8
Supported Battery Capacities Ah: 17 Ah/12 V, 7 Ah/12 V
Compatible With: CA-64 and INTEGRA series control panels
Installation Wall Distance Mm: 8
€82,38
