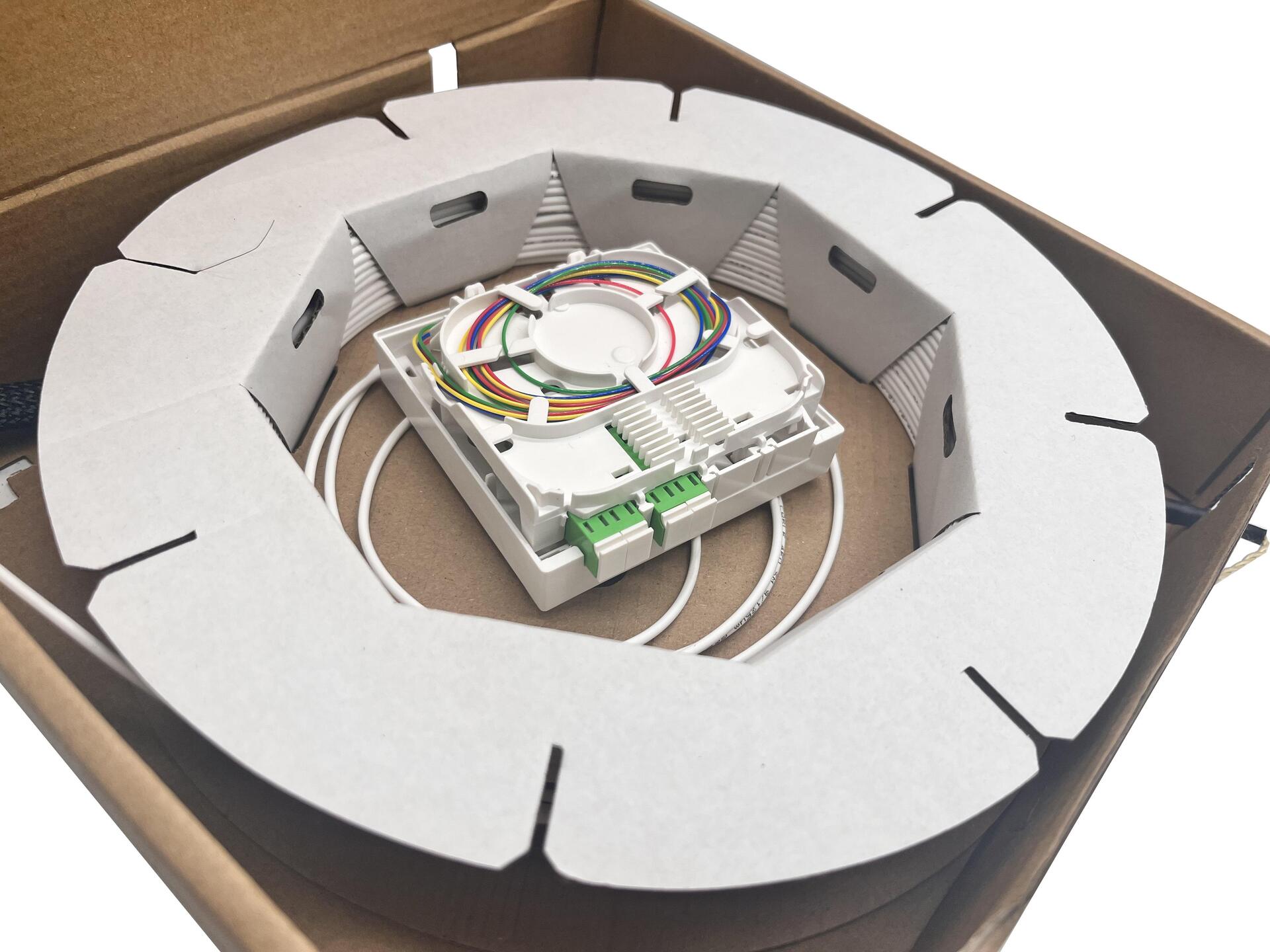

Helos OS2 4-fiber FTTH connection set, pre-assembled on both sides with 4 LC-APC connectors each. The compact FTTH connection set is pre-assembled on both sides, eliminating the need for time-consuming connector installation. This setup is ideal for rapid, high-speed fiber optic connections within a building. Available in various lengths and versions. Reduced installation time: The fiber optic cable is quickly laid in the right place thanks to the one-sided insertion aid. Laborious splicing of fiber optic connectors is no longer necessary. Technical details: - 4 core installation cable OS2 9/125, G657.A2 LSZH - Fire protection class: CPR B2ca s1a d0.a1 - Stress protection - Adapter type: 2 x LC/APC Duplex - Connector type: 8 x LC/APC - Cable construction: I/A-V(Q(ZN)H - Standards: IEC 61300-3-4, IEC 61300-3-6 - Cable: G657.A2 4C 250um Yellow Green Blue Red with KEVLAR jacket - OD LSZH: 2.2mm - Color: white Technical details: - Junction box with 2 LC/APC Duplex couplers - Laser protection - Wall mounting - RoHS 3.0 and REACH compliant - Temperature: -40 to +75 - Max 8 cores (crimp type) - ABS material UL94V2 - Color: White - Dimensions: 80 x 80 x 28 mm.
€64,24
