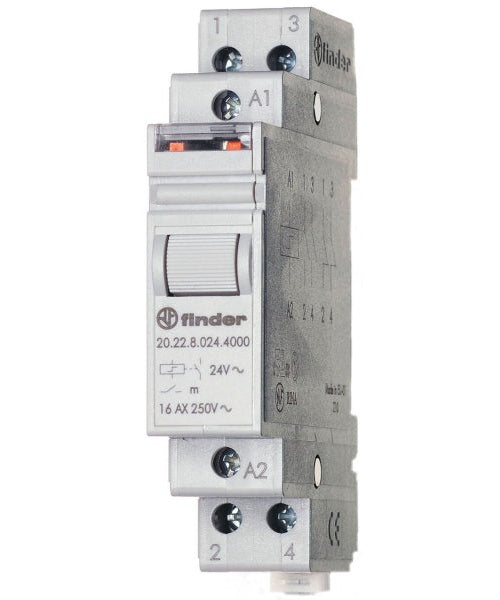

Impulse switch for 35 mm rail mounting, 2 normally open contacts for 16 A / 250 V AC, contact material AgSnO2, max. switching capacities at 230 V AC: AC1 4000 VA, AC15 750 VA, incandescent and halogen lamps 2000 W, compensated fluorescent lamps 750 W, uncompensated fluorescent lamps 1000 W, energy-saving lamps 400 W, LED (230 V AC) 400 W, low-voltage halogen lamps or LEDs with electronic ballast 400 W, low-voltage halogen lamps or LEDs with conventional ballast 800 W. Coil data 230 V AC, 6.5 VA, 2500 ohms, width 17.5 mm, switching sequence: off off / on on / off on / on off, test button and mechanical Switch position indicator, relay protection class: IP 20.
€70,80
