Description

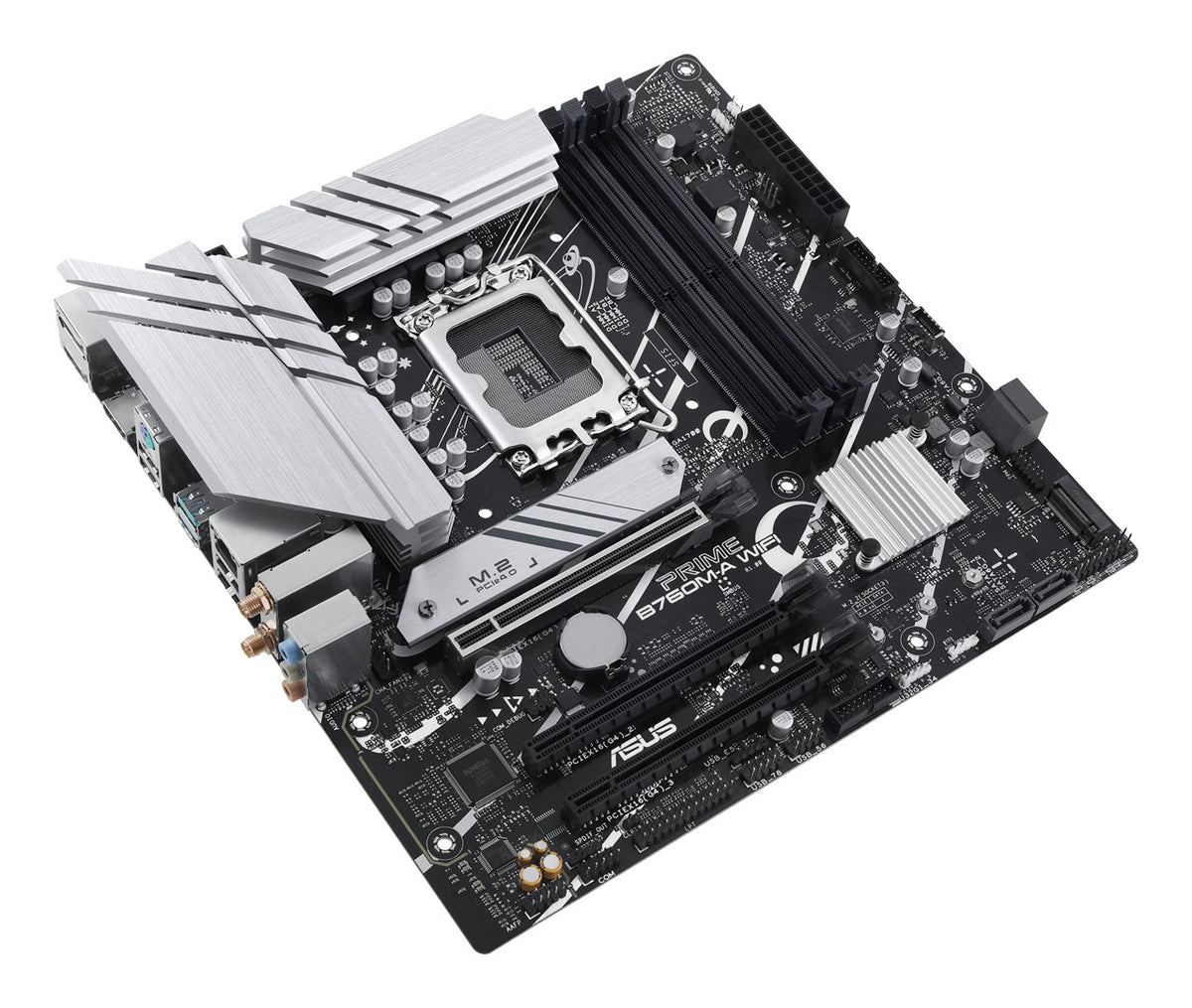

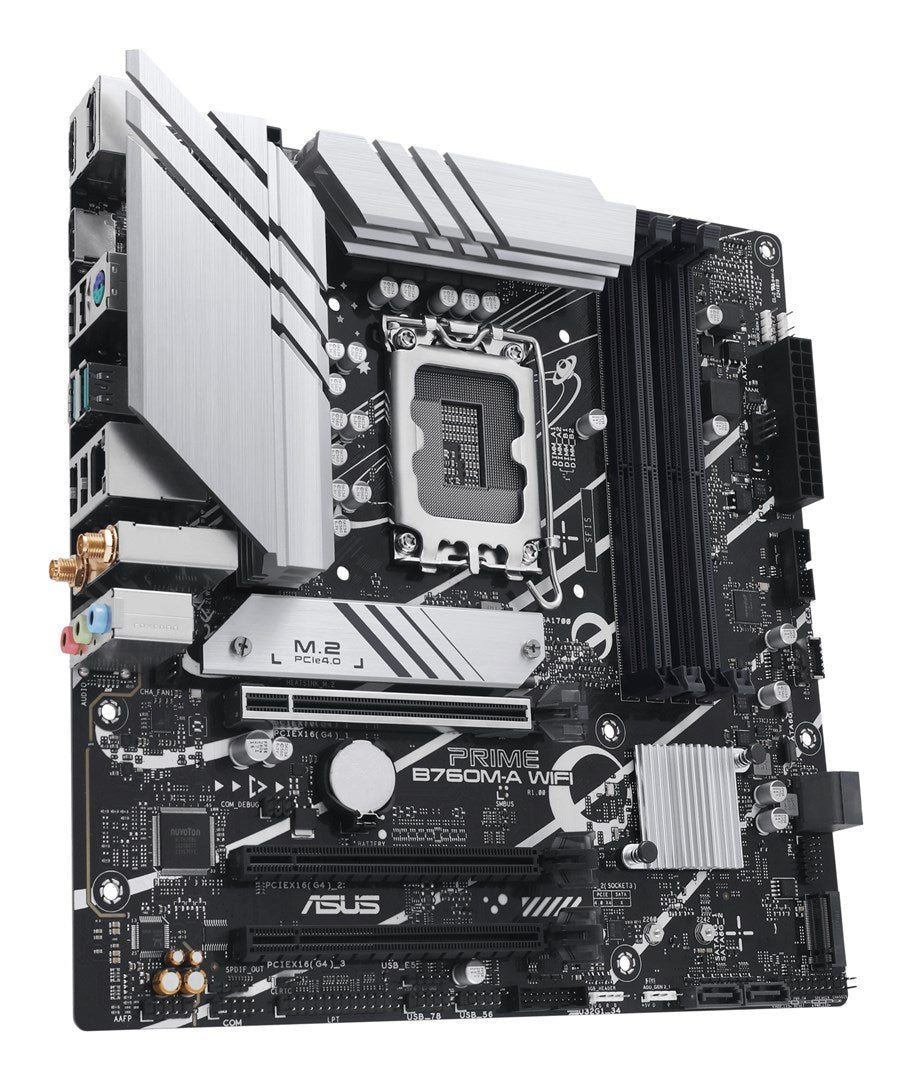

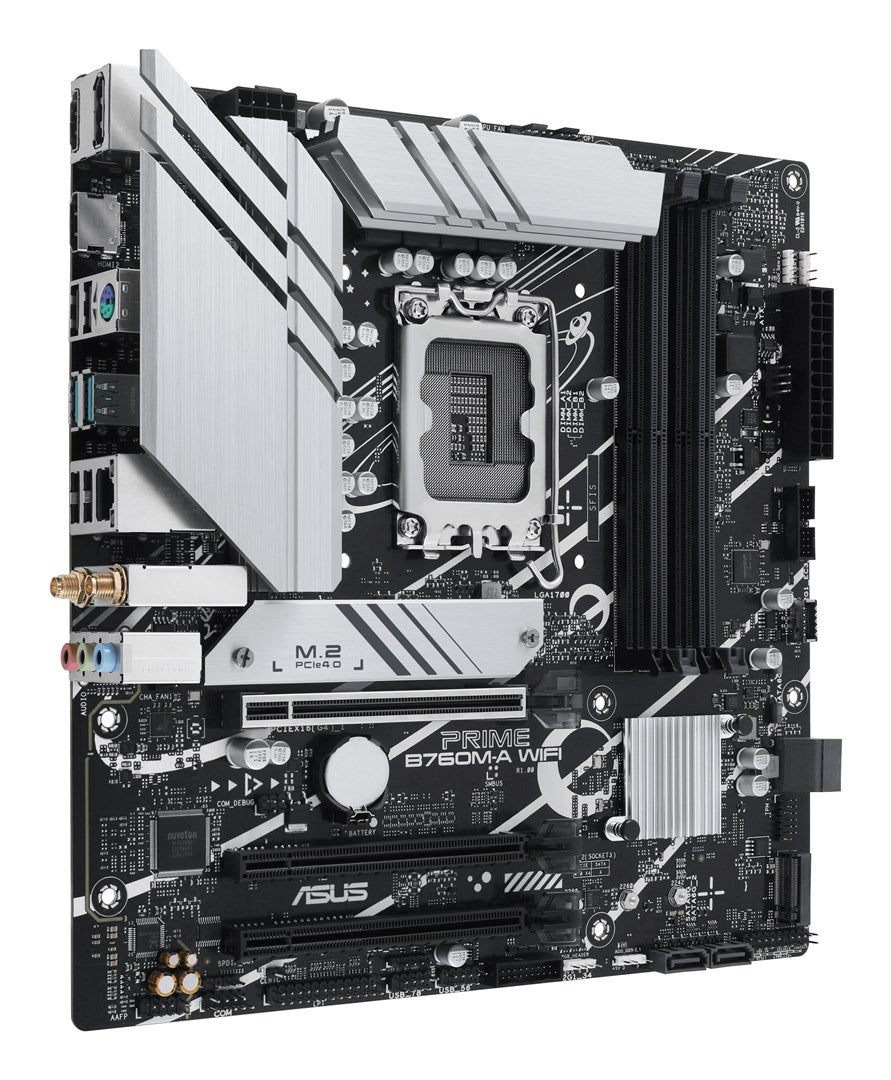

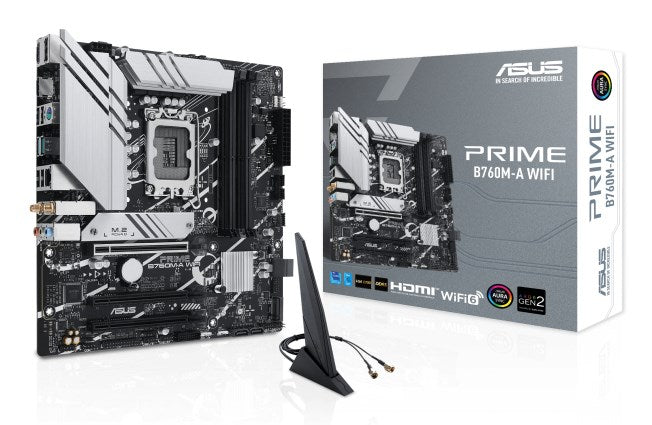

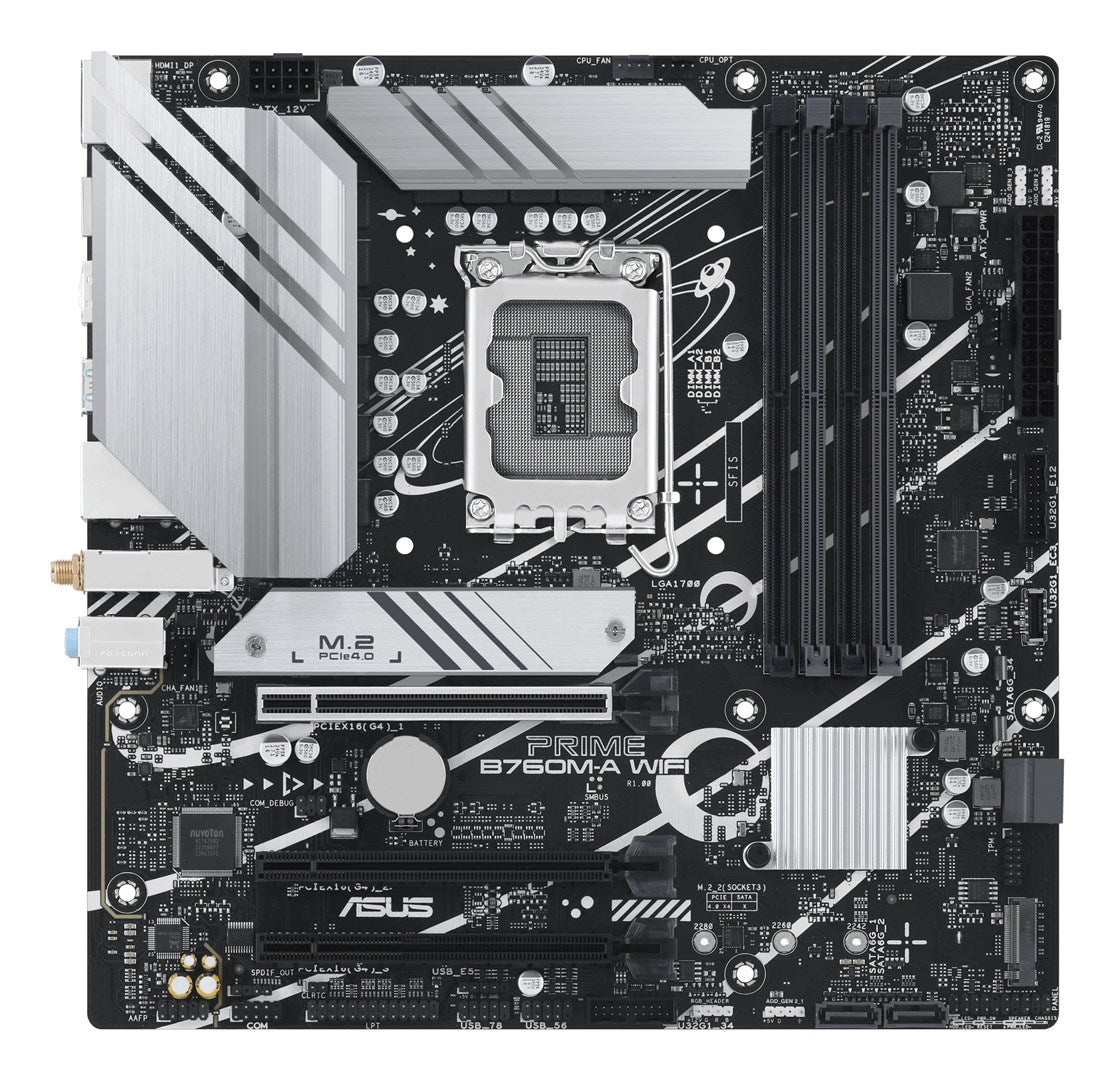

The ASUS PRIME B760M-A WIFI is a high-performance motherboard equipped with the Intel B760 chipset, designed for micro ATX form factors. It features an LGA 1700 processor socket, compatible with Intel® Core™ i7, i9, i5, i3, Pentium® Gold, and Celeron® series processors. This motherboard supports up to 128 GB of DDR5 memory across four DIMM slots, with maximum memory clock speeds of up to 7200 MHz. Connectivity options include Gigabit Ethernet, Bluetooth 5.2, and Wi-Fi 6, supporting a variety of Wi-Fi standards from 802.11b to 802.11ax. It provides three USB 3.2 Gen 1 ports, four SATA III connectors for storage, and includes 7.1 audio channels powered by a high-quality audio chipset. With dual-channel memory architecture and a passive cooling system, the ASUS PRIME B760M-A WIFI offers robust performance for any PC build.
Key Features
- Intel B760 chipset
- LGA 1700 processor socket
- Supports Intel® Core™ processors
- 4 DIMM slots for DDR5 memory
- Maximum memory support of 128 GB
- Wi-Fi 6 support
- Bluetooth 5.2
- 3 USB 3.2 Gen 1 ports
- 7.1 audio channel support
Specifications
Brand: ASUS
Model Number: 90MB1EL0-M0EAY0
Product Type: Motherboard
Weight (g): 1300
Width (mm): 244
Height (mm): 270
Depth (mm): 60
Processor Socket: LGA 1700
Motherboard Chipset: Intel B760
Motherboard Form Factor: micro ATX
Maximum Internal Memory: 128
Memory Slots Type: DIMM
Number Of Memory Slots: 4
Supported Memory Types: DDR5-SDRAM
Supported Memory Clock Speed Max: 7200
Memory Channels: Dual-channel
Audio Output Channels: 7.1 channels
Ethernet Lan: true
Usb 2.0 Connectors: 3
Sata Iii Connectors: 4
Atx Power Connector: 24-pin
Front Panel Connector: true
Bios Type: UEFI AMI
Raidsupport: true
Number Of Storage Drives Supported: 6
Number Of Hdds Supported: 4
Supported Storage Drive Interfaces: M.2, SATA III
€181,77
