Description

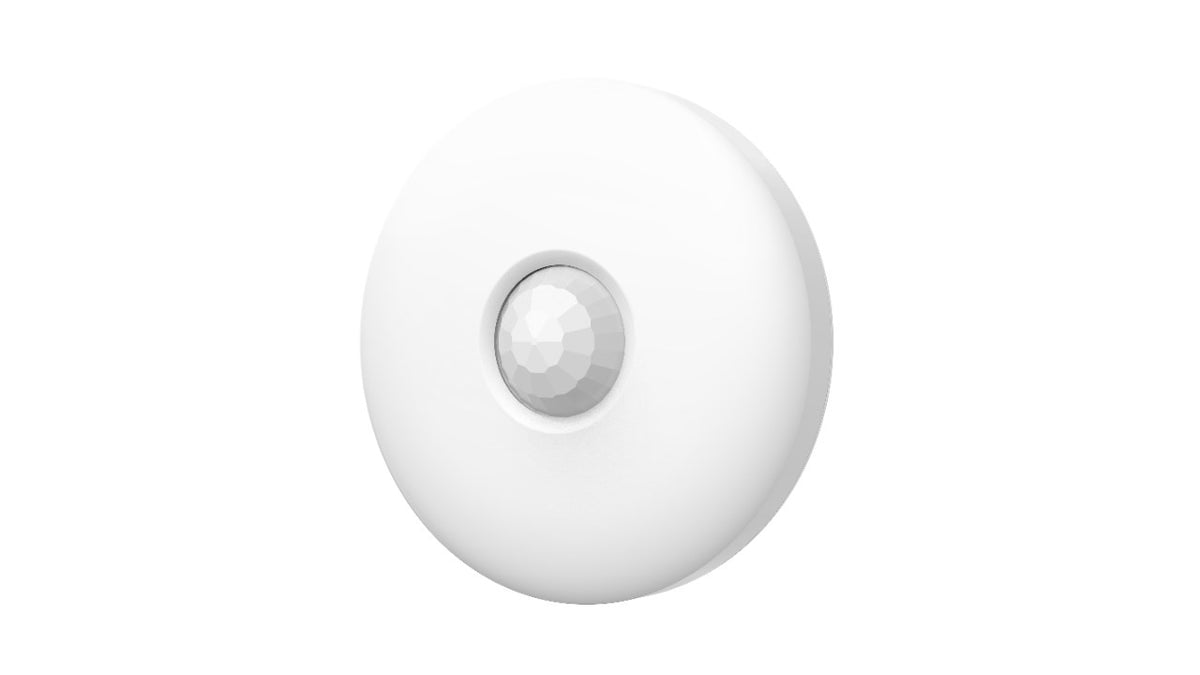

The Hikvision DS-PDCL12DT-EG2 is a wired ceiling-installed motion detector that utilizes both Passive Infrared (PIR) and Microwave sensors. This product features an installation height range from 2.4 m to 4 m. It measures 60 mm in width, 255 mm in length, and 210 mm in height, with a weight of 884 grams. Designed for indoor use, it operates at an input voltage between 9 to 16 V with a power consumption of 100 mA. The detection angle is 360°, providing comprehensive monitoring. The device features LED indicators and has a detection distance of 12 meters, functioning effectively across a temperature range of -10 to 55 °C.
Key Features
- Wired ceiling-installed motion detector
- Passive infrared (PIR) and Microwave sensor
- Detection distance of 12 m
- 360° detection angle
- Weight of 884 g
- Dimensions: 60 mm width, 255 mm length, 210 mm height
- Input voltage 9 - 16 V
- Power consumption 100 mA
- LED indicators
- Indoor placement
- Installation height min 2.4 m, max 4.0 m
Specifications
Brand: Hikvision
Model Number: 314300254
Product Type: Motion detector
Weight (g): 884
Width (mm): 60
Length (mm): 255
Height (mm): 210
Input Voltage: 9
Power Source: DC
Power Consumption: 100
Detection Angle: 360
Detection Distance: 12
Operating Temperature C: -10
Storage Temperature C: -20
Operating Humidity: 10 - 90%
Connectivity Technology: Wired
