Description

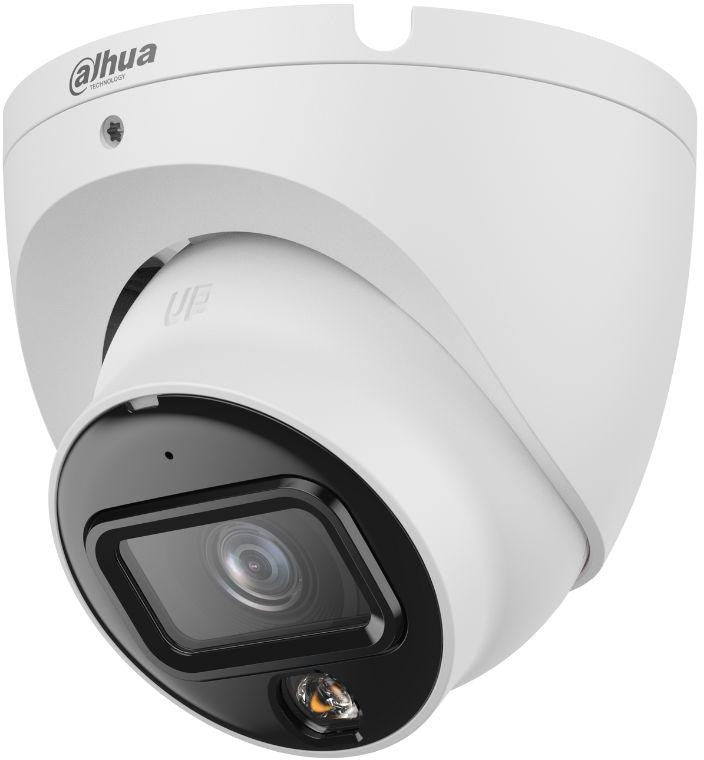

The Dahua IPC-HDW1639T-A-IL-0360B-S6 Smart Dual Light Network Camera is a professional 6MP eyeball IP surveillance camera suitable for both indoor and outdoor installations. It employs a 1/2.7-inch CMOS sensor to deliver up to 3200 × 1800 resolution at 20 fps and up to 2688 × 1520 at 25/30 fps, with progressive scan. A fixed 3.6 mm M12 lens at F1.6 provides a 91° horizontal, 46° vertical and 110° diagonal field of view, focusing down to 1.7 m. Dual illumination combines infrared LEDs and warm-light LEDs, each with up to 30 m range, to achieve 0 lux night vision when the Smart Dual Light activates on human detection. The camera supports H.265, H.264 and MJPEG video compression, including Smart H.265+ and Smart H.264+, 3D noise reduction and digital WDR. It features built-in microphone, two video streams, human and motion detection, tampering and audio alarms, privacy masking and ROI (4 areas), and connects via RJ45 Ethernet (10/100 Mbps) with PoE (IEEE 802.3af) or 12 V DC. Housed in an IP67-rated metal enclosure (85.6 × 94 mm, 340 g), it operates from –40 °C to 60 °C at up to 95% non-condensing humidity.
Key Features
- 6 MP (3200×1800) resolution
- 1/2.7-inch CMOS sensor
- 20 fps at 6 MP; 25/30 fps at 2688×1520
- 3.6 mm fixed-focal M12 lens, F1.6
- 91° horizontal field of view
- Smart Dual Light infrared and warm-light illumination
- Up to 30 m illumination range
- 0 lux minimum illumination with light
- Human detection and motion detection
- Built-in microphone with G.711a/μ, PCM, G.726
- H.265/H.264/MJPEG compression
- Smart H.265+ and Smart H.264+ codecs
- 3D noise reduction and digital WDR
- Privacy masking (4 areas) and ROI (4 areas)
- ONVIF Profile S/T support
- RJ45 Ethernet 10/100 Mbps
- PoE (IEEE 802.3af) or 12 V DC power
- IP67 weather-resistant metal housing
- 85.6×94 mm dimensions; 340 g net weight
- Operating temperature –40 °C to +60 °C
Specifications
Brand: Dahua
Model Number: IPC-HDW1639T-A-IL-0360B-S6
Product Type: IP surveillance camera
Material: Metal
Weight (g): 340
Width (mm): 85.6
Height (mm): 94
IP Rating: IP67
Power Source: 12 V DC or PoE
Battery Included: false
Lens Type: Fixed-focal
Lens Mount: M12
Focal Length Mm: 3.6
Maximum Aperture: F1.6
Horizontal Field Of View Deg: 91
Vertical Field Of View Deg: 46
Diagonal Field Of View Deg: 110
Minimum Focus Distance M: 1.7
Image Sensor: 1/2.7 inch CMOS
Resolution Megapixels: 6
Max Resolution: 3200 x 1800
Max Frame Rate Fps: 20 at 6MP, 25/30 at 2688x1520
Night Vision: true
Illumination Type: Infrared and warm-light
Illumination Range M: 30
Built In Microphone: true
Video Compression: H.265/H.264/MJPEG, Smart H.265+/Smart H.264+
Audio Compression: G.711a/G.711Mu/PCM/G.726
Number Of Video Streams: 2
Poe Standard: IEEE 802.3af
Network Speed: 10/100 Mbps
Operating Humidity Percent: 95
€147,79
