Description

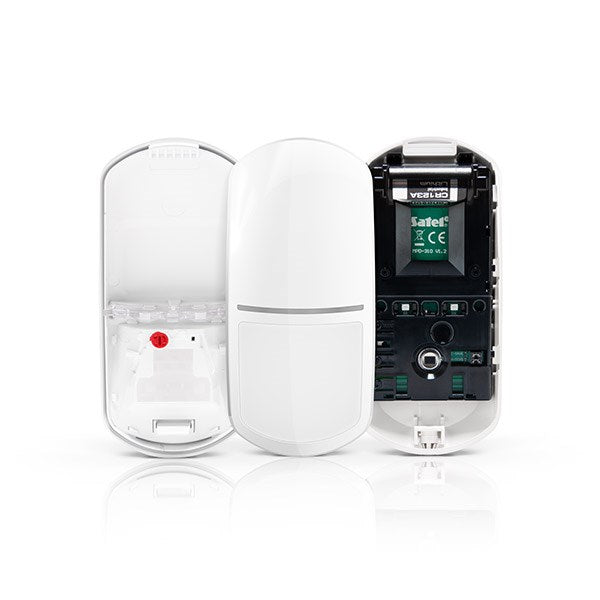

The SATEL MPD-310 is a passive infrared (PIR) motion detector designed for wireless security applications. This model, identified as 4645, operates on a battery power source with a voltage of 3 V, specifically requiring a CR123A battery. It has a detection distance of up to 18 meters and a transmission distance of 600 meters, providing effective coverage for indoor environments. With dimensions of 155 mm in width, 335 mm in length, and 115 mm in height, and weighing 1190 grams, it is suitable for various placement options. The device operates efficiently in temperatures ranging from -10 to 55 °C and utilizes a wireless connectivity technology at an operating frequency between 433.05 and 434.79 MHz.
Key Features
- Passive infrared (PIR) sensor technology
- Detection distance of 18 meters
- Wireless connectivity with 600 meters transmission distance
- Operates on a 3 V CR123A battery
- Operating temperature range of -10 to 55 °C
- Dimensions of 155 mm x 335 mm x 115 mm
- Weight of 1190 grams
Specifications
Brand: SATEL
Model Number: 4645
Product Type: Detector
Weight (g): 1190
Width (mm): 155
Length (mm): 335
Height (mm): 115
Battery Type: CR123A
Battery Voltage: 3
Detection Distance: 18
Transmission Distance: 600
Operating Frequency: 433.05 - 434.79
Input Voltage: 3
€72,54
