Description

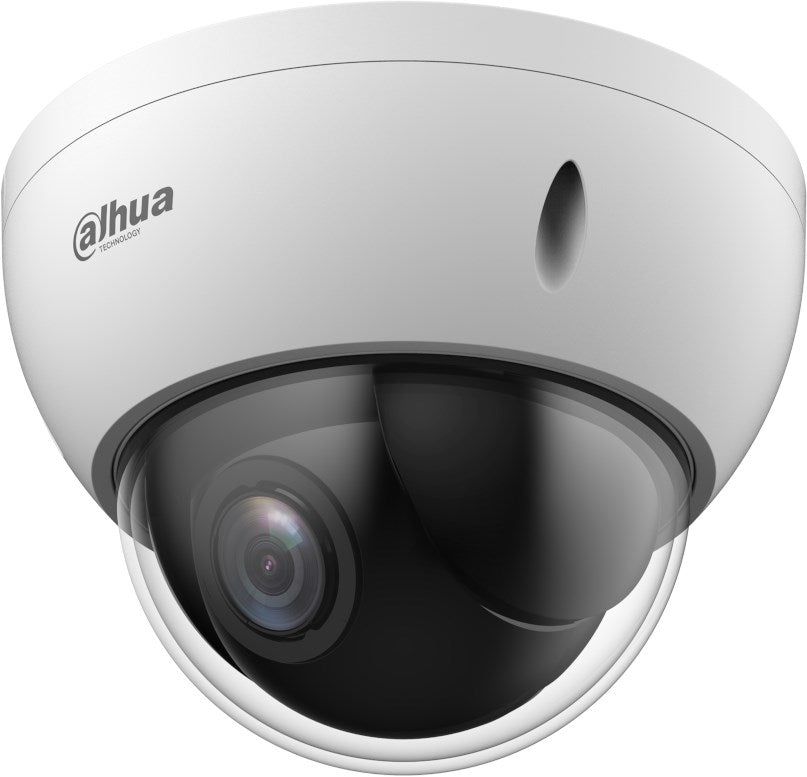

The DAHUA SD22204DB-GNY is a compact AI-powered Mini PTZ IP dome camera featuring WizSense Starlight technology for indoor and outdoor use. It houses a 1/2.8″ progressive-scan CMOS sensor delivering 2 MP resolution at up to 25 fps, complemented by 4× optical zoom (2.8–12 mm f/1.6–3.0) and 16× digital zoom. H.265+ compression, ICR filter, and 2D/3D noise reduction optimize bandwidth and image quality, while IP66 and IK10 ratings ensure weather and vandal resistance. Additional features include IVS perimeter protection, face detection, SMD, 1×100 Mbps Ethernet port, 300 presets, eight patrols, and support for up to 512 GB microSD storage.
Key Features
- 2 MP 1/2.8" CMOS sensor
- 4× optical zoom (2.8–12 mm f/1.6–3.0)
- 16× digital zoom
- IP66 and IK10 rated
- H.265+ compression
- Supports 512 GB microSD
Specifications
Brand: DAHUA
Model Number: SD22204DB-GNY
Product Type: PTZ camera
IP Rating: IP66
Protection Features: IK10
Sensor Type: progressive-scan CMOS
Sensor Size: 1/2.8"
Resolution: 2 MP
Frame Rate Fps: 25
Pan Angle: 355°
Tilt Angle: 0°–90°
Optical Zoom X: 4
Digital Zoom X: 16
Focal Length Mm: 2.8–12
Aperture Range: f/1.6–3.0
Video Compression: H.265+
Ir Cut Filter: ICR
Noise Reduction: 2D/3D
Ivs: perimeter protection
Face Detection: true
Smd: true
Ethernet Port Mbps: 100
Presets: 300
Patrols: 8
Max Storage Gb: 512
Storage Type: microSD
Power Source: 12 V DC
Power Consumption W: 6.1
€272,04
