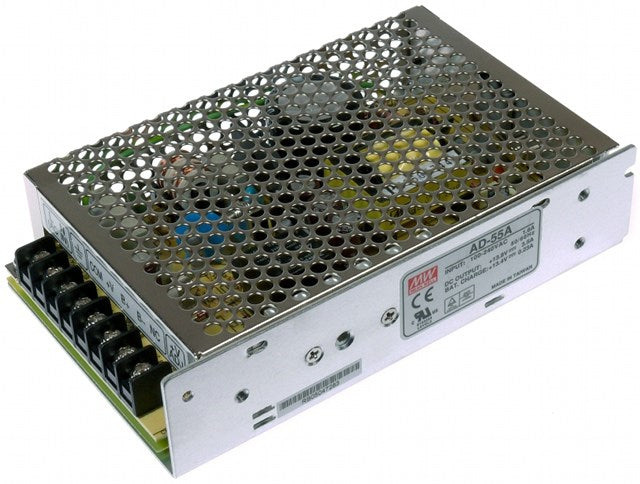

Professional Mean Well switching power supply with backup function with adjustable output voltage 12-14.5V and output current up to 4A for active elements with the corresponding power supply range. SPECIFICATIONS: INPUT: 1. Input voltage 88-264V AC 124-370V DC 2. Input frequency 47-63Hz 3. Input current 2A/100V AC 4. Peak starting current 40A/230V AC OUTPUT: 5. Efficiency 70% 6. Mains failure overlap time 80ms/230V AC 7. Overvoltage protection 8. Output short circuit protection, power protection 7. Adjustable output voltage 12 to 14.5V DC OTHER DATA: 10. Protection IP20 11. Dimensions 159x97x38 mm 12. Operating temperature -10°C to +60°C 13. Storage temperature -20°C to +70°C 14. Relative operating humidity 20-80% RH 15. Relative storage humidity 10-90% RH 16. Weight 0.57 kg STANDARDS: 17. UL 60950-1 18. TUV EN 60950-1 19. EN 55022 Class B 20. EN 61000-3-2,3 21. EN 61000-4-2,3,4,5,6,8,11 22. ENV 50204 23. Dielectric strength 3000V AC input-output/1 min. 24. Dielectric strength 1500V AC input-ground/1 min.
€83,98
