Description

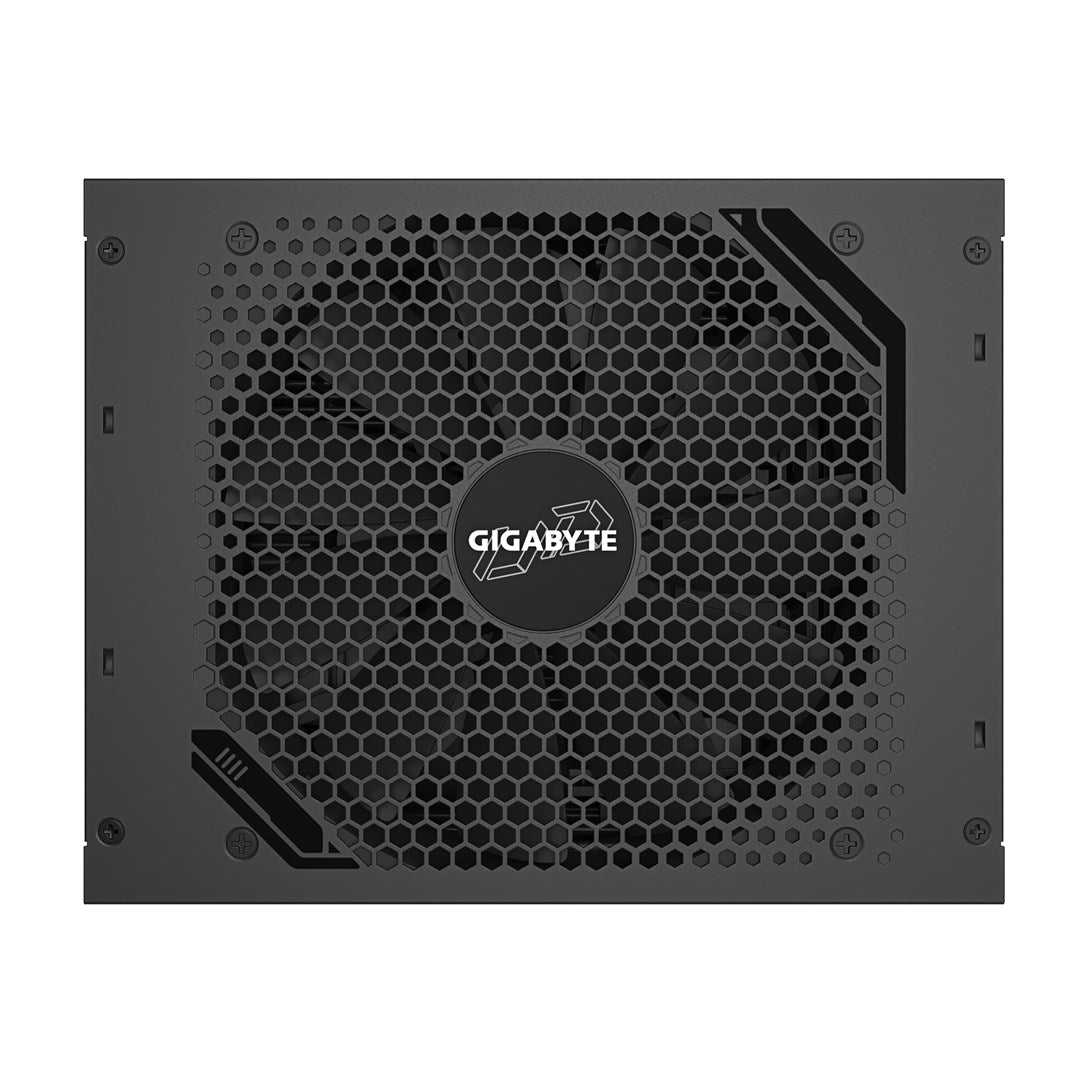

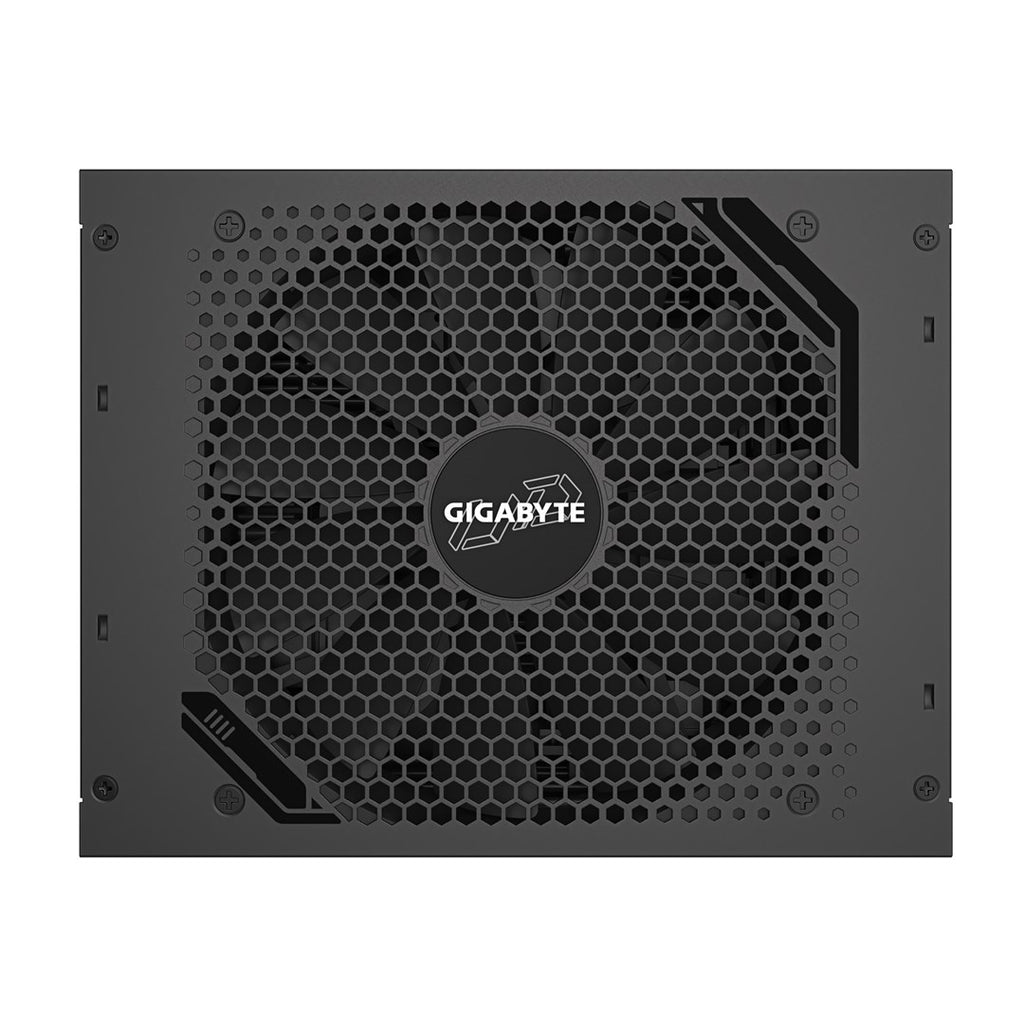

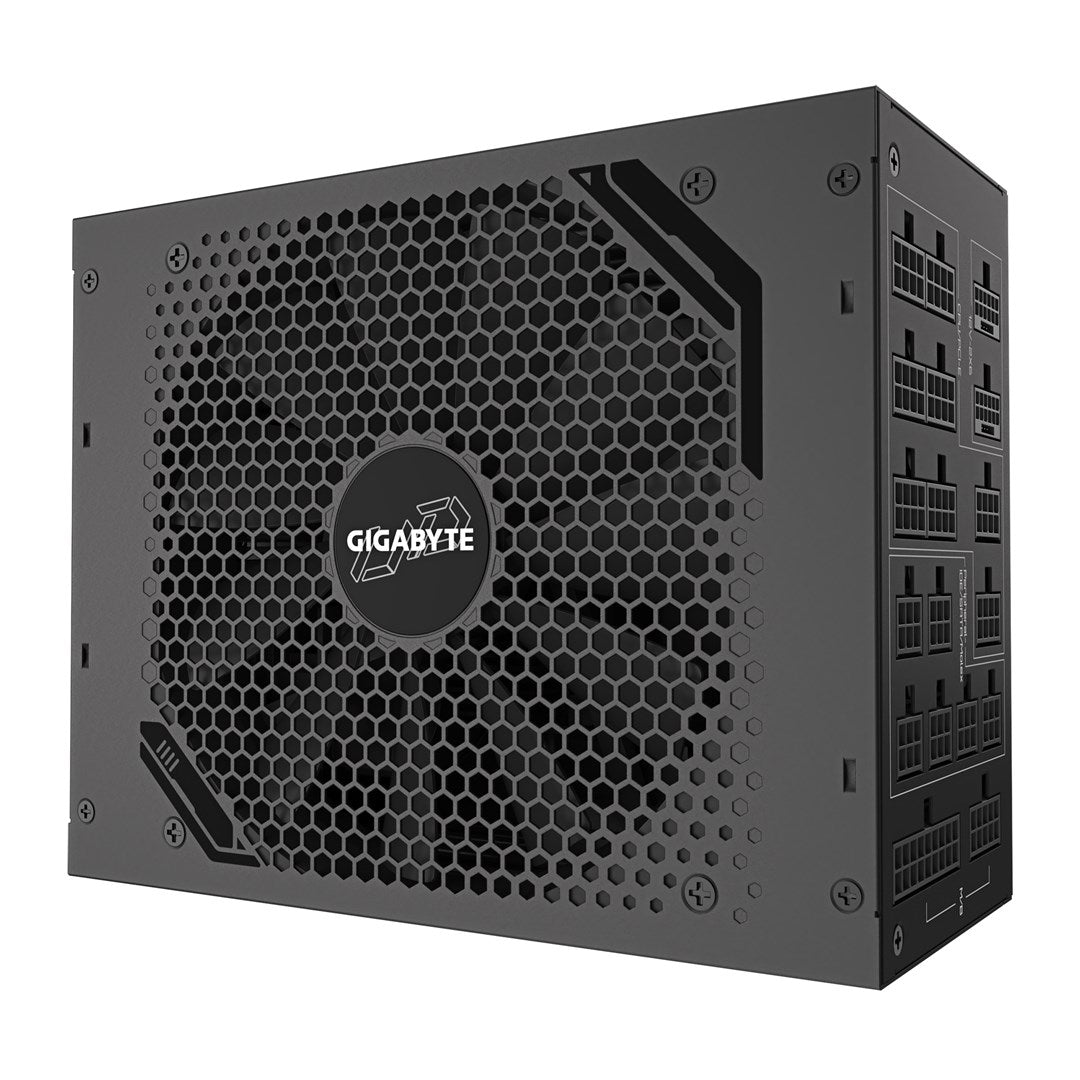

The GIGABYTE UD1600PM PG5 power supply is a high-efficiency unit with a total output capacity of 1600 W, compliant with PCIe 5.0 and ATX 3.1 standards. It features a fully modular design and an active cooling system with a top-mounted 120 mm fan. This PSU operates effectively within an input voltage range of 100-240 V and has an input current of up to 15 A. Its power factor is rated at 0.9, delivering high efficiency with a specification indicating 92% efficiency at typical loads. The unit supports multiple voltage outputs with a maximum current of 133.3 A on the +12V rail and provides significant power capabilities across all outputs, including combined power ratings of 150 W on both +3.3V and +5V. It is equipped with various protection features and complies with the 80 PLUS Platinum certification.
Key Features
- 1600 W total power
- 80 PLUS Platinum certification
- Active cooling type

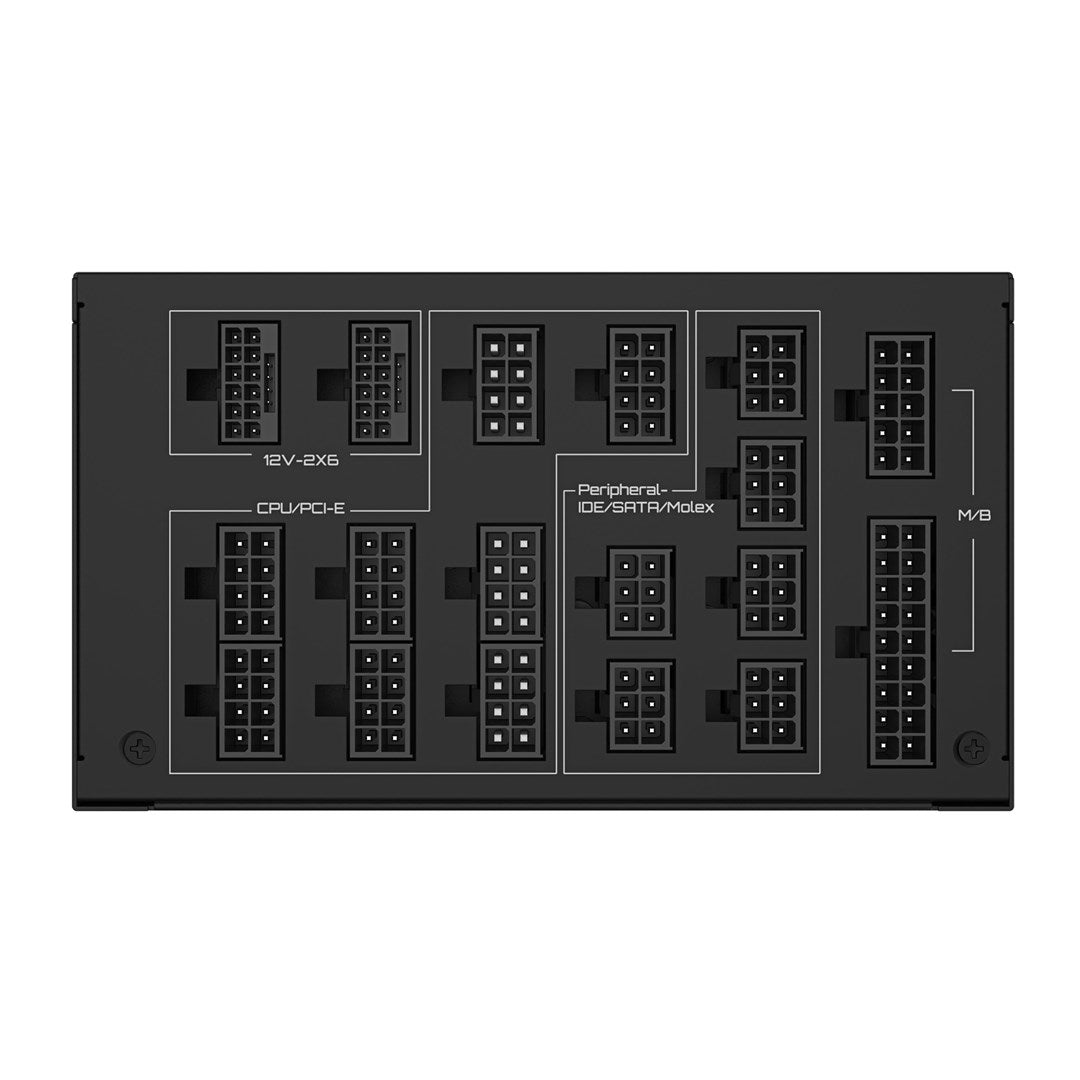

- Fully modular cabling type
- Max output current +12V: 133.3 A
- Combined power +5V: 150 W
- Combined power +3.3V: 150 W
- Protection features: Overheating, Under voltage, Over current, Over power, Short circuit, Over voltage
Specifications
Brand: Gigabyte
Model Number: GP-UD1600PM-PG5
Product Type: Power Supply Unit
Color: Black
Weight (g): 5656
Width (mm): 417
Height (mm): 151
Depth (mm): 223
Power (W): 1600
Power Source: AC
Battery Count: 0
Number Of Fans: 1
Max Output Current Plus 12V: 133.3
Max Output Current Plus 5V: 30
Max Output Current Plus 3 3V: 30
Combined Power Plus 5Sb: 17.5
Combined Power Minus 12V: 9.6
Hold Time: 16
Ac Input Voltage: 100 - 240 V
Ac Input Frequency: 50/60 Hz
€433,05
