Description

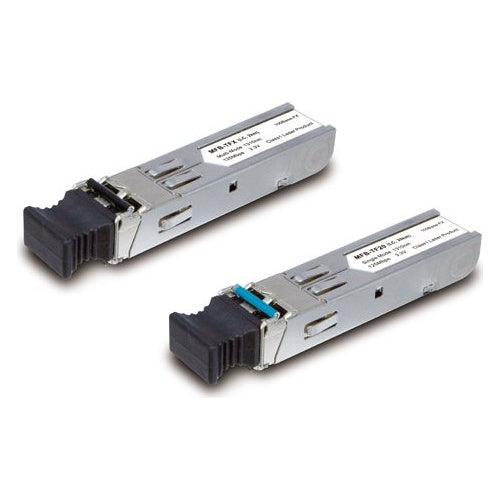

The Planet MFB-Series MFB-TFB20 is a hot-pluggable SFP transceiver module designed for Fast Ethernet 100Base-BX links over single-mode fiber up to 20 km. It uses LC connectors and transmits at 1310 nm with a receive wavelength of 1550 nm. Compliant with the SFP Multi-Source Agreement and IEEE 802.3u, this module installs without interrupting host operation. It operates across an extended temperature range from –40 °C to 75 °C and meets Class 1 IEC 825 laser safety standards.
Key Features
- 100 Mbit/s data rate
- 20 km single-mode reach
- LC single-mode connector
- 1550 nm RX / 1310 nm TX
- Hot-pluggable SFP MSA compliant
- Operating temperature –40 °C to 75 °C
Specifications
Brand: Planet
Model Number: MFB-TFB20
Product Type: SFP transceiver
Interface Type: SFP
Maximum Data Transfer Rate Mbit S: 100
Maximum Transfer Distance M: 20000
Connector Type: LC
Wavelength Rx Nm: 1550
Wavelength Tx Nm: 1310
Operating Temperature Min C: -40
Operating Temperature Max C: 75
Multi Mode Fiber Supported: false
Standards Compliance: IEEE 802.3u, SFP MSA, IEC 825 Class 1
€81,99
