Description

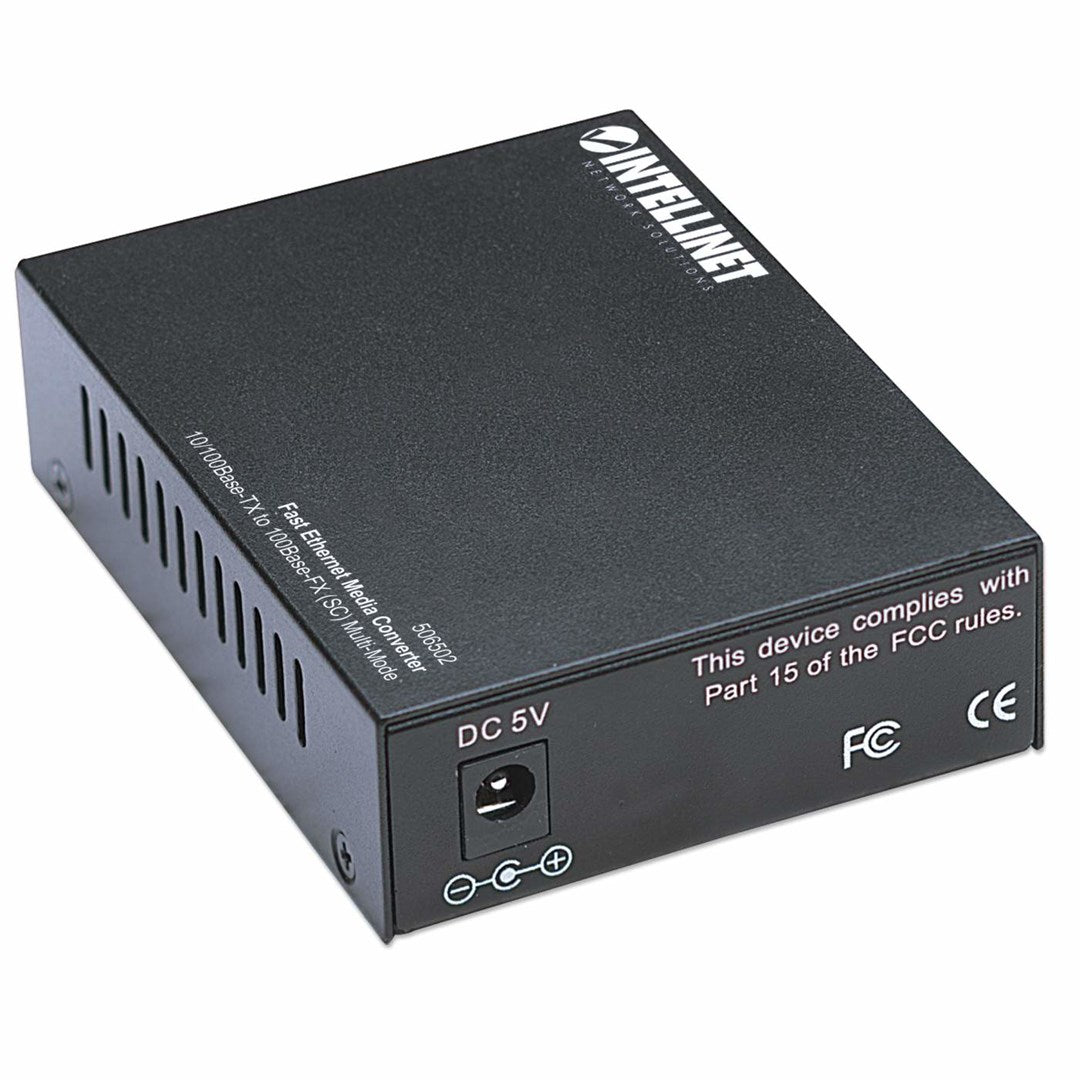

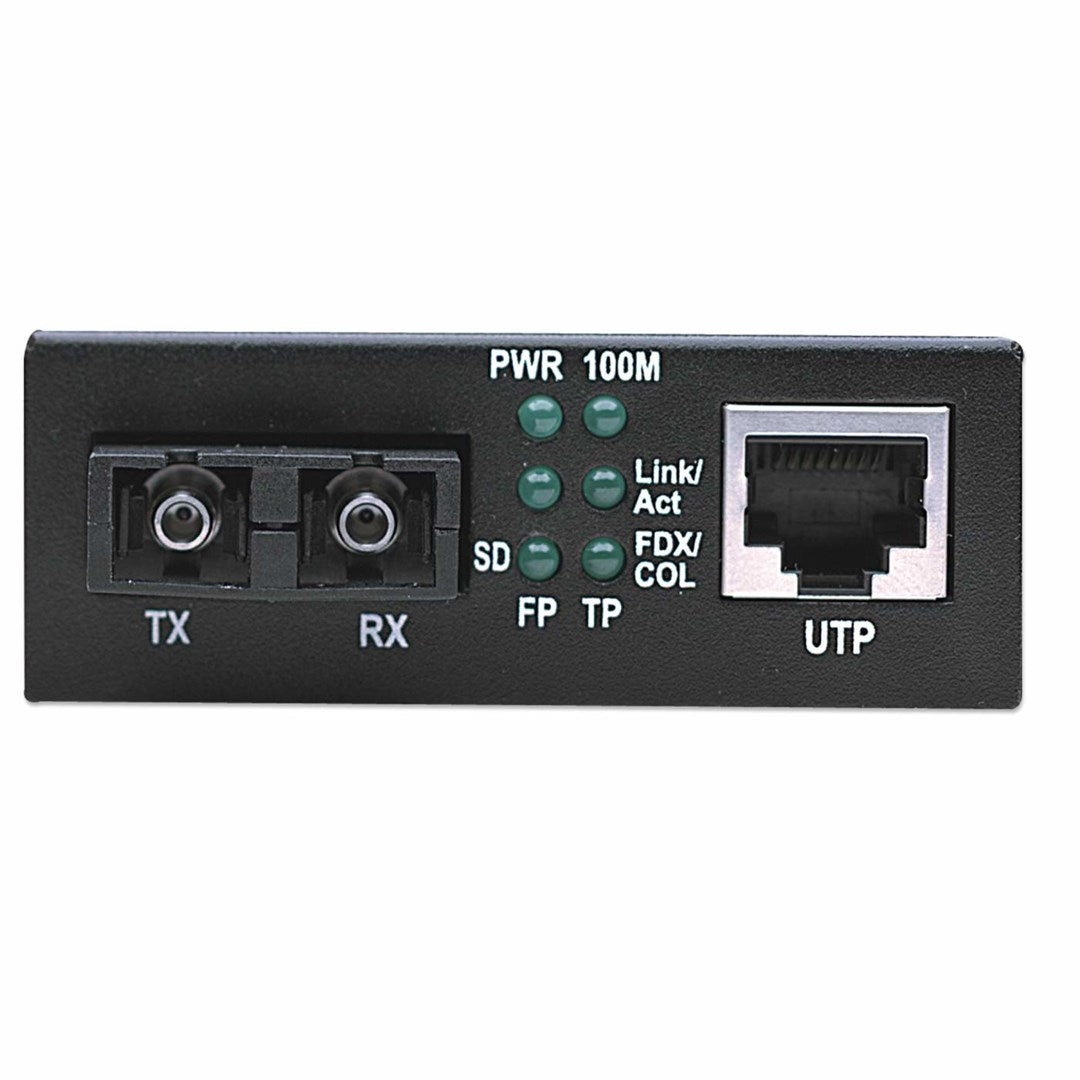

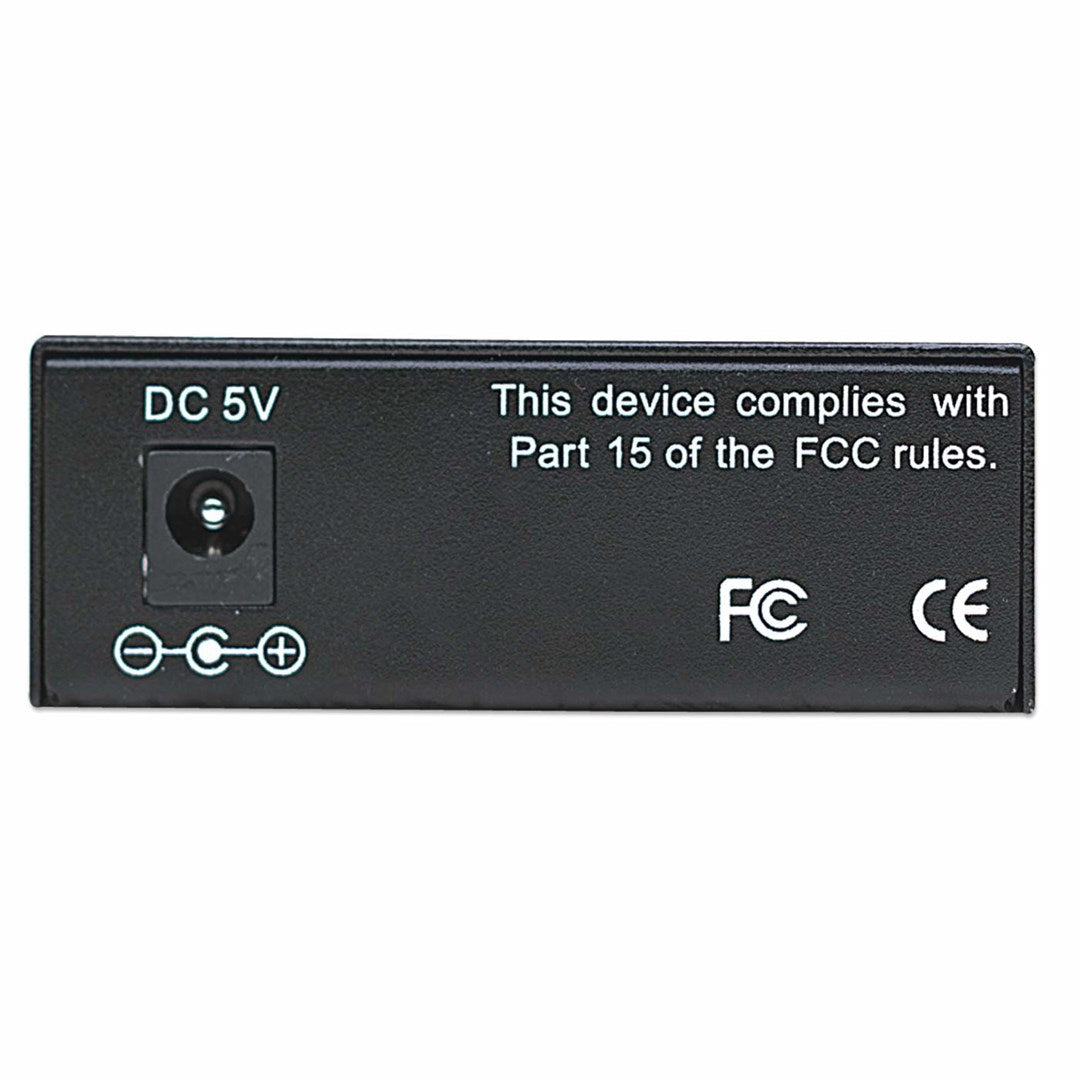

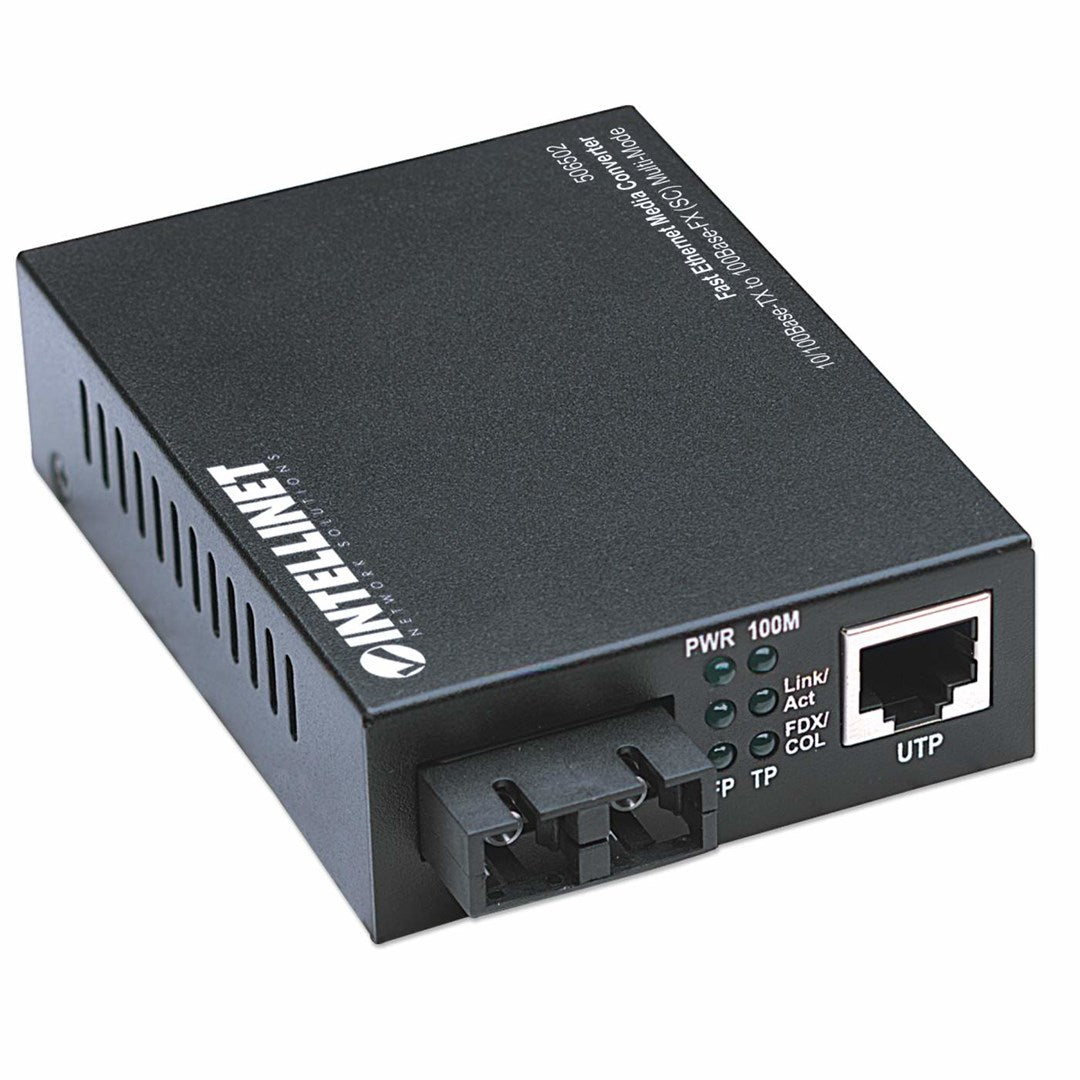

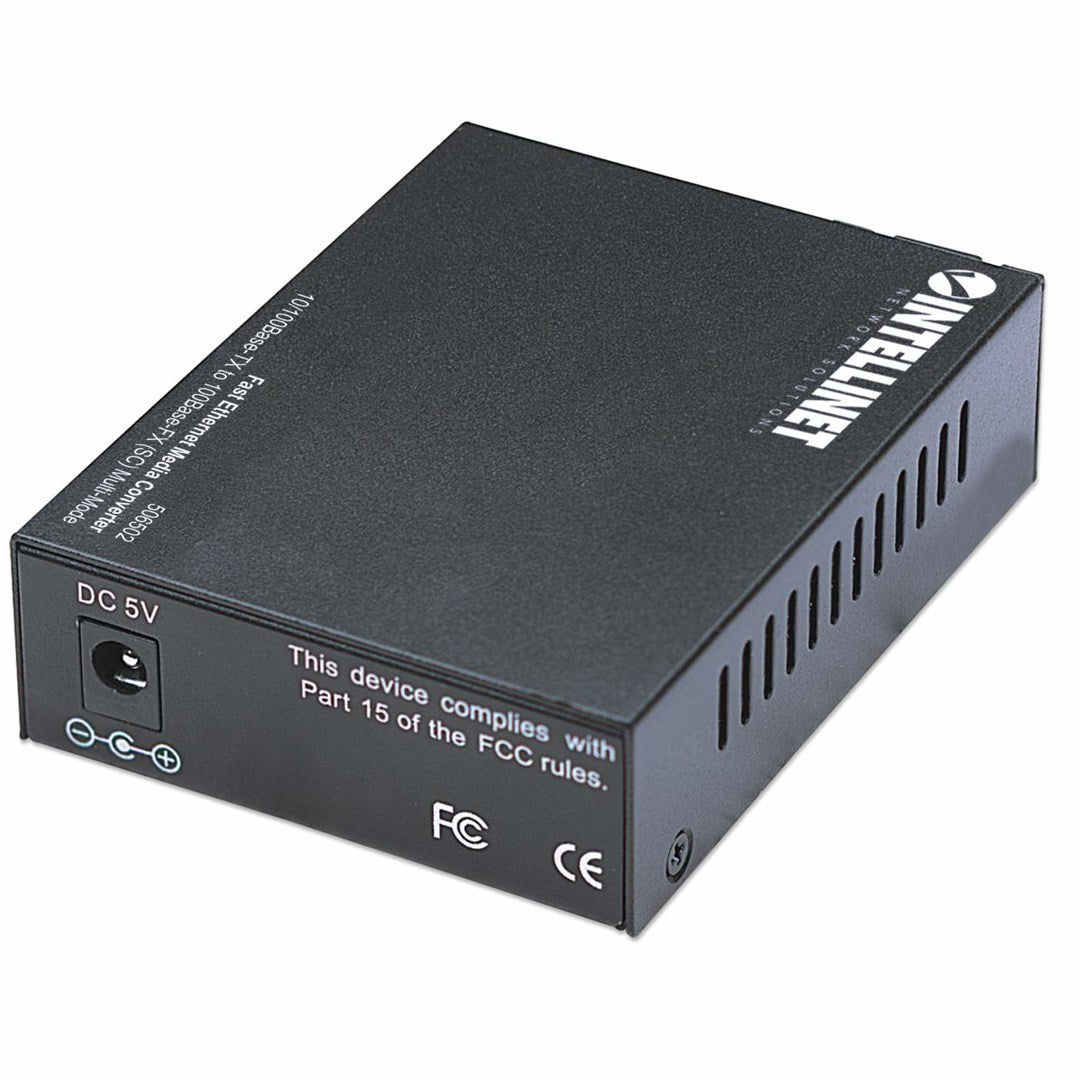

The Generic Fast Ethernet media converter extends copper networks with a 10/100Base-TX RJ45 port and a 100Base-FX SC duplex multimode fiber port, supporting data rates up to 100 Mbit/s. The RJ45 interface offers Auto MDI/MDI-X and auto-negotiation over distances up to 90 m, while the fiber port spans 2 km on 50/125 µm cable at a 1310 nm wavelength. It handles flow control and jumbo frames up to 1.6 KB and uses LEDs to indicate power and link/activity status. The compact module works standalone or fits into a 14-slot chassis (model 507356, sold separately) and meets NDAA requirements.
Key Features
- 100 Mbit/s data rate
- 10/100Base-TX RJ45 port (90 m range)
- 100Base-FX SC duplex fiber port (2 km over 50/125 μm)
- Supports flow control and jumbo frames up to 1.6 KB
- Auto MDI/MDI-X and auto-negotiation
- LED indicators for power and link/activity
Specifications
Brand: Generic
Product Type: Fast Ethernet media converter
LED Indicators: true
Port Rj45 Standard: 10/100Base-TX
Rj45 Max Range M: 90
Port Fiber Standard: 100Base-FX
Fiber Connector: SC duplex multimode
Fiber Max Range M: 2000
Wavelength Nm: 1310
Max Data Rate Mbit S: 100
Flow Control: true
Jumbo Frame Max Ko: 1.6
Auto Mdix: true
Auto Negotiation: true
Chassis Mount Supported: true
Compatible Chassis Model: 507356
Ndaa Compliant: true
€73,42
