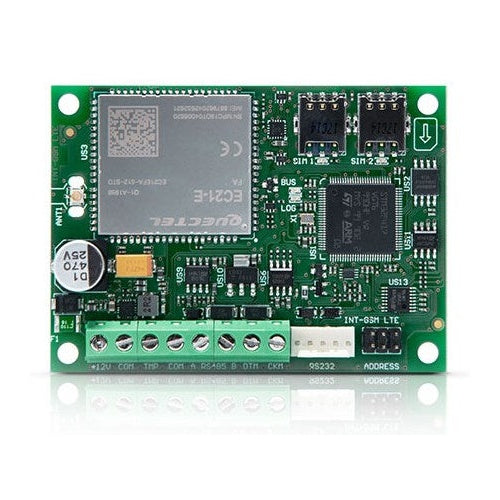

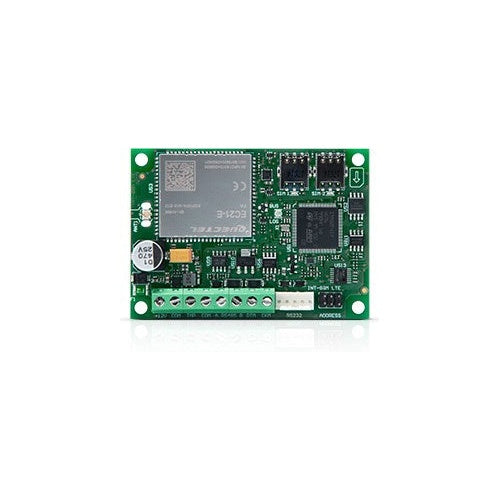

INT-GSM LTE KIT and RJ/PIN5 cable for connection to the control panel. GPRS communication module for INTEGRA control panels (ANT-LTE-I antenna included, no housing). The INT-GSM LTE is an LTE communication module that enables INTEGRA and INTEGRA Plus series alarm control panels to communicate via a 2G, 3G, or 4G cellular network. The device operates on the control panel's keypad bus. It supports two SIM cards. All cellular data transmissions are encrypted using the AES-192 standard. The INT-GSM LTE monitors events to two monitoring stations (e.g., security agencies) via the cellular network. It uses cellular data transmission and SMS messages, with the ability to set a priority for each transmission path. Event notifications are automatically generated based on records from the control panel's event memory. The module transmits information via SMS messages or the CLIP service (to up to 16 numbers), and when used with the INTEGRA Plus control panel, also via email (to up to 16 addresses). After installing the INTEGRA CONTROL mobile application, e.g., on a smartphone, PUSH notifications are available. INT-GSM LTE's cooperation with INTEGRA and INTEGRA Plus control panels opens up access to remote system control using the INTEGRA CONTROL application; SMS messages; the free CLIP service; and the GUARDX program. A major advantage of the INT-GSM LTE module is its compatibility with the ETHM-1 Plus Ethernet module (RS-485 connection). This pair allows for dual-path reporting, compliant with the EN 50136 standard, as well as defining the priority of event monitoring paths (Ethernet, cellular data, and SMS). By default, the cellular network is a backup communication channel for the Ethernet network. Communication via the cellular network enables wireless connection between the control panel and a computer running the DLOADX program, allowing system configuration even from a remote location. The module and computer can be connected using the SATEL connection setup service. The module firmware can be updated via the RS-232 port or remotely using the UpServ software (cellular data transmission). Features: compatibility with INTEGRA and INTEGRA Plus control panels (version 1.19 or higher); dual SIM card support; ability to check pre-paid account balance; time synchronization with an NTP server or cellular network; notifications: SMS, CLIP, PUSH, e-mail (INTEGRA Plus); remote control: SMS, CLIP, mobile application; monitoring: cellular data (TCP/UDP), SMS messages; compatibility with the ETHM-1 Plus Ethernet module (version 2.07 or higher): Dual Path Reporting, compliant with EN 50136. Backup communication path.; ability to use the SATEL connection setup service; system operation via the INTEGRA CONTROL mobile application Android (version 4.2.7 or higher). iOS (version 5.0 or higher).; control panel programming using DLOADX (version 1.19.004 or higher) - remote connection; alarm system control using GUARDX - remote connection; cooperation with the INTEGRUM system (integration of multiple alarm systems based on INTEGRA and INTEGRA Plus control panels); remote module firmware update via UpServ; RJ/PIN5 is a cable used to connect the RS ports of INTEGRA series control panels equipped with an RJ socket with communication modules having a PIN-5 connector, i.e. GSM, ISDN-MOD, ETHM-1, ETHM-1 Plus modules and the MDM56 BO modem. cable for connecting the RS ports of INTEGRA control panels with an RJ socket and modules with a PIN5 socket; .
€187,88
