Description

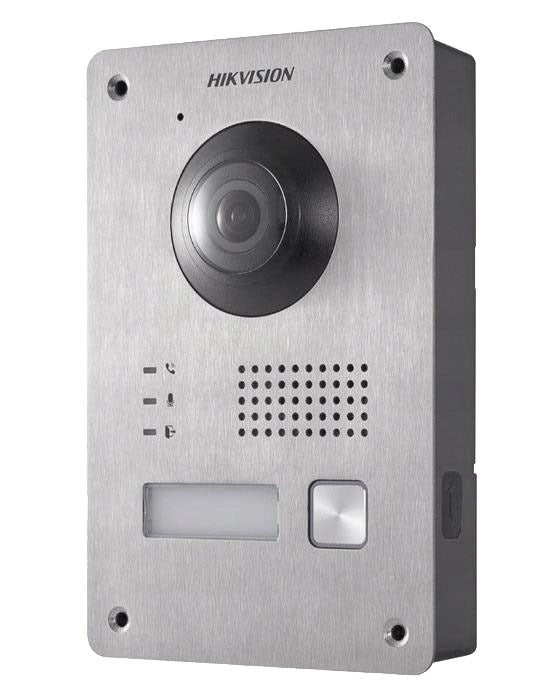

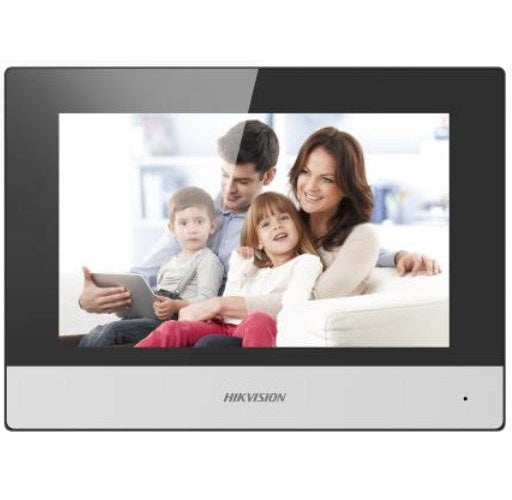

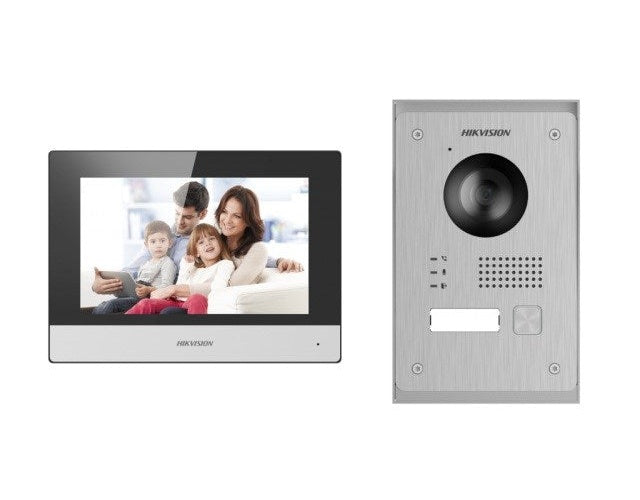

The Hikvision Visiophone IP 2MP 1 Bouton IP65 is a video door phone kit that leverages two-wire technology to modernize existing installations without rewiring. Its stainless steel outdoor panel DS-KV8103Y-IMPE2 features a 2 MP CMOS camera with IR illumination for low-light performance, a 140° horizontal viewing angle, an IP65 rating and a temperature range of -40 °C to +60 °C. The panel supports one mechanical call button, two-way audio and includes two relay outputs plus two alarm inputs for lock control and door sensors. The indoor monitor DS-KH6320Y-WTPE2 runs on Linux and offers a 7-inch TFT touchscreen at 1024×600 resolution, Wi-Fi connectivity via Hik-Connect, noise reduction and echo cancellation along with eight configurable alarm inputs.
Key Features
- 2 MP CMOS camera
- 140° horizontal viewing angle
- Stainless steel IP65-rated panel
- 7-inch TFT touchscreen (1024×600)
- Two-way audio with noise reduction and echo cancellation
- Wi-Fi connectivity via Hik-Connect
Specifications
Brand: Hikvision
Product Type: video_door_phone
Material: Stainless steel
IP Rating: IP65
Power Source: DC 24 V
Panel Model: DS-KV8103Y-IMPE2
Monitor Model: DS-KH6320Y-WTPE2
Camera Resolution Mp: 2
Sensor Type: CMOS
Viewing Angle Deg: 140
Two Way Audio: true
Alarm Inputs: 2
Relay Outputs: 2
Screen Size Inch: 7
Screen Resolution: 1024×600
Operating System: Linux
Connectivity: Wi-Fi
Temperature Range C: -40 to +60
€949,42
