Description

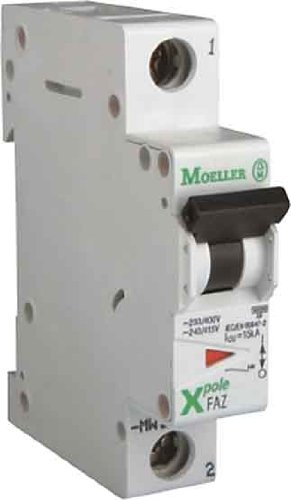

The Eaton xEffect FAZ-C16/1 is a single-pole miniature circuit breaker rated at 16 A with a Curve C tripping characteristic. It provides overload and short-circuit protection at 230 V AC and 48 V DC with a breaking capacity of 10 kA. The device features a 17.5 mm width, 80 mm height, and 74 mm depth suitable for DIN rail mounting. Tripping characteristics adhere to Type C standards for consistent response curves.
Key Features
- 1P single-pole configuration
- 16 A rating
- Curve C tripping characteristic
- 10 kA breaking capacity
- 230 V AC / 48 V DC voltage rating
- DIN rail mounting
Specifications
Brand: Eaton
Model Number: 278561 FAZ-C16/1
Product Type: Miniature circuit breaker
Width (mm): 17.5
Height (mm): 80
Depth (mm): 74
Breaking Capacity Ka: 10
Tripping Characteristic: Type C
Mounting Style: DIN Rail
€69,32
