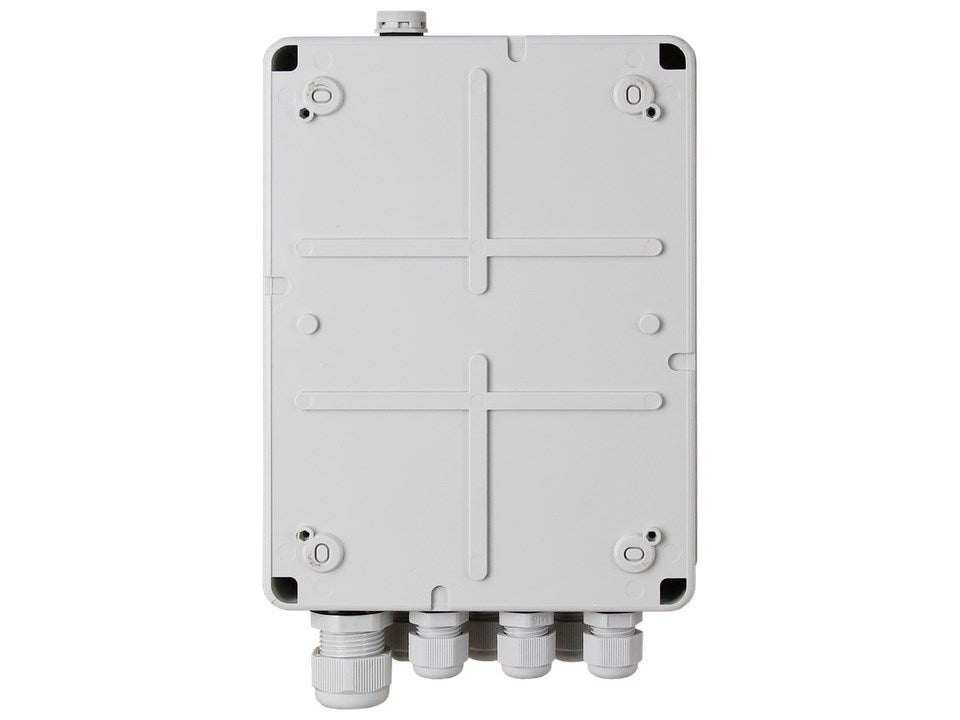

PoE Switch Up to 4 IP Cameras in a Hermetic Housing Description The S64 Switch is a 6-port PoE switch designed to power IP cameras. Ports 1 to 4 of the switch feature automatic detection of PoE-powered devices. Two ports marked UPLINK are used to connect additional network devices. The front panel features LED status indicators. The switch has a hermetic IP56, surface-mounted, lockable, screw-lock housing that can be pole-mounted. The switch supports Long Range mode (max. 250m 10Mb/s); the range depends on, among other things, the power consumption of the connected device. Product characteristics: number of ports: 6 ports (4xPoE + 2xUPLINK); PoE power supply: 4 ports 10/100 Mb/s IEEE 802.3af/at, 52VDC / 30W/port (PoE+); Long Range mode: STANDARD 100m / 100Mb/s or EXTEND 250m / 10Mb/s; UPLINK ports: 2 port 10/100 Mb/s to connect a recorder / switch / computer; 30W/port - maximum power of a single PoE port; 30W maximum power consumption by connected PoE ports; hermetic IP56 housing, surface-mounted, screw-locking; can be mounted on a pole; Specifications power supply: 90 264VAC; PoE ports: 4x10/100 Mb/s; uplink ports: 2x10/100 Mb/s; PoE power supply: IEEE 802.3af/at, 52VDC / 30W/port (PoE+); Long Range mode: STANDARD 100m / 100Mb/s or EXTEND 250m / 10Mb/s; operating temperature: -25°C 50°C; dimensions: W 146 H 196 D 78 +/- 2mm; Number of cable glands/cable diameter: 6 pcs/4 8mm and 1 pc/10 14mm; warranty: 1 year from the production date; supported protocols and standards: IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP; max. 30W/port - maximum power of a single PoE port; max. 30W maximum power consumption by connected PoE ports; port sockets: RJ45; housing: hermetic IP56, surface-mounted, screwed closing; .
€111,84
