Description

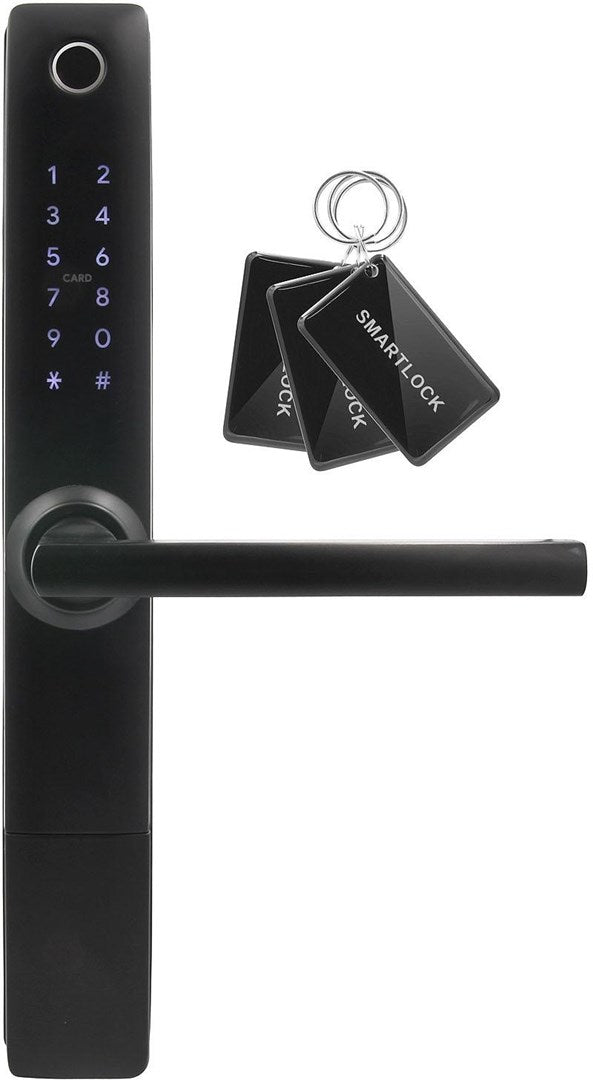

The Eura ELH-20H4 is an electronic door handle access control system (article H41A720) offering keyless entry via fingerprint, PIN code, MIFARE access cards, or smartphone through TTLock and TTHotel apps over Bluetooth. It features a backlit capacitive touch keypad and fits both left- and right-hand doors. Powered by 6 V DC from four AA alkaline batteries, it draws under 18 µA in standby and up to approximately 200 mA during operation. The MIFARE RFID module operates at 13.56 MHz supporting 200 cards, 200 fingerprints, 200 PIN codes, and unlimited electronic keys. Housed in zinc alloy with an IP55 rating, it operates between –35 °C and +55 °C and offers adjustable unlock times from 5 to 90 seconds, mechanical emergency key override, and optional emergency power input.
Key Features
- Fingerprint, PIN code, MIFARE card and smartphone access
- Compatible with TTLock and TTHotel apps
- Bluetooth connectivity (2.4 GHz, <10 mW)
- Backlit capacitive touch keypad
- Supports 200 fingerprints, 200 PIN codes and 200 RFID cards
- Unlimited electronic keys
- 4×AA alkaline battery operation (6 V DC)
- Standby current <18 µA, max current ~200 mA
- RFID frequency 13.56 MHz
- IP55 protection rating
- Operating temperature –35 °C to +55 °C
- Zinc alloy housing
- Suitable for left- and right-hand doors
- Mechanical emergency key override
- Adjustable unlock time 5–90 s
Specifications
Brand: Eura
Model Number: ELH-20H4
Product Type: Electronic door handle with access control
Color: Black
Power Source: 4 × AA alkaline batteries (6 V DC)
Battery Count: 4
Battery Technology: Alkaline
Voltage (V): 6
Batteries Included: false
Rechargeable: false
Bluetooth Enabled: true
Bluetooth Frequency Ghz: 2.4
Bluetooth Max Transmit Power Mw: 10
Rfid Technology: MIFARE
Rfid Frequency Mhz: 13.56
Max Rfid Cards: 200
Max Fingerprint Count: 200
Max Pin Codes: 200
Unlimited Electronic Keys: true
Keypad Type: Illuminated capacitive touch keypad
Suitable For: Left- and right-hand doors
Housing Material: Zinc alloy
IP Rating: IP55
Min Operating Temperature C: -35
Max Operating Temperature C: 55
Unlock Time Min S: 5
Unlock Time Max S: 90
Standby Current Ua: 18
Max Current Ma: 200
Length (mm): 300
Width (mm): 43
Depth (mm): 24
Mechanical Key Emergency Opening: true
Emergency Power Input Supported: true
€212,82
