Description

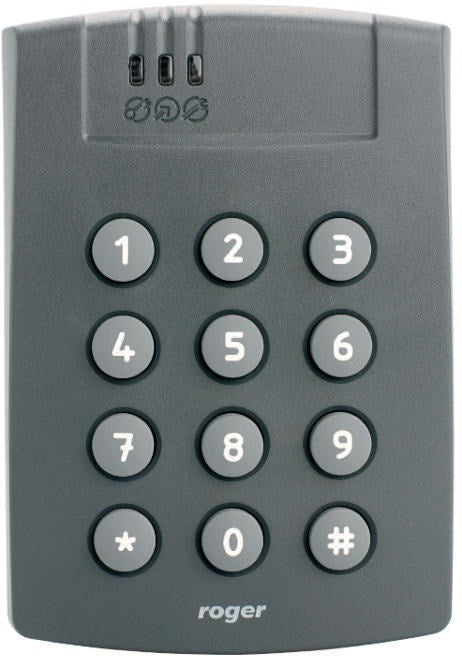

The Roger PR612 is an outdoor access controller for the RACS 4 system with a built-in EM 125 kHz proximity reader and keypad. It operates as a standalone or networked single-door controller, supporting card/PIN verification, local event logging, schedules, user groups, RS485 communication and up to 4,000 users in an IP65-rated enclosure.
Key Features
- EM 125 kHz proximity reader
- Built-in keypad
- Card & PIN verification
- Standalone & networked modes
- RS485 communication
- Up to 4,000 users
- 3 programmable inputs
- 2 transistor outputs
- 1 relay output
- IP65 rating
Specifications
Brand: Roger
Model Number: PR612
Product Type: Access controller
System Compatibility: RACS 4
Operation Mode: Standalone, Networked system with CPR controllers
Built In Reader: true
Reader Type: EM 125 kHz proximity reader
Card Standard: EM 125 kHz UNIQUE, EM4100, EM4102
Built In Keypad: true
Verification Types: Card, PIN code, Card and code
Reading Distance Cm: 15
External Reader Connection: true
External Reader Interface: RACS Clock&Data
Communication Interface: RS485
Power Supply: 10 - 15 V DC
Nominal Power Supply: 12 V DC
Average Current Consumption Ma: 70

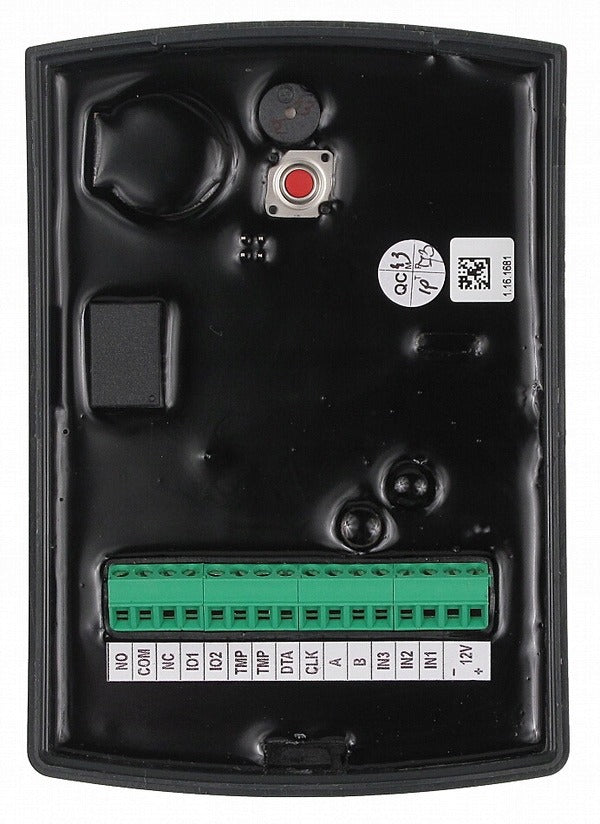

Programmable Inputs: 3 NO/NC inputs
Transistor Outputs: 2 programmable 1 A outputs
Relay Output: 1 programmable relay output
Relay Contact Rating: 1.5 A/30 V
Max Users: 4000
Event Buffer: 32000
Schedules: 99
User Groups: 250
Real Time Clock: true
Battery Backup For Clock: true
Anti Passback: true
Tamper Protection: true
Buzzer: true
Outdoor Use: true
IP Rating: IP65
Environment Class: IV
Operating Temperature Min C: -25
Operating Temperature Max C: 60
Weight (g): 120
Width (mm): 115
Height (mm): 80
Depth (mm): 35
€216,67
