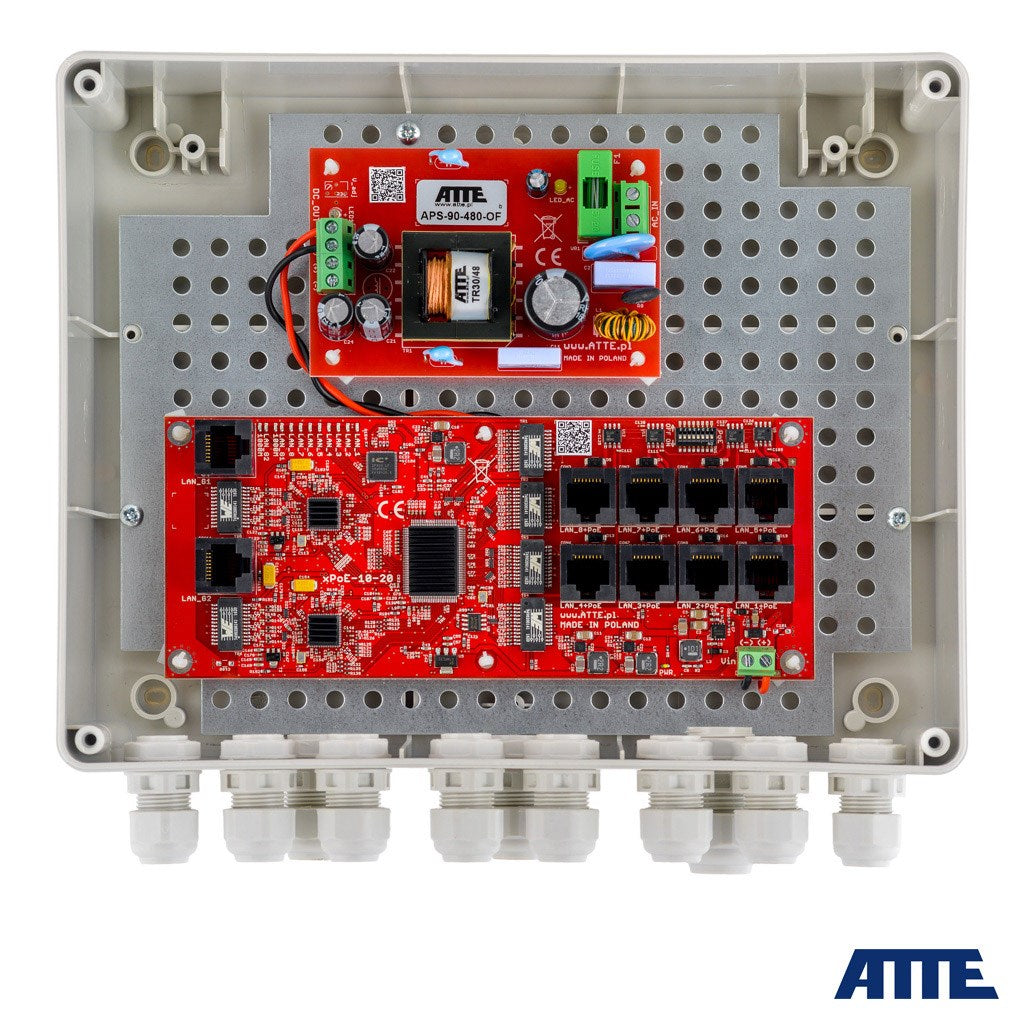

8-Port PoE Switch + 2 (RJ45 IP-8-20-L2) Description: The IP-8-20-L2 is a ready-made kit designed to power an IP CCTV system consisting of 8 IP cameras. Electronic PoE output protection ensures continuous operation of the entire system in the event of a short circuit or overload of individual power branches, as well as automatic voltage recovery after the failure is repaired. The device is suitable for systems requiring increased network bandwidth, such as 4K Ultra HD CCTV surveillance. The kit is designed to work with IP cameras and other network devices powered using the PoE 802.3at/af and PoE PASSIVE standards. The device is housed in an ABOX series outdoor enclosure, a convenient solution for protecting devices and cable connections installed outdoors. High-quality plastic ensures resistance to UV radiation and other adverse weather conditions. Hermetic enclosure. The module is housed in an outdoor enclosure with an IP56 rating, providing sufficient protection against dust and moisture in the changing conditions typical of our climate. The switch has a wide range of applications. This high-quality switch belongs to a group of LAN devices that will skillfully complement any network infrastructure available in a home, shop, or office. Utilizing the switch's extensive functionality in IP surveillance installations, it is possible to comprehensively power IP cameras in places free of power sources and, as a result, implement effective security systems. Specifications Ports : . 8x RJ45 PoE ports (10/100Mbps); 2x RJ45 ports (10/100/1000Mbps); Port functions: . xPoE-10-20-OF LAN 1.. LAN 8:; PoE OUTPUT - for PoE PASSIVE (up to 40W) and 802.3af (up to 15.4W), 802.3at (up to 30W) receivers; XPoE-10-20-OF LAN G1, LAN G2:; UpLink Gigabit (without PoE power); Housing: Plastic, gray (RAL7035). Protection rating: IP56. Dimensions (W/L/H): 240x90x190mm& xa0. Mounting: Mounting brackets with the possibility of hanging. Power supply type: Switched. Efficiency: 92% 90W. Power supply power: 96W. Output voltage: 48V DC +/- 2%. Power supply input protection: . 3.15A slow-blow fuse; Surge protection; Power supply output protection: . Electronic overload protection at 3A; Electronic short circuit protection (after a short circuit, a restart of the power supply may be required); Surge protection; Port protections: . LAN 1.. LAN 8, Vin:; Surge protection; LAN 1.. LAN 8:; Short circuit protection 0.75A with auto return; Operation indication: . APS-90-480-OF:; AC LED (yellow) - presence of mains voltage; LED 1 (blue) - presence of output voltage ; xPoE-10-20-OF:; LEDs in connectors LAN 1.. LAN 5 - presence of PoE power on the port; Power control on the ports: . xPoE-10-20-OF:; PoE ON/OFF switch - positions 1.. 8 (LAN 1.. LAN 8); PoE OFF on the port - switch in OFF position; PoE ENABLED on the port - switch in ON position ; Kit contents: . ABOX-L2 housing; APS-90-480-OF power supply; xPoE-10-20-OF switch; Operating temperature range: -25°C 50°C. Weight: 1kg. Dimensions (width/length/height): 240x90x190mm.
€268,86
