Description

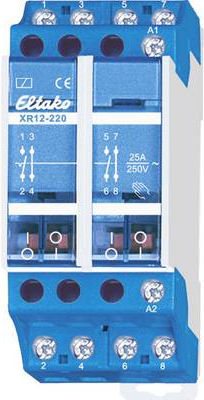

The ELTAKO XR12-220-230V installation relay delivers a 25 A current rating at 230 V and is designed for DIN rail mounting according to EN 60715. It features two normally open contacts and two normally closed contacts with a 3 mm contact gap for reliable switching. The compact housing measures 36 mm in width, 55 mm in depth and 70 mm in height, and control circuitry consumes just 4 W. Weighing 840 g, it integrates into electrical panels for manual and automated control tasks.
Key Features
- 25 A current rating
- 230 V operating voltage
- DIN rail mounting
- Two normally open contacts
- Two normally closed contacts
- 3 mm contact gap
Specifications
Brand: ELTAKO
Model Number: XR12-220-230V
Product Type: Installation relay
Current Rating A: 25
Power Source: 230V
Width (mm): 36
Depth (mm): 55
Height (mm): 70
Length (mm): 180
Weight (g): 840
Mounting: DIN rail EN 60715
Normally Open Contacts: 2
Normally Closed Contacts: 2
Contact Gap Mm: 3
Control Power W: 4
€85,99
