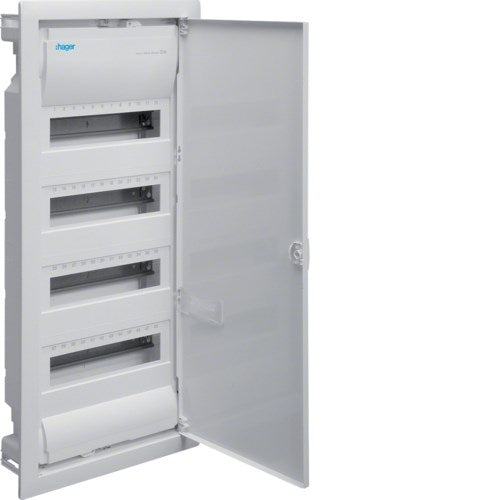

48-MODULE FLUSH-MOUNTED DISTRIBUTION BOARD VU48NE HAGER TECHNICAL DATA: Model - VU48NE. Number of modules - 48 (4x12). Protection class - IP-30. Insulation class - II. For devices - up to 63A. Material - high-quality plastic (polystyrene), door and masking frame made of sheet steel. Colour - white - RAL9010. N terminals - 25 holes (1x25mm2+24x10/16mm2). PE terminals - 25 holes (1x25mm2+24x10/16mm2). Dimensions: width - 348mm. height - 755mm. depth - 94.5mm. Device covers mounted with screws using quick assembly technique, standardly suitable for sealing. The screw-locked frame conceals plaster irregularities of up to 15mm. Built-in spirit level. For devices up to 63A. Maximum installation depth 70mm. Steel door with flush-mounted handle. IK07 impact resistance. Tool-free door hinges; right- or left-hand doors can be installed without removing the frame. PE/N terminals in a touch-proof cassette, snapped into place at the top or bottom of the cabinet. Side embossing for cable entry. Standards: DIN 43871, PN-EN 60439-3. Color: white RAL9010. Covers are sealable. Suitable for use in residential buildings according to DIN18015. Side spaces for cable entry. Flammability test 650°C using the glow wire method according to EN 60 695-2-1. Wall installation depth 90mm. Class II insulation, IP30. The new Volta switchboard incorporates many new features that positively impact daily operation: greater time savings during installation thanks to efficient assembly steps, increased wiring space within a uniform width, greater flexibility in terminal equipment, and increased safety during installation. Easier and faster wiring thanks to a 30% increase in wiring space. More wiring space thanks to the integrated terminal rail in the switchboard tray. More space for terminals and wiring thanks to the new cover profile.
€127,15
