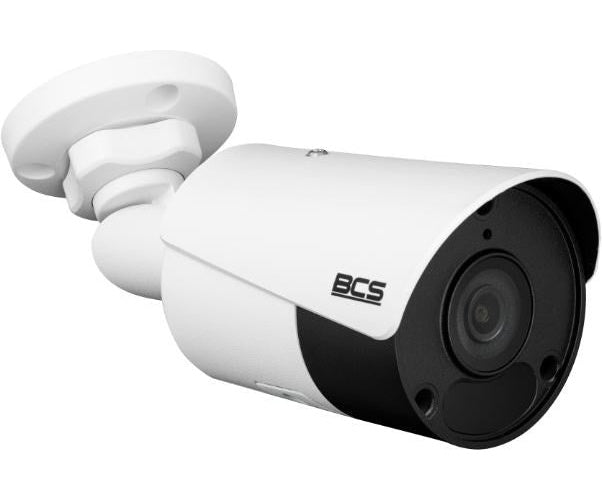

BCS-P-TIP15FSR5-Ai BCS-P-TIP15FSR5-Ai is the successor to the popular BCS-P-TIP15FSR5(2). Features: . SkyLight Technology,; NDAA Compliant,; Sensor type: 1/2.7" CMOS,; Number of pixels: 5 Mpx,; Lens focal length: 2.8 mm,; Field of view: H: 110° V: 58.7° D: 130°,; IR emitter range: up to 50 meters,; Video compression: H.265 / H.265+ / H.264 / MJPEG,; Functions: AWB, AGC, AES, BLC, HLC, ROI, Defog, WDR(120dB), 2D/3D DNR,; ICR Day/Night filter,; Built-in microphone,; Ai - Built-in intelligent functions: Built-in intelligent image recognition and analysis algorithms; Ai - Perimeter protection: intrusion into the area, crossing the line; Ai - Object recognition: Human recognition for intrusion into the area, crossing the line reduces false alarms.; Memory card slot: MicroSD up to 512 GB,; Sealing class: IP67,; Power supply: DC12V, PoE (802.3af).; Technical data: . Device name: BCS-P-EIP15FSR3-Ai; Product line: BCS POINT; NDAA: National Association for Disease Activation; Camera type: Tube; Resolution: 5 Mpx; Transducer: 1/2.7' CMOS; Scanning system: Progressive Scan; Pixels: 2880(H) 1620(V); Lens: Fixed; Focal length: 2.8 mm; Aperture: F1.6; Focus: Fixed; Iris: Fixed; Digital zoom: 16 ; Viewing angle: H: 110° V: 58.7° D: 130°; DORI: Detect 63m / Observe 25m / Recognize 13m / Identify 6m; Camera sensitivity: 0.003Lux(F1.6,AGC) 0Lux(B/W,IR); S/N Ratio: 52dB; White Balance: (AWB) Auto/Manual; WDR: 120dB; Background Compensation: BLC/HLC/WDR(120dB); Shutter: Auto/Manual 1 1/100000s; Gain Control: (AGC) Auto/Manual; Noise Reduction: 2D/3D DNR; RoI: Region of Interest; Defog: Digital; Image Rotation: Mirror, Flip 0°/90°/180°/270°; Number of Streams: 2; Resolutions: 5M (2880 1620) / 4M (2560 1440) / 3M (2304 1296) / 2M (1920 1080) / 720P (1280 720) / D1 (720 576) / (640) / (640) 2CIF (704 288) / CIF (352 288); Main stream: 2880 1620 25fps 2560 1440 25fps 2304 1296 30fps 1920 1080 30fps; Second stream: 1280 720 30fps 720 576 30fps 640 360 30fps 704 288 30fps 352 288 30fps; Bitrate: 128Kbps 6144kbps; Video compression: H.265 / H.265+ / H.264 / MJPEG; Day/night: ICR; Illuminator type: IR LED; Illuminator: 50 m; Microphone: Yes; Audio Compression: G.711A / G.711U; Storage: NAS (NFS); Memory Card Slot: microSD 512 GB; Support: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android); Motion Detection: 4; Privacy Masks: 4; Network: RJ-45 10/100Mbps; Compatibility: ONVIF(S/G/T); Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, 802.1x, SNMP; Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication RTSP, Digest Authentication HTTP, TLS 1.2, WSSE, Digest Authentication ONVIF; Power Type: 12VDC / PoE(802.3af); Power consumption: max 5.6 W; Housing color: White; IP rating: IP67; Surge protection: 4 kV; Operating conditions: -30°C to +60°C max 95% RH; Dimensions: 190 73 71 mm; Weight: 0.45 kg; Housing: Metal; Ai - Built-in intelligent functions: Built-in intelligent image recognition and analysis algorithms; Ai - Perimeter protection: Intrusion into the area, crossing the line; Ai - Object recognition: Human recognition for intrusion into the area, crossing the line reduces false alarms.;.
€124,66
