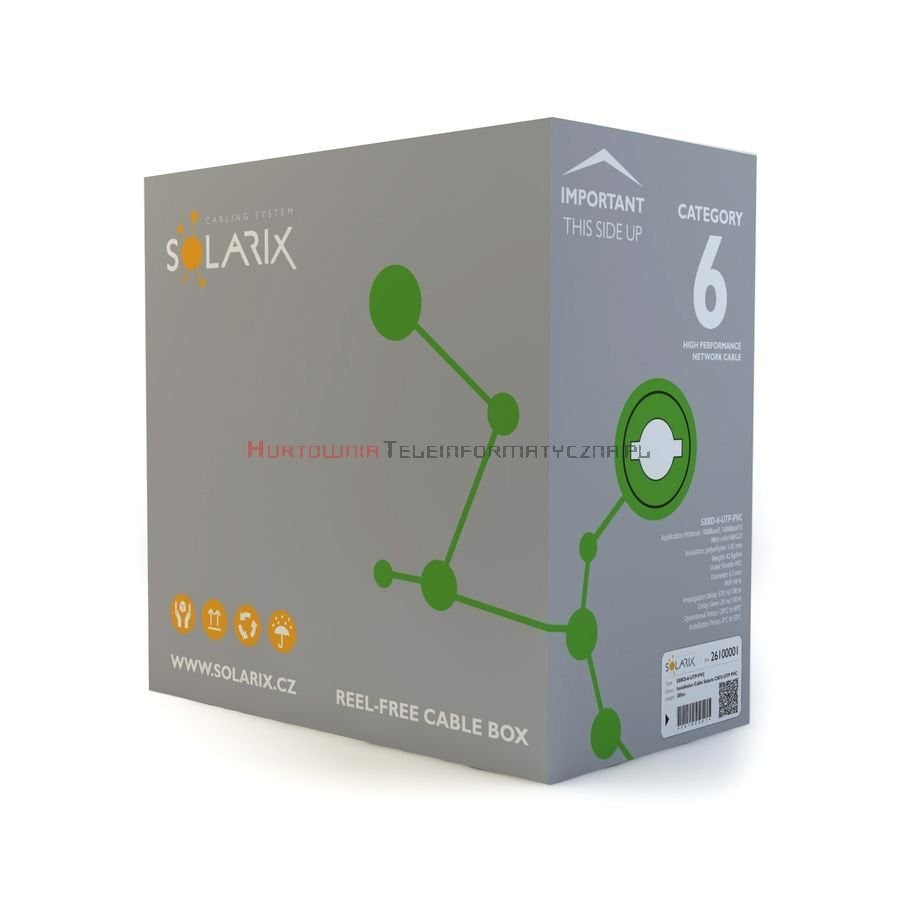

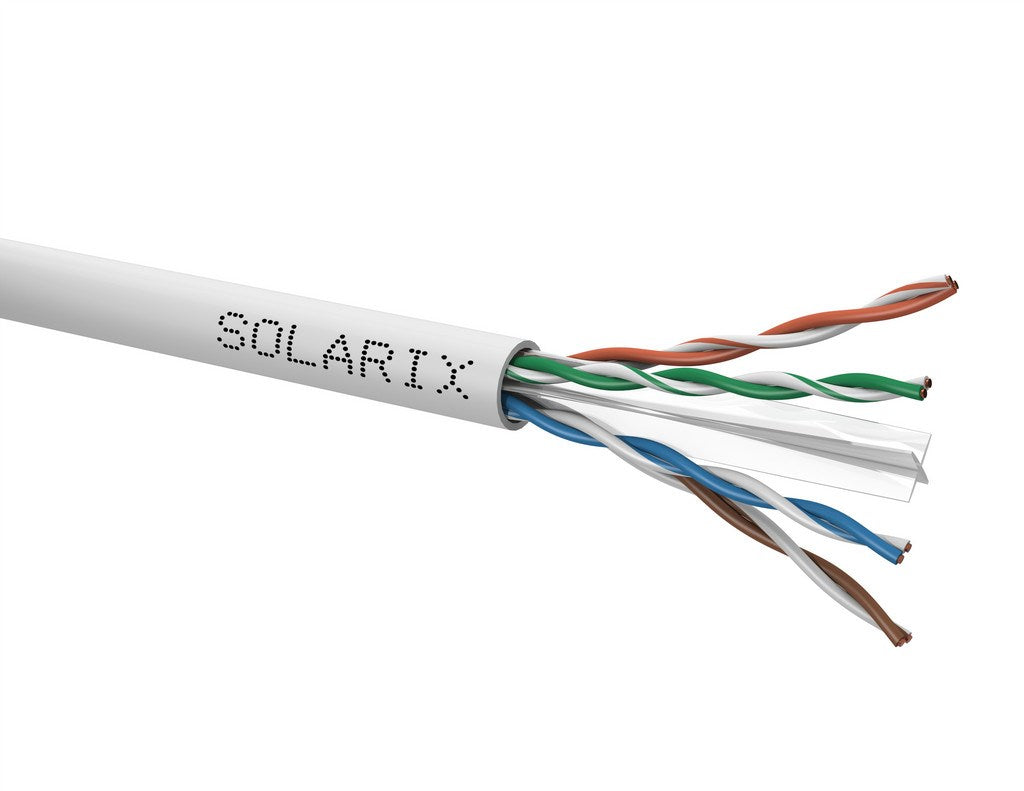

Solarix CAT6 UTP PVC installation cable 305m/boxSXKD-6-UTP-PVCLink to the manufacturer's website: https://www.solarix.cz/product.jsp?artno 26100001 Description This installation cable from the Solarix product line - category 6 with the designation SXKD-6-UTP-PVC is a high-quality cable designed for horizontal distribution of structured cabling, which easily meets and also exceeds the requirements specified in the international standards ANSI/TIA 568, ISO/IEC 11801 and EN 50173 for category 6 and class of wiring Class E, including all the latest amendments. Solarix - category 6 cables are supplied in shielded and unshielded versions with different types of sheath - i.e. PVC (fire reaction class Eca), LSOH (fire reaction class Eca) or UV stable PE (fire reaction class Fca). The conductors of these cables are made of high-quality copper wire with a size of AWG 23. Individual pairs are separated by a plastic cross. Like other Solarix cables, the SXKD-6-UTP-PVC cable is marked with 1m lengths in the range from 0 to 305m. The cable is delivered in a highly durable three-layer polished cardboard box, which contains all the necessary product information, including barcodes, production batch, description and the most important technical parameters. Technical specification Category: CAT6Supported protocols: 1000BaseT, 1000BaseTXShielding: noBandwidth: 250 MHzConductor type and size: copper wire 0.55 mmInsulation and conductor diameter with insulation: polyethylene 0.98 mmFire reaction class, sheath type: Eca, PVCSheath color: gray RAL 7035Cable diameter: 6.1 mmWeight: 43 kg/kmNVP: 69%Propagation delay: 535 ns/100 mDelay skew: ?45 ns/100 mStorage temperature: -20 °C to 60 °COperating temperature: -20 °C to 60 °CInstallation temperature: 0 °C to 50 °CPackaging: 305 m, three-layer cardboard boxPackaging dimensions (height x width x depth): 405 mm x 405 mm x 215 mm.
€239,80
