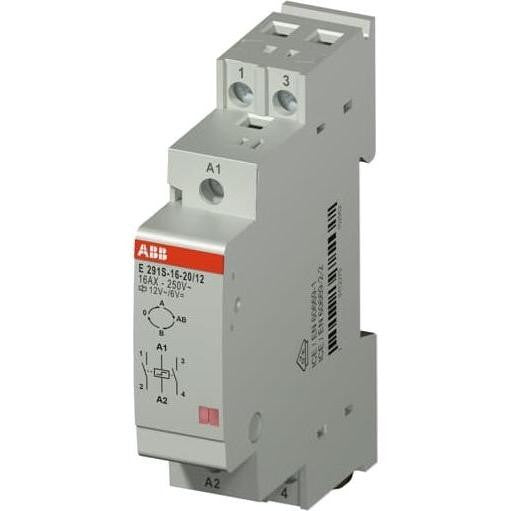

ABB Stotz S&J Series impulse switch E291S-16-20/12 Manufacturer: ABB Stotz S&J Description: Series impulse switch Voltage: 12 VAC Rated current: 16 A Number of make contacts: 2 Function: electronic for central control Mounting type: on DIN rail Width in step units: 1 Installation depth: 68 mm Control voltage 1: 24 V Type of control voltage 1: AC Frequency of control voltage 1: 50 Hz Control voltage 2: 12 V Type of control voltage 2: DC Frequency of control voltage 2: 50 Hz Rated switching current: 16 A Supply voltage: 250 V Supply voltage type: AC/DC Maximum load incandescent lamps: 4000 W Maximum load fluorescent lamps: 4000 VA Maximum load fluorescent lamps (Duo circuit): 3200 VA Maximum load fluorescent lamps (compensated in parallel): 4000 VA Maximum switching current (cos phi 0.6): 32 A Suitable for manual operation: yes The E291-S series impulse switch is equipped with two make contacts and allows a sequence of switching (0 A AB B 0). The predefined switching sequence of the main contacts allows the programmed switching on and off of several light circuits. The device is equipped with a clearly visible LED switching status indicator on the front. EAN: 7612270939923.
€83,68
