Description

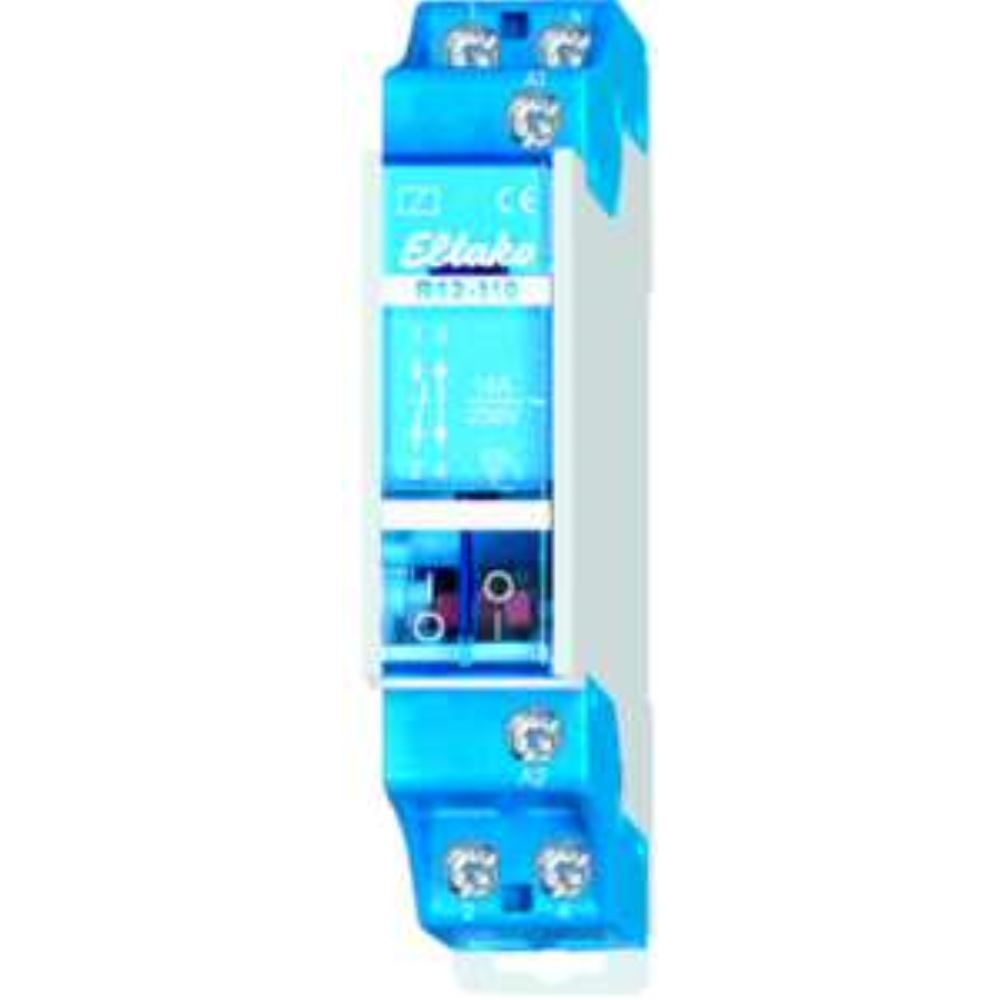

The Eltako R12-110-12V is a modular electromechanical switching relay designed for DIN-EN 60715 TH35 rail mounting. It features one normally open (NO) and one normally closed (NC) AgSnO₂ contact rated up to 8 A switching current at a 12 V nominal coil voltage. The relay offers manual override with position indication, consumes 1.9 W of coil power and withstands dielectric test voltages of 2 000 V between contacts and 4 000 V between coil and contacts. Measuring 18 mm in width and 55 mm in depth with IP20/IP50 protection, it supports a universal control voltage range of 8–253 V AC (50–60 Hz) and 10–230 V DC.
Key Features
- Nominal control voltage 12 V
- Max switching current 8 A
- 1 NO and 1 NC contact
- DIN rail TH35 mounting
- Manual operation with position indicator
- IP20/IP50 protection
Specifications
Brand: ELTAKO
Model Number: R12-110-12V
Product Type: switching relay
IP Rating: IP20, IP50
Height (mm): 55
Width (mm): 18
Depth (mm): 55
Switching Current Max A: 8
Nominal Control Power W: 1.9
Contact Material: AgSnO2
Contact Configuration: 1 NO (T), 1 NF (R)
Test Voltage Contact To Contact V: 2000
Test Voltage Coil To Contact V: 4000
Manual Operation: true
Mounting: DIN-EN 60715 TH35
Min Operating Temperature C: -5
Max Operating Temperature C: 50
Universal Control Voltage Range Ac V: 8–253
Universal Control Voltage Range Dc V: 10–230
Control Frequency Hz: 50–60
€123,08
