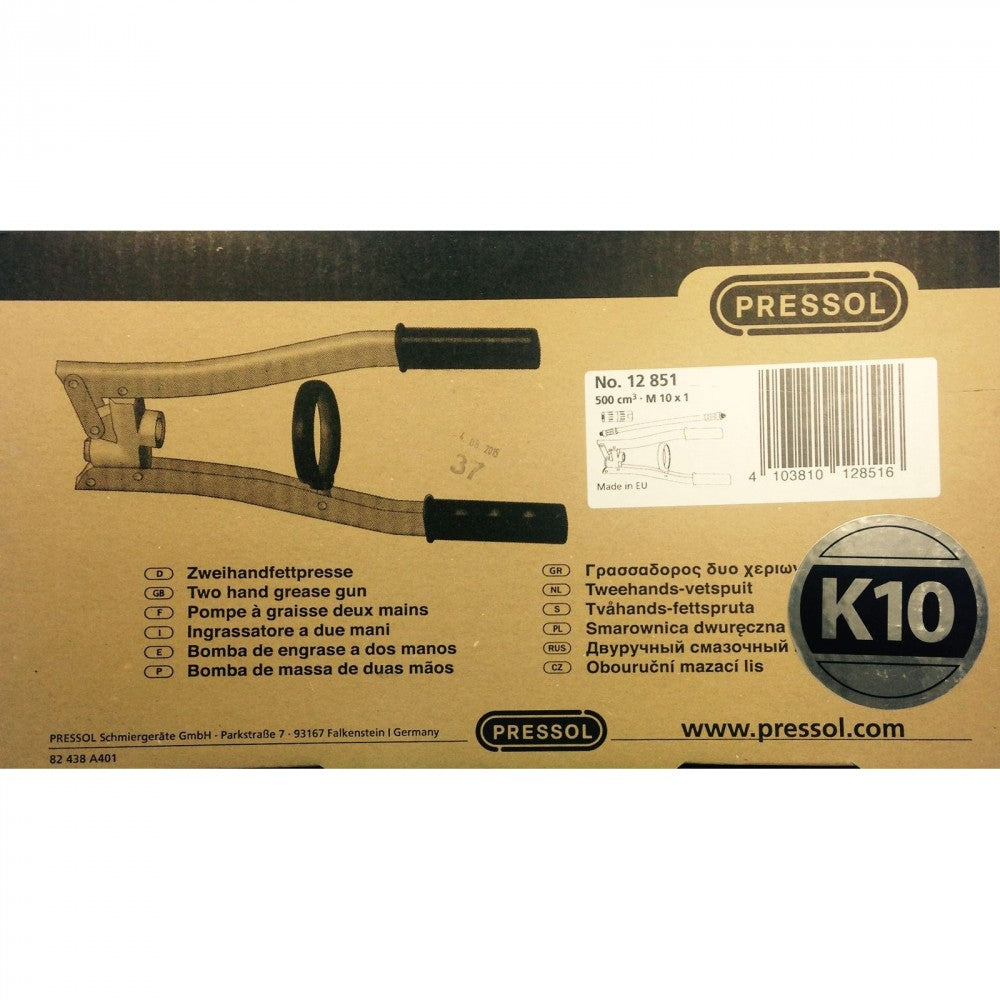

PRESSOL ZHFP M 10 x 1-PZ-MU 12851 Two-handed grease gun - Two-handed grease gun
· With hose holder
· Braided hose - M 10 x 1 a - 11 x 300 mm - with sealing ring (12 655 828)
· Precision nozzle - 4 BA - M 10 x 1 i (12 643)
Special features:
· Pump piston - cylinder and O-ring with 6 ? Precision fit (no false lubrication)
· Hand lever coated using cataphoresis
· Easy and quick cartridge change
· Complete emptying of the cartridge and therefore environmentally friendly
· Fill level and grease type visible
· The device processes greases up to NLGI 2 at 20 °C
· Simple design thanks to vacuum principle
· Environmentally friendly - due to complete emptying of the cartridge
· Premium handle - ergonomic and slip-resistant
Technical data:
Working pressure: 400 bar · Operating mode (mechanical/electronic): mechanical · Delivery rate: 1200 cm³ · Contents: 1 pc. · Product type: Grease gun · Product dimensions - width: 42 mm · Product dimensions - height: 200 mm · Product dimensions - length: 360 mm · Further technical data: Pressure-side connection: M 10 x 1
Diameter Grease pump piston: 10 mm
Maximum delivery pressure: 400 bar
System burst pressure: 850 bar
Grease gun head burst pressure: 1200 bar
Maximum delivery volume per stroke: 2 cm³ at a grease density of 0.92 kg/d³ - tested with EP2 multi-purpose grease
Filling: 500 g screw-on cartridge (12 524)
Weight: 1.08 kg
(12851)
