Description

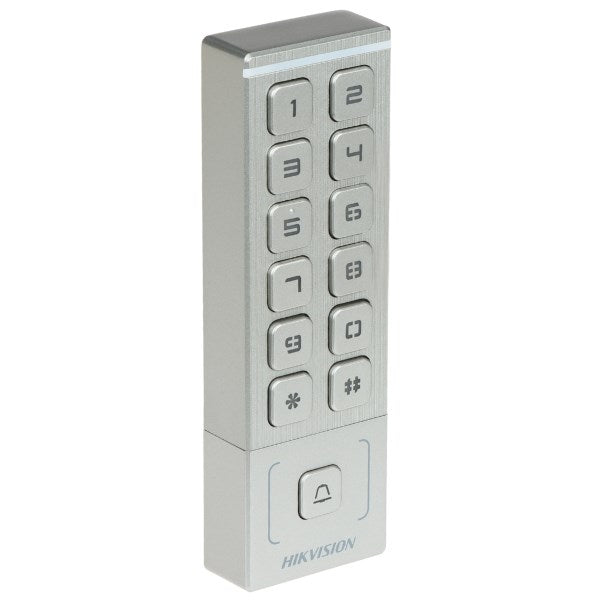

The Hikvision DS-K1T809MWX IP65 access control reader combines a slim design with a metal housing to withstand outdoor conditions and industrial environments. Certified to IP65 standards, it supports up to 1,000 users and 5,000 M1 cards with rapid 3 cm read range and one-second response time per credential. Authentication via card or PIN is complemented by Wiegand 26/34 output for integration with third-party security systems, while Wi-Fi and AP modes enable remote configuration and control through mobile or web applications. Physical buttons and LED indicators facilitate intuitive installation and user operation in temperatures from -40 °C to 65 °C.
Key Features
- IP65-rated metal housing
- Supports 1,000 users and 5,000 M1 cards
- 3 cm card read range with 1-second response
- Card, PIN and Wiegand 26/34 authentication outputs
- Wi-Fi and AP mode remote management
Specifications
Brand: Hikvision
Model Number: DS-K1T809MWX
IP Rating: IP65
Power Source: 12 V DC
Max Users: 1000
Max Cards: 5000
Card Reading Distance Cm: 3
Authentication Methods: M1 card, PIN
Wiegand Output Formats: 26-bit, 34-bit
Connectivity: Wi-Fi, AP mode
€99,51
