Description

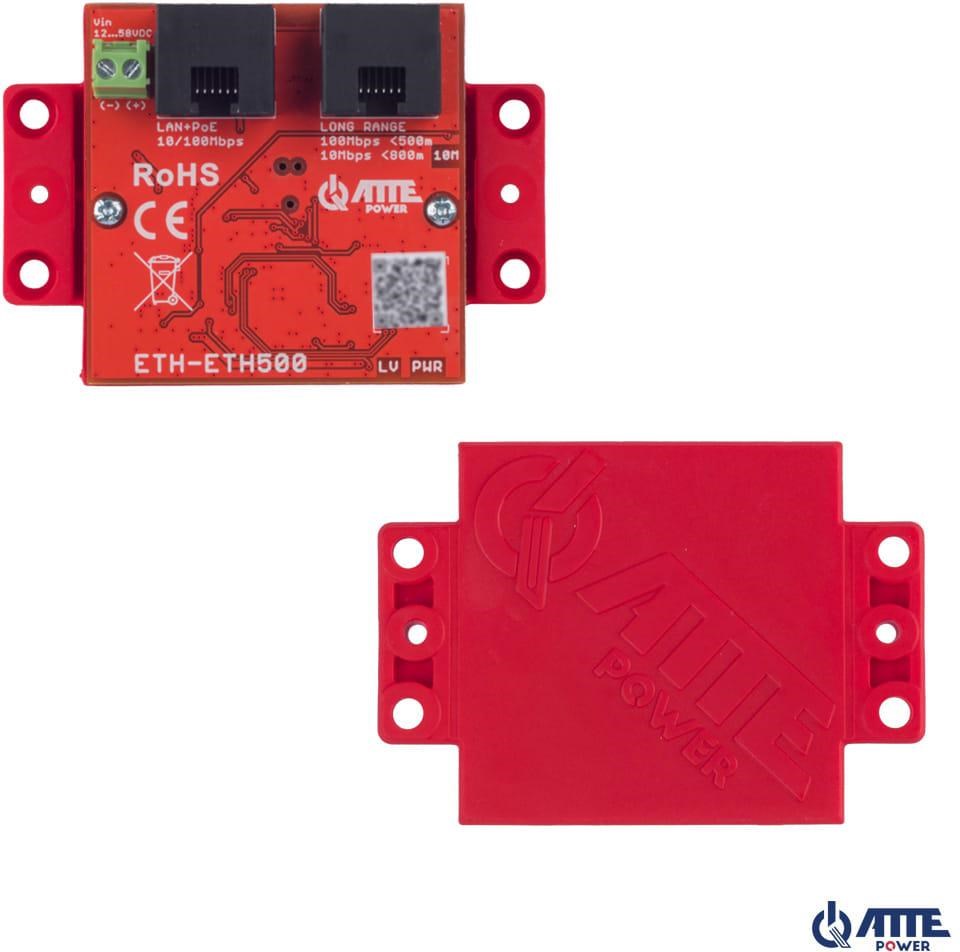

The ATTE ETH-ETH500-SET is a kit of two Ethernet and PoE extenders that carry network data and power over standard four-pair UTP cabling well beyond the 100 m limit. Installed between a PoE switch and a PoE device, it delivers 100 Mbps at distances up to 500 m and 10 Mbps up to 800 m, with PoE power up to 50 W at 250 m. The interchangeable modules require no configuration and feature LED indicators for power, network activity, bandwidth and low-voltage. This set is suited for CCTV, construction sites, photovoltaic farms and other wide-area installations.
Key Features
- 100 Mbps at up to 500 m and 10 Mbps at up to 800 m
- Supports IEEE 802.3af, IEEE 802.3at and passive PoE
- Modules interchangeable with no configuration
- LED indicators for power, network, bandwidth and low-voltage
- Delivers up to 50 W PoE at 250 m
- Uses standard four-pair UTP cable
Specifications
Brand: ATTE
Model Number: ETH-ETH500-SET
Product Type: Ethernet and PoE extender set
Product Category: Network and video-surveillance transmission accessory
Cable Type: Four-pair UTP cable
Minimum Recommended Cable Category: Category 5
Number Of Extender Modules Supplied: 2
Modules Interchangeable: true
Configuration Required: false
Maximum Transmission Distance M: 800
Maximum Throughput At 250M Mbps: 100
Maximum Poe Power At 250M W: 50
Maximum Throughput At 500M Mbps: 100
Maximum Poe Power At 500M W: 25
Maximum Throughput At 800M Mbps: 10
Maximum Poe Power At 800M W: 15
Supported Lan Speeds Mbps: 10, 100
Poe Input Support: IEEE 802.3af, IEEE 802.3at
Passive Poe Input Support: true
Poe Input Voltage Range V: 44–58
External Power Input Voltage Range V: 12–58
Poe Output Voltage Equal To Input: true
Power Consumption W: 1.35
Total Ports: 4 PoE ports and 2 screw terminals
Network Connector Type: RJ-45
External Power Connector Type: Screw terminal
Power Status Indicator: true
Poe Status Indicator: true
Network Link And Data Indicator: true
Bandwidth Indicator 10Mbps: true
Low Voltage Warning Indicator: true
Low Voltage Warning Threshold V: 44
IP Rating: IP20
Outdoor Enclosure Required: true
Minimum Recommended Outdoor Enclosure Rating: IP44
Minimum Operating Temperature C: -25
Maximum Operating Temperature C: 65
Module Width Mm: 51
Module Depth Mm: 51
Module Height Mm: 21
Width Including Mounting Base Mm: 73
Weight Per Module G: 26
Mounting Type: Universal mounting base
Mounting On Flat Surface: true
Mounting On Studs: true
Din Rail Mounting Possible: true
Compatible Din Rail: TH35
External Power Supplies Included: false
Poe Switch Included: false
Ip Camera Included: false
Quantity Supplied: 2
€515,17
