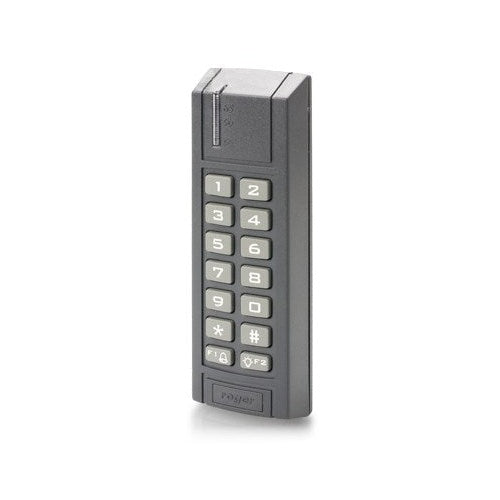

ROGER PR311SE-G Access Controller
€180,34
Description The Roger PR311SE-G is a professional outdoor access controller with an integrated EM 125 kHz proximity card reader and keypad. It operates standalone or as part of a networked Roger RACS system and supports card, PIN and combined card-and-PIN verification. The controller logs up to 1,000,000 events, manages 1,000 users in 250 access groups, and offers three NO/NC programmable inputs, two 1 A transistor outputs and one 1.5 A/30 V relay output plus additional reader support. It runs on 10–15 V DC (nominal 12 V DC) at 70 mA, includes tamper protection and a buzzer, and carries an IP67 rating for outdoor use from –25 °C to 60 °C. The unit measures 152.5 × 46 × 23 mm (depth 35 mm with spacer) and weighs approximately 150 g in a dark grey CE-certified enclosure. Key Features - Integrated EM 125 kHz proximity reader - Built-in keypad - Card and PIN authentication - Standalone or networked operation - RS485 and RACS communication - Event buffer up to 1,000,000 - Manage up to 1,000 users - 250 access groups - 3 NO/NC programmable inputs - 2 transistor outputs (1 A) - 1 relay output (1.5 A/30 V) - Supports additional reader - 10–15 V DC power - 70 mA average current - Tamper protection - Built-in buzzer - IP67 rating - Operating range –25 °C to 60 °C - Dimensions 152.5×46×23 mm (35 mm with spacer) - Approx. 150 g weight Specifications Brand: Roger Model Number: PR311SE-G Product Type: Access controller Color: Dark grey System Compatibility: Roger RACS Reader Type: EM 125 kHz proximity reader Card Standard: EM 125 kHz / EM4100 Built In Keypad: true Verification Types: Card, PIN code, Card and PIN Reading Frequency Khz: 125 Reading Distance Cm: 15 Communication Interfaces: RS485, RACS Operation Modes: Standalone, Networked Maximum Users: 1000 Access Groups: 250 Event Buffer: 1000000 Programmable Inputs: 3 Programmable Outputs: 2 Relay Outputs: 1 Relay Contact Rating: 1.5 A / 30 V Additional Reader Support: true Power Supply Min V: 10 Power Supply Max V: 15 Nominal Power Supply V: 12 Average Current Consumption Ma: 70 Tamper Protection: true Built In Buzzer: true IP Rating: IP67 Operating Temperature Min C: -25 Operating Temperature Max C: 60 Relative Humidity Percent: 10%–95% Width (mm): 152.5 Height (mm): 46 Depth (mm): 23 Depth With Spacer Mm: 35 Weight (g): 150 Certifications: CE
