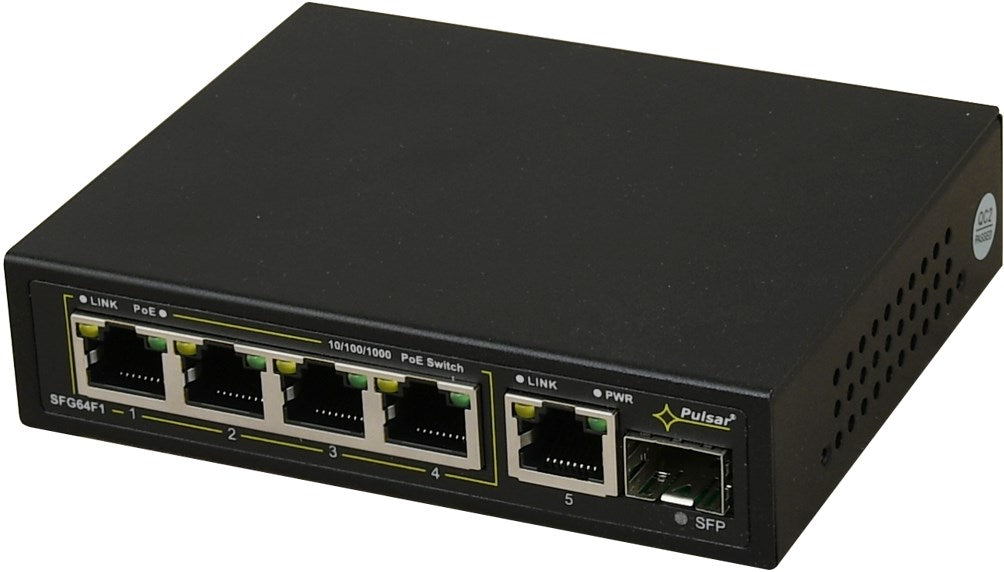

Pulsar SFG64F1 6-port PoE switch for 4 IP cameras Product code: SFG64F1. SFG64F1 6-port PoE switch for 4 IP cameras Application: SFG64F1 is a 6-port PoE switch designed to power IP cameras operating in the IEEE 802.3af/at standard. The switch on ports 1 to 4 has the function of automatic detection of devices powered in the PoE/PoE+ standard.; Power supply: 230VAC desktop power supply for 52VDC/1.15A/60W included; Number of ports: 6 ports (4xPoE + 1xUPLINK RJ45 + 1xUPLINK SFP socket); PoE power supply: 4 ports 10/100/1000 Mb/s IEEE 802.3af/at , 52VDC / 30W/port (PoE+); UPLINK ports: 1 10/100/1000 Mb/s TP port for connecting a recorder / switch / computer; SFP UPLINK slots: 1 10/100/1000 Mb/s SFP port for connecting additional network devices via fiber optics; Dimensions: W 118 H 28 D 95 +/- 2mm; supported protocols and standards: IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP; 30W/port maximum power of a single PoE port; 48W maximum power consumption by connected PoE ports; port sockets: RJ45 and SFP; the set includes plates for mounting the switch to the ground; SFG64F1 is a 6-port PoE switch designed to power IP cameras operating in the IEEE 802.3af/at standard. The switch on ports 1 to 4 features automatic detection of devices powered by the PoE/PoE+ standard. The UP LINK ports (marked 5 and SFP) are used to connect additional network devices (a GBIC insert must be used for the SFP port). The front panel features LED status indicators. PoE technology ensures a network connection and reduces installation costs by eliminating the need for a separate power cable to each device. In addition to cameras, this method can also power network devices that use this technology, such as IP phones, access points, and routers. Technical specifications: Ports: 6 10/100/1000Mb/s ports (4 x PoE + 2 x UP LINK) with auto-negotiation of connection speeds and auto MDI/MDIX; PoE power supply: IEEE 802.3af/at (ports 1-4), 52 V DC / 30 W per port; Protocols, Standards: IEEE802.3, 802.3u, 802.3x CSMA/CD, TCP/IP; Throughput: 12Gbps; Transmission method: Store-and-Forward; Optical operation signaling: Switch power supply; Link/Act; PoE Status; Power supply:; 100-240 V; 50/60 Hz; 1.3 A; desktop power supply PSD520115 52 V DC/1.15 A/60 W max.; Operating conditions:; Temperature -10 °C 40 °C,; Relative humidity 5% - 90%, non-condensing; Dimensions: W 118, H 28, D 95 +/- 2mm; Additional accessories: mounting plates to the ground; Net / gross weight: 0.6 / 0.8 kg; Protection class PN-EN 60950-1:2007: II (second); Storage temperature: -20 °C 60 °C; the stated value of 30 W per port is the maximum value. Total power consumption should not exceed 48 W.
€81,10
