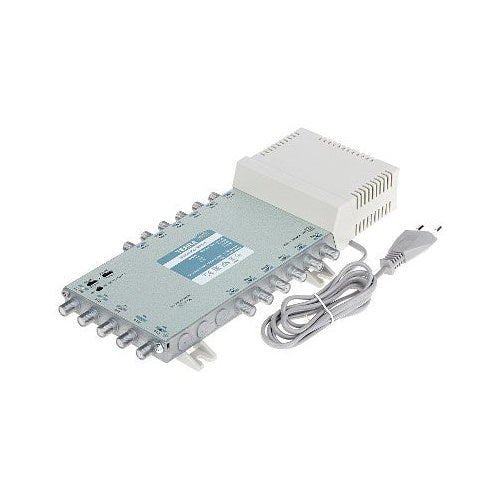

TERRA MR-512 MULTISWITCH 5 INPUTS / 12 OUTPUTS TERRA. Inputs: 4x 950 MHz.. 2400 MHz 1x 47 MHz.. 862 MHz - Active ; Outputs: 12x 47 MHz.. 2400 MHz ; Switching signals: 14 V / 18 V 0 Hz / 22 kHz ; Preamplifier power supply: 12 V DC . Weight: 0.9210; Length: 325; Width: 145; Height: 60; The MR series radial multiswitches are dedicated to small and medium (4-70 sockets) installations with the distribution of SAT intermediate frequency signal and terrestrial television signal. The MR series is designed for installation in systems based wholly or partially on a star topology, where wires from end sockets converge at the multiswitch or multiswitch group. They are therefore ideal for use in single- or multi-family homes. The die-cast housing guarantees a high level of shielding – Class A. Inputs: 4x 950 MHz.. 2400 MHz. 1x 47 MHz.. 862 MHz – Active. Outputs: 12x 47 MHz.. 2400 MHz. Switching signals: 14 V / 18 V. 0 Hz / 22 kHz. SAT gain (cable pre-equalization): -2 & x a0.. 8 dB TV gain (cable pre-equalization): -3 & x a0.. 5 dB Separation: Between SAT/SAT inputs 30 dB SAT outputs 30 dB DVB-TMaximum output level SAT: 96 dB VMaximum output level TV: 84 & x a0.. 88 dB V Preamplifier power supply: 12 V DC Power supply: 230 V AC Dimensions: 293 x 135 x 52 mm Weight: 0.82 kg Manufacturer / Brand: TERRA Warranty: 2 years.
€196,87
