Description

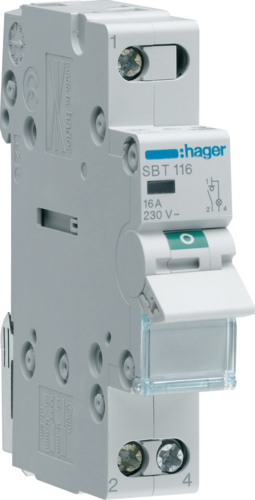

The Hager SBT116 is a 1-pole (1P) circuit breaker rated at 16 A with an AC input voltage of 440 V and 50/60 Hz frequency. It features screw terminals for modular component connection and offers a short-circuit making capacity of 0.33 kA at 240 V AC. The device measures 17.5 mm in width, 83 mm in height and 68 mm in depth with an IP20 protection rating. It is suitable for AC21A and AC22B operating categories with a nominal duration withstand current of 0.24 kA for 1 s.
Key Features
- 1-pole 16 A circuit breaker
- AC input voltage 440 V, 50/60 Hz
- Short-circuit making capacity 0.33 kA at 240 V AC
- IP20 protection class
- Width 17.5 mm, Height 83 mm
Specifications
Brand: Hager
Model Number: SBT116
Product Type: Circuit breaker
Color: Grey
Width (mm): 17.5
Height (mm): 83
Depth (mm): 68
Ac Input Voltage V: 440
Ac Input Frequency Hz: 50-60
Nominal Current A: 16
Protection Features: IP20
Mounting Type: Screw terminal
€80,29
