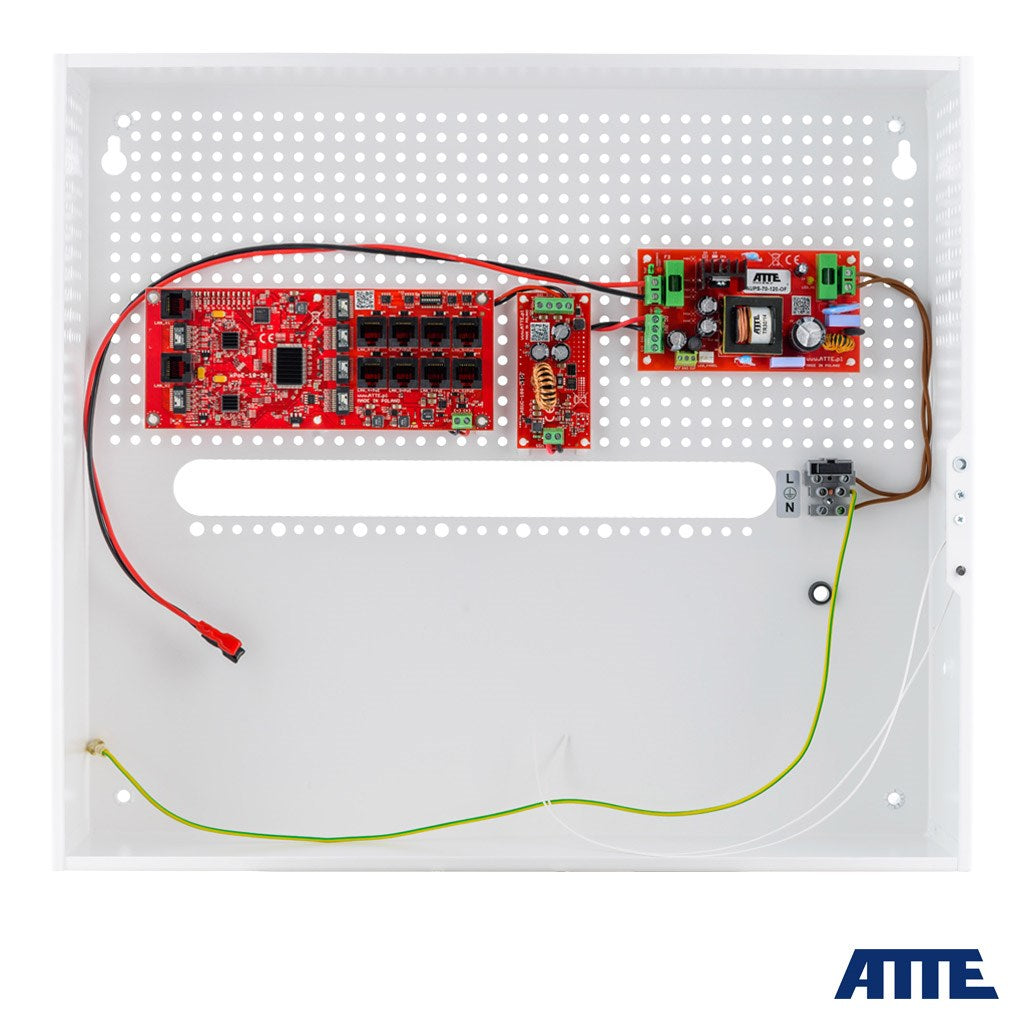

Buffer kit for 8 IP cameras, in the ABOX-H internal housing (1x AKU 18Ah + NVR), 72W power supply, 10-port PoE switch (8xPoE 10/100Mbps + 2xGigabit Uplink), electronic fuses, type IPUPS-8-20-H. Key features and functions: supports 4K Ultra HD cameras; can buffer powering of 8 802.3at/af or PASSIVE PoE receivers; electronic fuse independently for each PoE channel (auto return); ability to turn off power on PoE ports; clear optical indication of power and data transmission status; up to 40W of power on PoE ports (LAN 1 to LAN 8); quick and easy start-up without the need to configure parameters; high efficiency of the power supply module (90%); two supply voltage values available: 12VDC and 48VDC; easy and quick installation service thanks to the modular design; easy expansion and scalability of the system by adding additional xPoE / IP and IPB / IPUPS series switches; module installation in any hole-punched part of the housing (raster system); space for two 18Ah batteries; space for a video recorder (NVR); ability to keep spare cables inside the housing; cable entries at the back of the housing; distance from the wall/mounting surface; The set includes: 1x ABOX-H housing; 1x AUPS-70-120-OF power supply; 1x ASUC-100-480-OF converter; 1x xPoE-10-20A-OF switch; Application example.
€345,71
