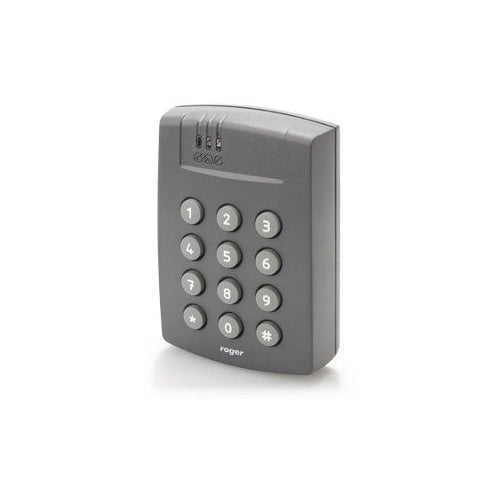

Roger PRT64EM-G IP65 Outdoor Proximity Reader. The set includes: 1 Roger PRT64EM-G reader; Download the manual in the "Additional Information" section at the bottom of the page. The Roger PRT64EM-G EXTERNAL PROXIMITY READER is an access terminal designed to work with EM 125 kHz Unique proximity cards. It connects to an access controller (i.e., its role is to read the card/code and send it to the controller), but it can also operate standalone. This way, you can build a simple access control system that controls just a single door. The readers allow for configuration of several different output formats (including the popular WIEGAND). This type of transmission means they can be used with a very large number of third-party access controllers. When the reader is paired with the RARC program, the device can act as a programmer. This reader has a built-in backlit keypad and 2 function keys (these can be freely configured in the RACS access control system). It can work outdoors (0.5 m connection cable). PRODUCT FEATURES: EM 125 kHz cards; configurable output data transmission format: Wiegand 26.66 bit, Magstripe (Clock & Data), RS232, RACS (Roger); various variants of PIN and keypad code transmission; separate inputs for controlling the LED indicator and speaker; can operate as an EMC-4 card programmer (in cooperation with the free RARC program); manual or computer programming; can operate autonomously as a standalone access control point; 120 indexed users; identification: Card and/or PIN; 1024 event history; programmable 1.5A/30V relay output; 2 NO/NC inputs; 2 transistor outputs; Possibility of connecting an XM-2 I/O expander; Possibility of connecting an additional PRT series reader (bilateral door control); Anti-sabotage protection (tamper); CE mark; New fv1.34 firmware (RARC 1.4.4.476 required) enables: configuring the functions of the IN1 and IN2 input lines of the reader configured for Wiegand or Magstripe mode (currently, it is possible to configure each line to control any LED indicator and the internal speaker); Selecting the method of masking the LED STATUS indicator in standalone modes to hide the current arming status of the reader. You can choose between pulsing or completely turning off this indicator. Possibility of enabling an option that causes the door lock control output to be triggered as long as the card is in the reader's magnetic field.; TECHNICAL SPECIFICATIONS: . reading range: max. 15 cm; tamper protection: NC contact, 50 mA / 24V, IP67; cards: EM 125 KHz (compatible with EM4100/4102); distance between reader and controller: max. 150 m; distance between 2 PRT readers: max. 150 m; distance between reader and XM-2 expansion module: max. 150 m; protection rating: IP65; environmental class (according to EN50131-1): IV; operating temperature: -25 degrees C.. +40 degrees C; relative humidity: 10-95% (none-condensing); supply voltage: 12V DC (nominal), 10-15V DC (permissible); current consumption (average): 65 mA; dimensions: 115 x 80 x 35 mm; weight: 120 g; .
€115,69
