Description

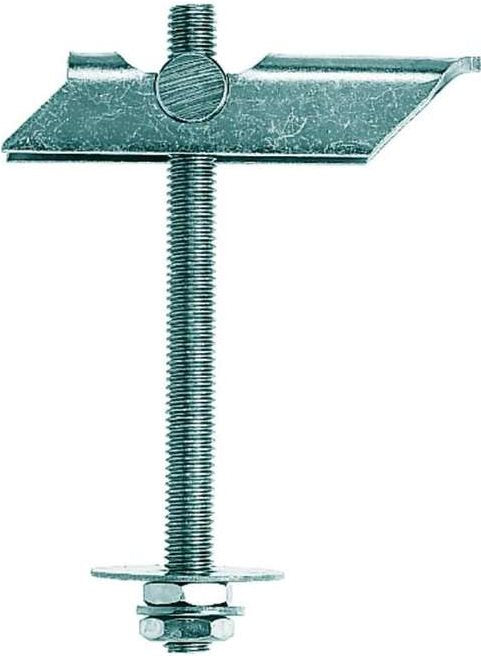

The fischer Gravity Toggle KD 6 (model 80185) is an M6 steel toggle fixing for cavity materials and panel building boards. It measures 100 mm in length, requires a 16 mm drill hole, a minimum cavity depth of 70 mm and accommodates panel thicknesses up to 63 mm. The electro-galvanised steel anchor has a self-opening toggle mechanism and includes a washer and hexagon nut; the pack contains 25 pieces.
Key Features
- Gravity toggle fixing
- M6 thread size
- 100 mm length
- 16 mm drill hole diameter
- Minimum cavity depth 70 mm
- Maximum panel thickness 63 mm
- Electro-galvanised steel material
- Self-opening toggle
- Washer and hexagon nut included
- Pack of 25 pieces
Specifications
Brand: fischer
Model Number: 80185
Product Type: Toggle fixing
Material: Steel
Surface Finish: Electro-galvanised
Thread Size: M6
Length (mm): 100
Drill Hole Diameter Mm: 16
Minimum Cavity Depth Mm: 70
Maximum Panel Thickness Mm: 63
Installation Type: Pre-positioned installation
Self Opening Toggle: true
Washer Included: true
Hexagon Nut Included: true
Pack Quantity: 25
€128,28
