Description

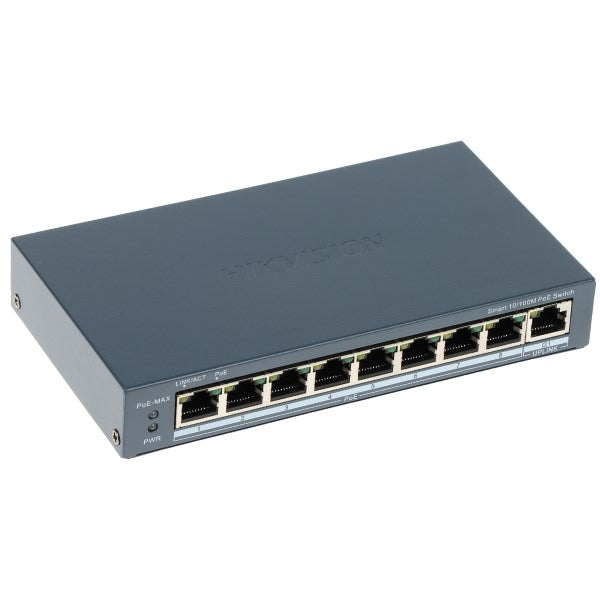

The Hikvision DS-3E1309P-EI(B) is a 9-port PoE switch featuring eight 10/100 Mbps PoE+ RJ45 ports and one 10/100/1000 Mbps uplink port for high-speed backbone connections. Each PoE+ port supports IEEE 802.3af/at with up to 30 W per port and a total budget of 120 W, while extended PoE mode reaches up to 300 m for long-distance deployments. Management can be performed via Web, Hik-Partner Pro, or Hik-Central Pro interfaces, and networking protocols such as STP, RSTP, LLDP, and SNMP v1/v2c enhance topology control and monitoring. Advanced features include static link aggregation, support for up to 32 VLANs, port isolation, and a PoE Watchdog for automatic device reboot.
Key Features
- 8 PoE+ RJ45 ports
- 1 Gigabit uplink port
- Up to 30 W per PoE port
- 120 W total PoE budget
- Extended PoE up to 300 m
- Supports IEEE 802.3af/at
Specifications
Brand: Hikvision
Model Number: DS-3E1309P-EI(B)
Product Type: PoE switch
Poe Plus: true
Poe Standard: 802.3af/at
Poe Power Per Port W: 30
Total Poe Power W: 120
Poe Extended Max Distance M: 300
Poe Port Count: 8
Uplink Port Count: 1
Uplink Port Speed Mbps: 1000
Downlink Port Speed Mbps: 100
Management Protocols: Web, Hik-Partner Pro, Hik-Central Pro
Stp: true
Rstp: true
Lldp: true
Snmp Versions: v1, v2c
Vlans Supported: 32
Link Aggregation: static
Poe Watchdog: true
€109,01
