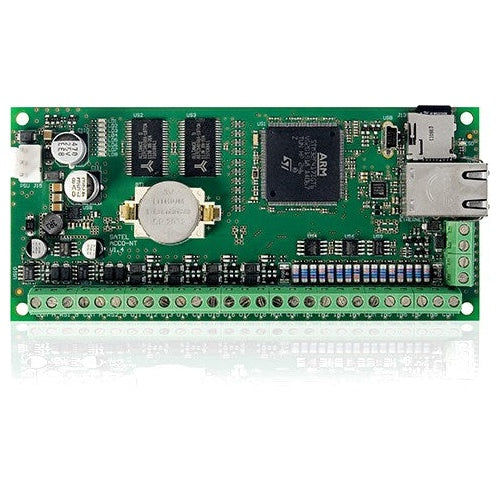

ACCO-NT2 ACCESS CONTROL PANEL SATEL. The ACCO-NT2 access control panel is a component of the ACCO NET access control system. A single ACCO-NT2 control panel can be integrated with multiple intruder alarm systems based on control panels from the INTEGRA and INTEGRA Plus family. The key advantages of ACCO-NET include: system centralization, the ability to include any number of facilities and control panels within a given facility, as well as the ability to administer the system via a browser. The ACCO-NT2 control panel features the option of programming complex logical operations on outputs, enabling the implementation of non-standard control functions. Note! A server with the Debian operating system is required for the ACCO NET system to operate. Inputs: 8 pcs - Max. 264 inputs on the motherboard Outputs: 8 pcs - Max. 264 Communication: 2 x RS-485 Expander bus - up to 32 expansion modulesEvent memory: Events recorded on a micro SD card (included) Recording of up to 1,000,000 events from the control panel, Max. 100,000 events read from each access control moduleUsers + administrators: 8,000 + 1 Max. 65,000 users in the entire ACCO NET system Output load capacity: OC : 50 mA / 12 V DC +EX : 0.5 A / 12 V DC AUX : 0.5 A / 12 V DC Selected features: Support for up to 255 access control modules Possibility to create up to 255 zones in 1 control panel (up to 255 access control modules can be defined in a zone) Possibility to add up to 16 passage paths (up to 16 zones can be defined in each path) Possibility to unblock or block a zone at a specific time or according to an access calendar Possibility to assign 4 identifiers and a keyfob to one user Possibility to assign up to 4 proximity cards / DALLAS chips to a user Up to 256 access calendars, weekly schedules, daily schemes, time frames Possibility to control control panel outputs using keyfobs Implementation of logical functions at inputs and outputs Support for tripods (turnstiles) Electrical protection of all inputs and outputs and communication buses Power supply: 12 V DC / 140 mA (max) Battery operation: Operating temperature: -10 °C.. 55 °C Permissible relative ambient humidity: 93 % (no condensation) Weight: 0.096 kg Dimensions: 151 x 69 x 17 mm Manufacturer / Brand: SATEL Warranty: 2 years.
€412,78
