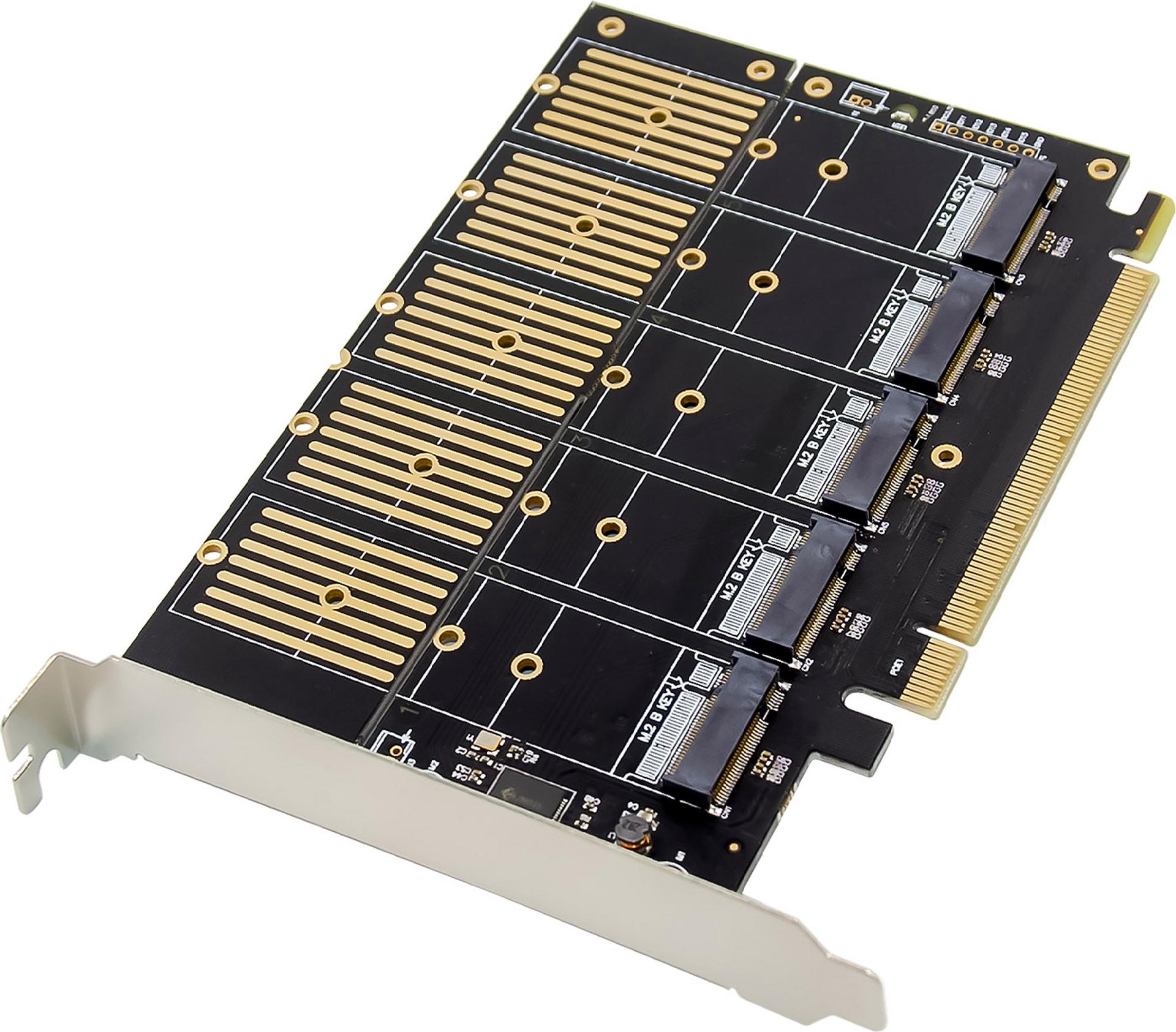

Flexible storage expansion via PCIe x16 slot: Adds up to five SATA ports via M.2 Key B adapter cards, ideal for compact storage solutions. High compatibility with M.2 SATA SSDs: Supports M.2 B-Key and B+M-Key SSDs in the 2230, 2242, 2260, and 2280 form factors. Modern SATA functionality: Supports AHCI, NCQ, port multiplier (Command/FIS), staggered startup, and power-saving modes. Reliable data transfer: Up to 6 Gb/s per port according to SATA Revision 3.2, ideal for performance-critical applications. Includes accessories for immediate use: Supplied with five M.2-to-SATA adapters, heatsinks, cables, and a low-profile bracket for versatile installation scenarios. The InLine PCIe interface card with JMB585 controller is the ideal solution. Expand your system with up to five additional SATA ports. The card utilizes a PCIe x16 interface, providing two PCIe lanes according to standard 3.1a for maximum bandwidth. Included adapter cards allow for the secure and efficient integration of M.2 SATA SSDs with Key B or B+M into existing storage systems. All common form factors such as 2230, 2242, 2260, and 2280 are supported, making it ideal for compact and high-performance storage solutions. Each of the five interfaces delivers up to 6 Gb/s according to SATA 3.2. Important features such as AHCI, Native Command Queue (NCQ), port multiplication, and power-saving modes (Slumber/Partial) are also supported. The card is ideal for servers, workstations, or high-performance desktop systems requiring additional storage space or specialized RAID setups. Thanks to staggered boot and supported command structure, the system remains stable even with multiple drives. Installation is achieved by simply inserting the PCIe card and connecting the adapters to M.2 SSDs. Included in the package are all necessary cables, heatsinks, a low-profile mounting bracket, and a screwdriver for immediate and flexible use. PCIe standard: PCIe v3.1a, up to 2 PCIe lanes usable. Interface: PCIe x16 lane. SATA standard: SATA 6 Gb/s, SATA Revision 3.2. Connections: 5x M.2 Key B ports (via expansion cards). Compatible SSD types: M.2 B-Key and B+M-Key (2230 / 2242 / 2260 / 2280). Transfer rate: up to 6 Gb/s per port. Chipset: JMB585. Port multiplication: Supported (command- and FIS-based). AHCI mode: Supported (standard protocol for SATA SSDs/HDDs). Native Command Queue (NCQ): Supported. SATA power saving functions: Supported (partial / slumber). Staggered boot: Supported operating temperature: 0 °C to 55 °C; Storage temperature: -40 °C to 70 °C; Maximum humidity: 90%, non-condensing; Supported operating systems: Windows 7 / 8 / 8.1 / 10 / 11, Linux; Scope of delivery: 1x InLine PCIe x16 interface card, 5x M.2 Key B SATA; 1x Low-profile slot bracket; 5x M.2 Key B to SATA expansion cards; 5x SATA cables; 5x heatsinks; 5x screws; 1x screwdriver; 1x User manual German/English - I/O cards / front panel / slot brackets; I/O cards - InLine interface card, PCIe x16 to 5x M.2 Key B SATA, incl. low-profile.
€136,00
