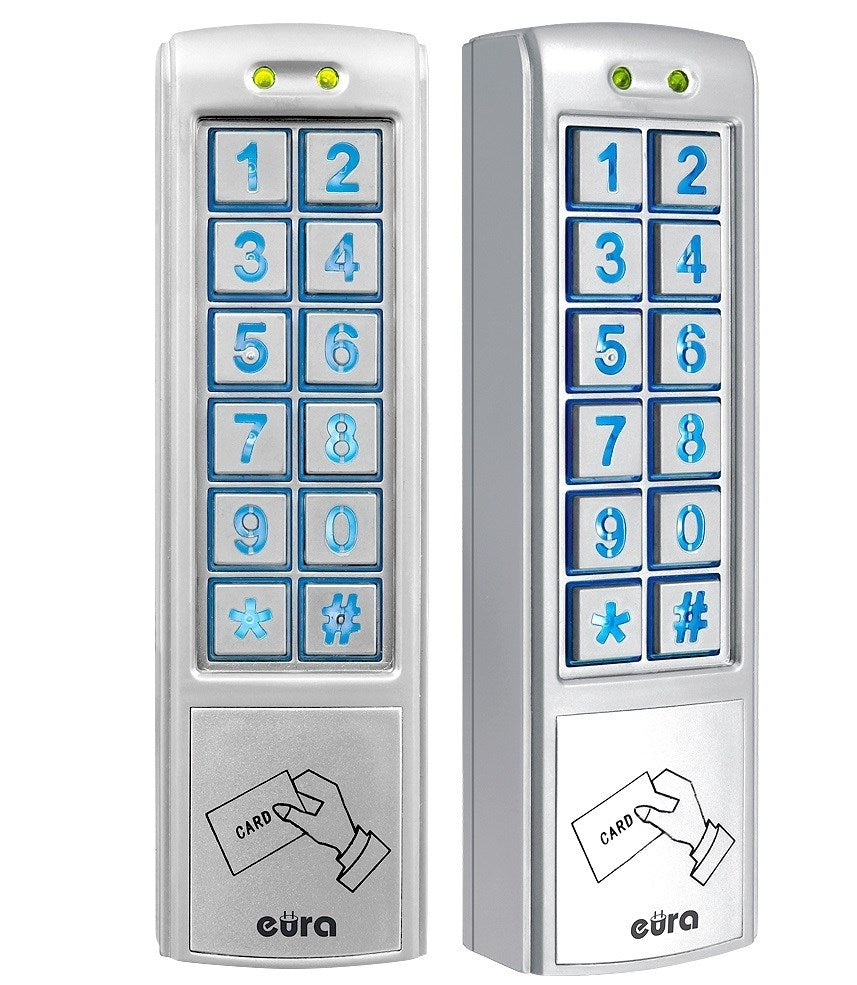

"EURA" AC-30C7 CODE LOCK - FOR OUTDOOR MOUNTING, WATERPROOF AND VANDAL-RESISTANT - EASY INSTALLATION, IDEAL FOR NARROW POST - ILLUMINATED KEYS - 4 PROXIMITY KEY TAGS INCLUDED - SUPPORTS 2 ZONES (ENTRIES) The AC-30C7 code lock is a device designed for use in security systems. The device has two relay outputs that can control entrances to the property. For example, an electromagnetic bolt opening a gate or entrance door can be connected to the output. All lock functions are programmed using the numeric keypad. After programming the device, you can later control entry to the property in three ways: entry only using an ID proximity key fob; Entry using a combination of: proximity key fob and 4-digit access code; entry using a proximity key fob or 4-digit access code.; The AC-30C7 combination lock is enclosed in a solid, vandal-resistant and watertight housing, which allows it to be installed virtually anywhere, both inside and outside the building. There is a numeric keypad on the front of the device. Sections of cables connecting the device to the power supply, the electromagnetic lock, and optionally to other devices are externally led out. TECHNICAL SPECIFICATIONS. Supply voltage: 12-24 V DC or AC; Current consumption - standby / on: 30 mA / 160 mA; Output types: Output 1: NC & NO relay 2A/30VDC, Output 2: NC & NO relay 2A/30VDC; Communication type: Wired; Mounting method: Surface-mounted; Bolt activation time: 0-99 s (programmed from the keypad); Intended for doors: all; Housing material: Aluminum; Reader operating frequency: 125 kHz; RF ID reading range: up to 5 cm; Available operating modes: Only key fob / key fob or code / key fob + code; Maximum number of users: 1000 codes / key fobs / codes+key fobs (zone 1), 10 codes / key fobs / codes+key fobs (zone 2); Proximity reader: Yes (key fob); Encryptor: Yes (backlit keys); Operating temperature range: -18°C +50°C; Protection factor: IP55; Dimensions (H x W x D): 150 x 44 x 24 mm; Net weight: 410 g; Logistics data . Packaging dimensions (H x W x D): 157 x 71 x 55 mm; Gross package weight: 457 g; Packaging type: Cardboard; THE SET INCLUDES: . combination lock; 4 proximity key fobs; mounting elements; mounting template; .
€100,27
