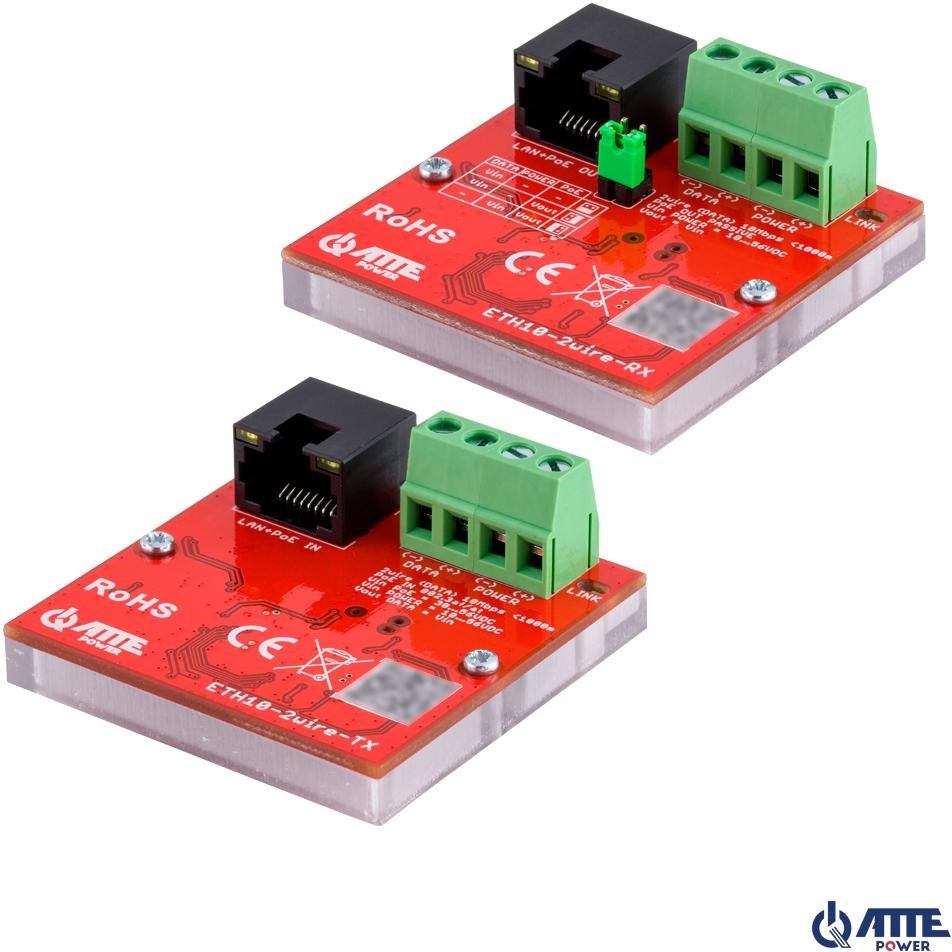

Atte Power ETH10-2wire-A-SET is a professional set of active converters designed for the transmission of Ethernet data and PoE power over just two wires, enabling 10 Mbps LAN communications over distances of up to 1000 m. The solution is ideal for installations where replacing existing cabling is not possible or too expensive, such as in old buildings, parking lots, industrial halls or underground routes. The set consists of a TX module (transmitter) and an RX module (receiver). The TX module is powered directly from a PoE switch and transmits both data and power over a two-wire line to the RX module, which in turn powers the IP camera or other connected PoE equipment. The system supports PoE 802.3af / at / bt standards, but also allows alternative power supply through dedicated terminals when PoE is not available. Due to the high resistance to interference, ETH10-2wire-A-SET can work on different types of cables, but maximum performance is achieved using a twisted pair of a UTP cable. Integrated LED indicators provide clear information about power, data transmission, PoE presence and insufficient voltage. The compact design and flexible mounting make this set suitable for video surveillance applications, access control and extending IP networks over long distances.
€120,63
