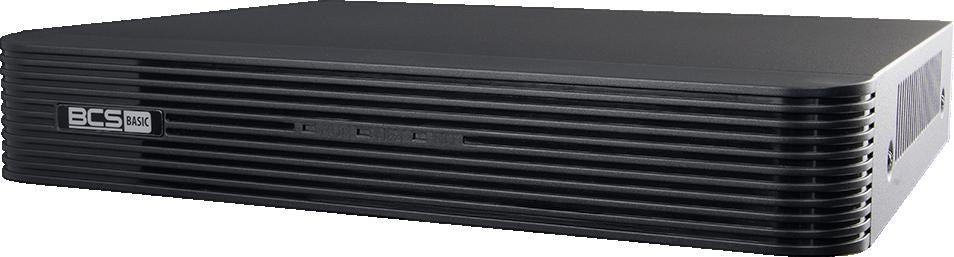

IP Recorder for 4 cameras BCS-B-NVR0401(2.0) Up to 4 cameras up to 8Mpx 1 HDD slot H.265 compression supported in the app . Universal IP recorder 4-channel, 1-disk recorder adapted to work with IP cameras with a maximum resolution of 8Mpx. Recorder features: . Support for 4 IP channels ; Support for P2P mobile application ; High resolution recordings up to 4K ; H.265/H.265+ image encoding ; Support for HDD with a maximum capacity of 6TB ; HDMI and VGA video outputs ; Recording archiving via USB port; ONVIF protocol support ; Technical specifications: System: IP; Channels: 4; Max. camera resolution: 8 Mpx; Drive space: 1; Max. disk capacity: 6 TB; Input / Output bandwidth: 40 Mbps/ 40 Mbps; Video outputs: HDMI 4K / VGA; USB interfaces: 2; Audio input/output: 0/1; Support: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android); RJ-45 network: Ethernet (10/100Mbps); Operating conditions: -10°C +55°C max 90% RH; Dimensions: (WDH)260 243 46mm; Weight: (without drives): 1 kg; Remote system operation BCS Basic monitoring systems can be controlled, configured and operated using an intuitive mobile application for smartphones and tablets and the BCS Manager software for PCs. This allows the user to have constant control and supervision of the monitored space from any location on earth with network access. Motion detection support The recorder supports motion detection from network cameras. This function allows you to send immediate notifications to the user (in the application or program) when changes are detected in the camera image, and also allows you to search recordings for detected motion in the monitored area. H.265 Compression The recorder supports the efficient image compression standard marked H.265. This standard is the direct successor to the popular H.264 technology and allows for almost a two-fold reduction in bandwidth. This translates into significant hard drive space savings and extended recording archiving time. Technical Specifications: Device Name: BCS-B-NVR0401(2.0); Product Line: BCS BASIC; System: IP; Pentaplex function: Live view / recording / playback / archiving / remote access; Channels: 4; Drives: 1; Drive capacity: 6 TB; Max recording resolution: 8 Mpx; Input bandwidth: 64Mbps; Output bandwidth: 32Mbps; Display Performance: 1 8M(30fps) / 1 5M(30fps) / 2 4M(30fps) / 4 3M(25fps) / 4 2M(30fps); Recording Resolution: 8M / 6M / 5M / 4M / 3M / 2M / 960P / 720P / D1 / 2CIF / CIF/ QCIF; Video Compression: H.265+ / H265 / H.264+ / H.264; Video Output: HDMI4K/VGA; HDMI Display Resolution: 3840 2160 / 1920 1080 / 1600 1200 / 1280 1024 / 1280 720 / 1024 768; VGA display resolution: 1920 1080 / 1600 1200 / 1280 1024 / 1280 720 / 1024 768; Output split: 1/4; Playback: 1/4; Archiving: Possibility of saving material to external media such as USB FLASH, USB HDD; Users: 128; Interfaces: 2 USB2.0; Audio output: 1; Support: Local, Web Service, CMS BCS Manager (Windows / Linux / MAC), Mobile App (iOS, android); Network: RJ-45 10/100/1000Mbps; Compatibility: ONVIF; Protocols: P2P, UPnP, DHCP; Power supply: 12V DC; Power consumption (without drives): max 3W; Operating conditions: -10°C +55°C max 90% RH; Dimensions (WDH): 260 243 46mm; Weight (without disks): 1 kg; .
€104,63
