Description

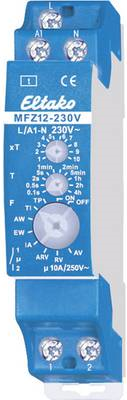

ELTAKO 23100530 MFZ12-230V is a multifunction analog time relay offering 10 selectable timing functions with an adjustable range from 0.1 seconds up to 40 hours. It features a single potential-free NO contact rated for 10 A at 250 V AC, supports a maximum output of 230 V AC and 1000 W switching capacity, and uses screw terminal connections with copper contact material. The device consumes just 0.4 W in standby and mounts on a DIN rail in a compact 66 mm high, 18 mm wide and 58 mm deep module. An LED indicator under the central snap-action rotary switch displays contact status and sets the base time function.
Key Features
- 10 multifunction timing modes
- Time range 0.1 s to 40 h
- Single NO contact rated 10 A at 250 V AC
- Standby power loss 0.4 W
- Compact 66×18×58 mm DIN-rail housing
- Screw terminal connection
Specifications
Brand: ELTAKO
Model Number: 23100530 MFZ12-230V
Product Type: multifunction time relay
Power Source: 230 V AC
Width (mm): 18
Height (mm): 66
Depth (mm): 58
Switching Current A: 10
Max Switching Power W: 1000
Standby Power Loss W: 0.4
Number Of Functions: 10
Connection: screw terminal
Contact Material: copper
Time Range Min S: 0.1
Time Range Max H: 40
€128,28
