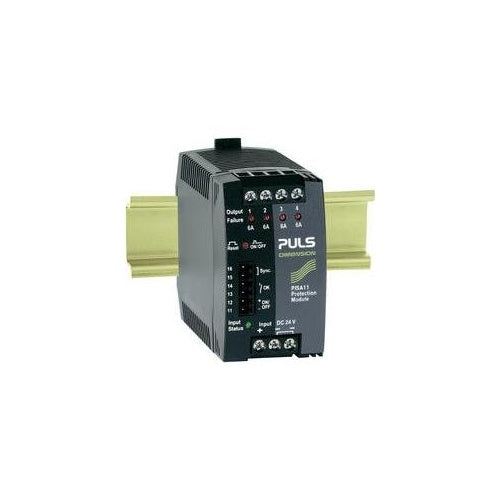

PULS DIMENSION PISA11.406 4-Channel Fuse Module - 24 V/DC, 4 x 6 A - PISA11.406
€156,35
Description The PULS DIMENSION PISA11.406 module provides four 6 A outputs from a 24 V DC source, with a total output capability of 20 A. Its adjustable input gate prevents the supply from dropping below 21 V during load changes. Dual LEDs indicate status and error conditions at a glance. The compact 45 × 75 mm housing with screw terminals supports efficient panel mounting, backed by UL 508, UL 2367, UL 60950-1 and NEC-Class-2 certifications. Key Features - 24 V DC input - 4 × 6 A outputs - 20 A total output - Maintains minimum 21 V supply - LED status and error indicators - UL and NEC-Class-2 approvals Specifications Brand: PULS Model Number: PISA11.406 Product Type: protection module Power Source: 24 V/DC Weight (g): 140 Width (mm): 45 Height (mm): 75 LED Indicators: status and error Manufacturer Reference: PISA11.406 Input Voltage Min V: 18 Input Voltage Nom V: 24 Input Voltage Max V: 30 Output Channels: 4 Output Current Per Channel A: 6 Protection Voltage Level V: 21 Certifications: UL 508, UL 2367, UL 60950-1, NEC-Class-2
