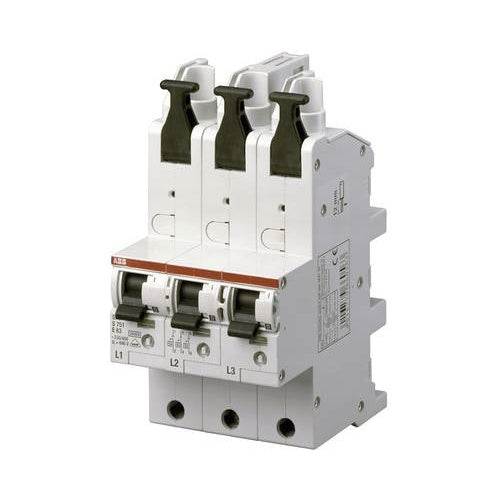

Description: S751/3-E 35 A main circuit breaker. Selective main circuit breaker for mounting on 4- or 5-pole 40 mm busbar systems with 12 x 5 mm² and 12 x 10 mm² conductors. Installation and connection of outgoing conductors are tool-free via spring terminals. Additional frame terminals allow feed-in to the busbar system with a conductor cross-section of up to 50 mm² or a feed-in current of up to 100 A. Technical data: Tripping characteristic: E; Operating voltage: 230/400 V AC; Contents: 1 pc.; Rated voltage: 230/400 V; Rated current: 35 A; Number of poles: 3; Fuse type (categorization): Miniature circuit breaker type: 35 A.
€184,49
