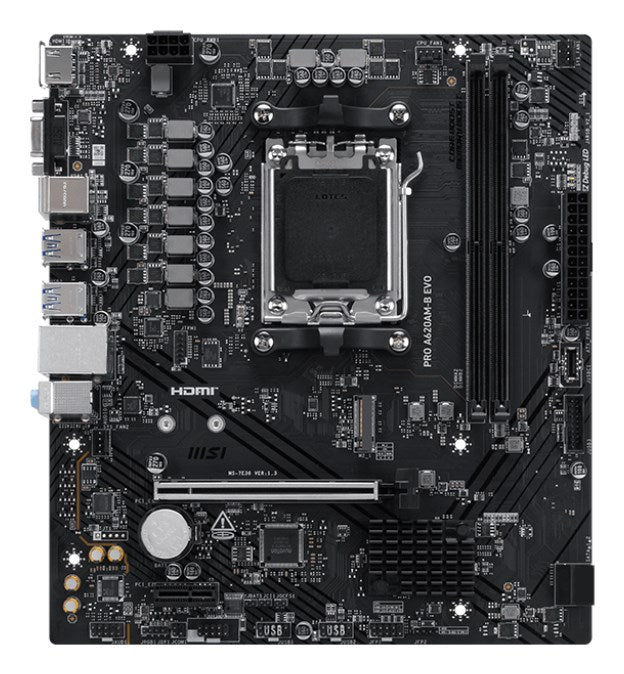

MSI Pro A620AM-B EVO AM5 Motherboard AMD Socket AM5 (Ryzen Zen4) 7E36-001R
Category Specification Chipset AMD A620A CPU Support AMD RyzenTM 9000 / 8000 / 7000 Series Desktop Processors Socket AM5 Memory Slots 2x DDR5, up to 128GB Memory Speed DDR5 6800 5600 (OC) MT/s DDR5 5600 4800 (JEDEC) MT/s Memory Features Dual-Channel, AMD EXPOTM, Non-ECC Unbuffered 1DPC 1R up to 6800+ MT/s 1DPC 2R up to 6000+ MT/s Supports CUDIMM (Clock Driver bypass only) Onboard Graphics 1x HDMI 2.1 (4K 60Hz) 1x VGA (up to 2048 1536) Expansion Slots 1x PCIe x16 (Gen 4.0 from CPU) 1x PCIe x1 (Gen 3.0 from Chipset) Audio Realtek ALC897, 7.1-Channel HD Audio Storage 1x M.2 PCIe 4.0 x4 (2280/2260) 2x SATA 6Gb/s RAID RAID 0, RAID 1 (SATA) USB Rear: 4x USB 5Gbps Type-A, 2x USB 2.0 Front: 2x USB 5Gbps Type-A, 1x USB-C, 4x USB 2.0 LAN Realtek RTL8125 2.5G LAN Internal Connectors ATX Power, CPU Power 1x CPU Fan, 2x System Fan RGB & ARGB headers TPM 2.0, COM Port, Front Panel Back Panel Ports HDMI, VGA, LAN USB 5Gbps, USB 2.0 Audio Jacks, Keyboard/Mouse Form Factor mATX 218mm 243.84mm Operating System Windows 11 64-bit, Windows 10 64-bit.
